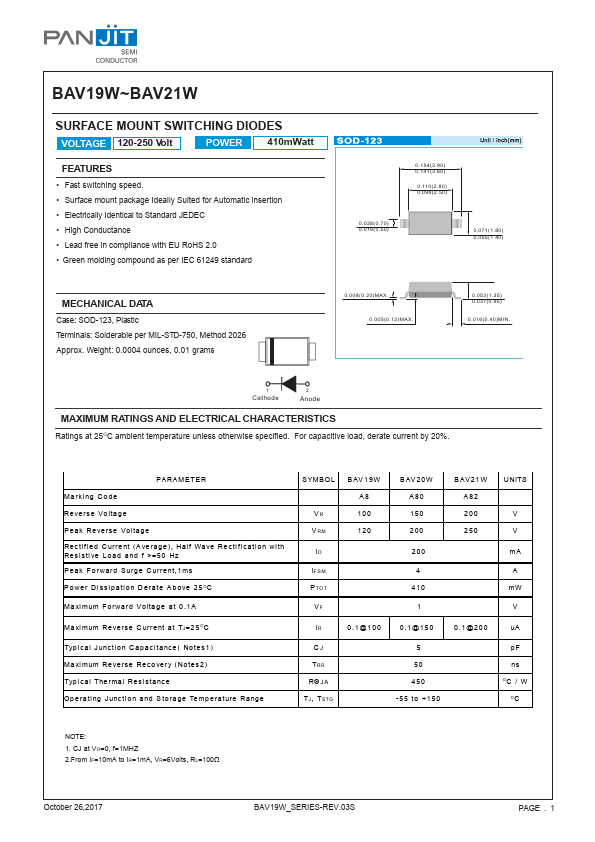

PANJIT International BAV19W
410mW SURFACE MOUNT SWITCHING DIODES
| Part No. | BAV19W |
|---|---|
| Datasheet | BAV19W Download |
| Manufacturer | PANJIT International |
| Description | 410mW SURFACE MOUNT SWITCHING DIODES |
| Buy | Stock & Price |
FEATURES
● Fast switching speed.● Surface mount package Ideally Suited for Automatic insertion
● Electrically Identical to Standard JEDEC
● High Conductance
● Lead free in compliance with EU RoHS 2.0
● Green molding compound as per IEC 61249 standard 0.154(3.90) 0.141(3.60) 0.110(2.80) 0.098(2.50) 0.028(0.70) 0.019(0.50) 0.071(1.80) 0.055(1.40)

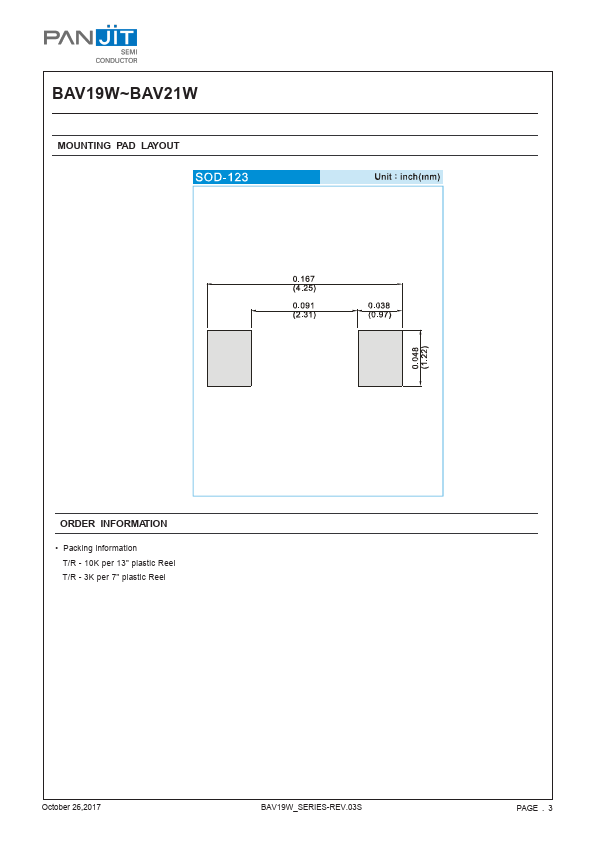

MECHANICAL DATA

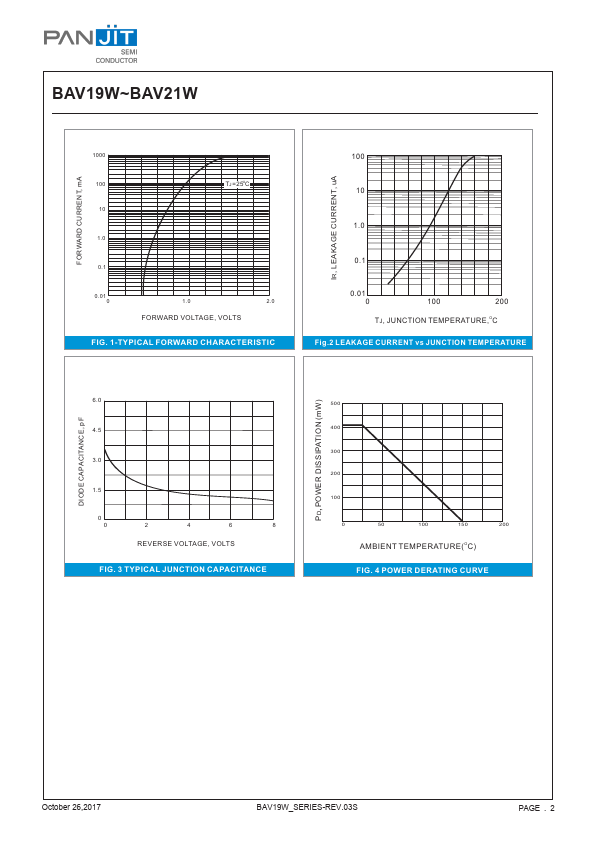

Case: SOD-123, Plastic Terminals: Solderable per MIL-STD-750, Method 2026 Approx. Weight: 0.0004 ounces, 0.01 grams 0.008(0.20)MAX. 0.005(0.12)MAX. 0.053(1.35) 0.037(0.95) 0.016(0.40)MIN. 1 Cathode 2 AnodeMAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25OC ambient temperature unless otherwise specified. For capacitive load, derate current by 20%. Marking Code Reverse Voltage PARAMETER Peak Reverse Voltage Recti fied C urrent (Average), Half Wave Recti fi cation wi th Resisti ve Load and f >=50 Hz Peak Forward Surge Current,1ms Power Dissipation Derate A bove 25OC Maximum Forward Voltage at 0.1A Maximum Reverse C urre...
