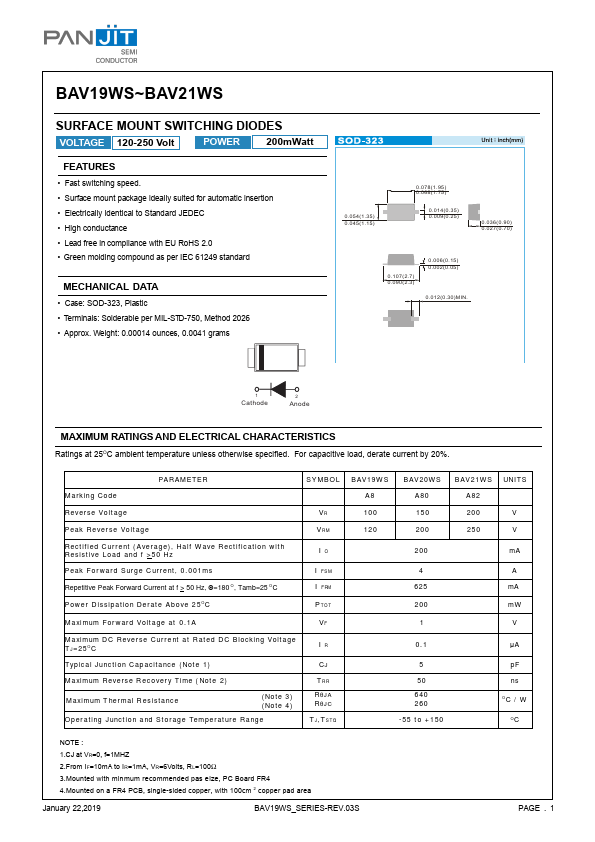

PANJIT International BAV19WS
200mW SURFACE MOUNT SWITCHING DIODES
| Part No. | BAV19WS |
|---|---|
| Datasheet | BAV19WS Download |
| Manufacturer | PANJIT International |
| Description | 200mW SURFACE MOUNT SWITCHING DIODES |
| Buy | Stock & Price |
FEATURES
● Fast switching speed.● Surface mount package ideally suited for automatic insertion
● Electrically identical to Standard JEDEC
● High conductance
● Lead free in compliance with EU RoHS 2.0
● Green molding compound as per IEC 61249 standard

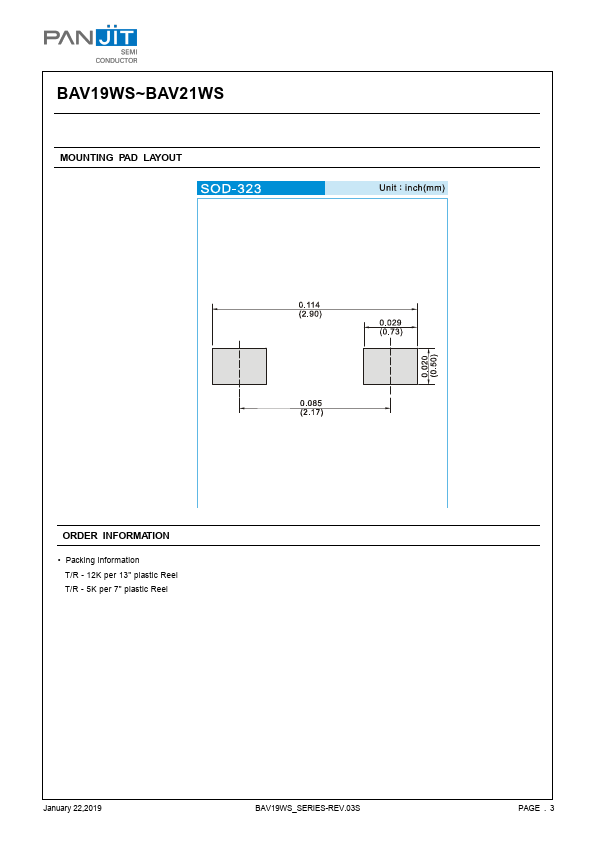

MECHANICAL DATA
● Case: SOD-323, Plastic● Terminals: Solderable per MIL-STD-750, Method 2026
● Approx. Weight: 0.00014 ounces, 0.0041 grams 0.054(1.35) 0.045(1.15) 0.078(1.95) 0.068(1.75) 0.014(0.35) 0.009(0.25) 0.036(0.90) 0.027(0.70) 0.107(2.7) 0.090(2.3) 0.006(0.15) 0.002(0.05) 0.012(0.30)MIN. 1 Cathode 2 Anode

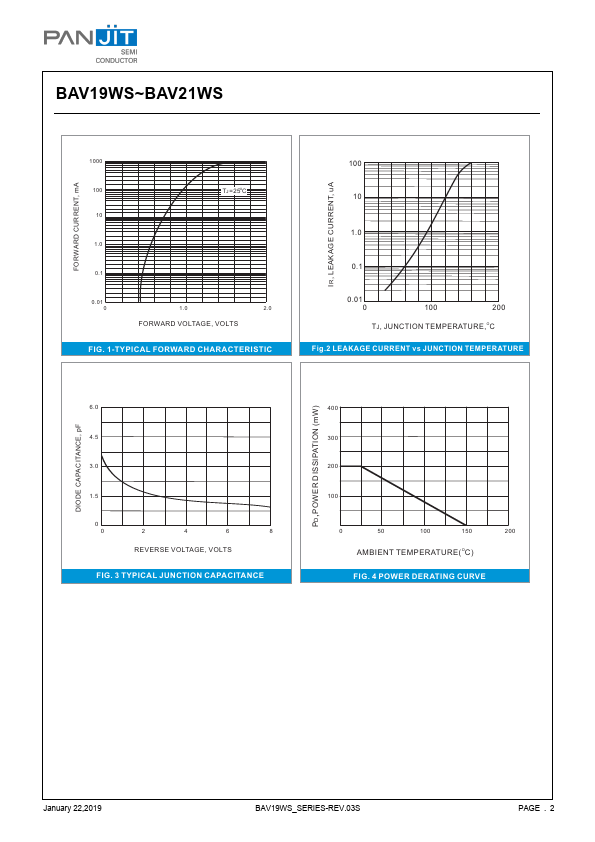

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25OC ambient temperature unless otherwise specified. For capacitive load, derate current by 20%. PARAMETER Marking Code Reverse Voltage Peak Reverse Voltage Rect ified Curr ent ( Aver age) , Half Wave Rectification w it h Resistive Load and f >50 Hz Peak For war d Surge C urr ent, 0.001ms Repetitive Peak Forward Current at f > 50 Hz, =180 O, Tamb=25 OC Power Dissipation...
