BAV20W Datasheet | PanJit Semiconductor

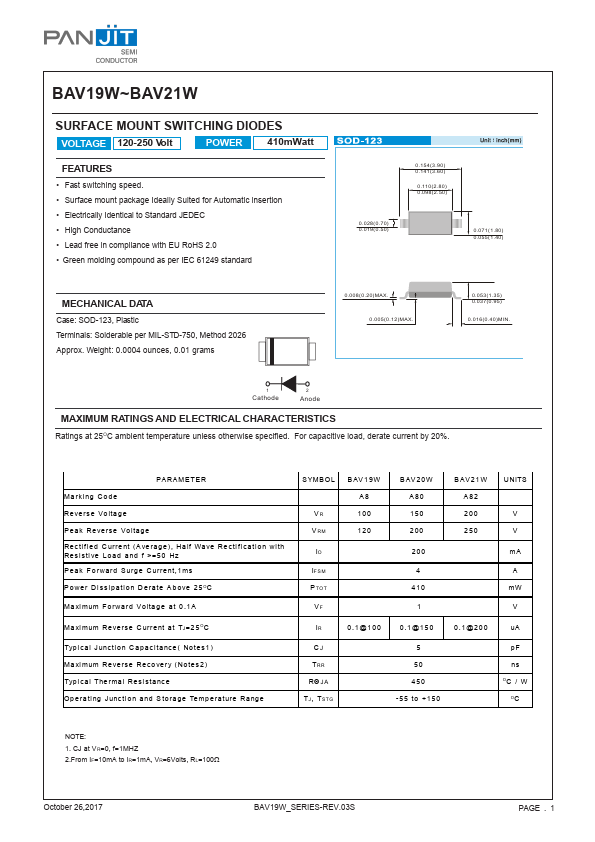

FEATURES - Fast switching speed. - Surface mount package Ideally Suited for Automatic insertion - Electrically Identical to Standard JEDEC - High Conductance - Lead free in pliance with EU Ro HS 2.0 - Green molding pound as per IEC 61249 standard 0.154(3.90) 0.141(3.60) 0.110(2.80) 0.098(2.50) 0.028(0.70) 0.019(0.50) 0.071(1.80) 0.055(1.40) MECHANICAL DATA Case: SOD-123, Plastic Terminals: Solderable per MIL-STD-750, Method 2026 Approx. Weight: 0.0004 ounces, 0.01 grams 0.008(0.20)MAX. 0.005(0.12)MAX. 0.053(1.35) 0.037(0.95) 0.016(0.40)MIN. Cathode Anode MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25OC ambient temperature unless otherwise specified. For capacitive load, derate current by 20%. Marking Code Reverse Voltage PARAMETER Peak Reverse Voltage Recti fied C urrent (Average), Half Wave Recti fi cation wi th Resisti ve Load and f >=50 Hz Peak Forward Surge Current,1ms Power Dissipation Derate A bove 25OC Maximum Forward Voltage at 0.1A Maximum Reverse C urrent at TJ=25OC Typ i ca l J uncti o n C a p a ci ta nce ( No te s1 ) Maximum Reverse Recovery (Notes2) Typ i ca l The rma l Re si sta nce Op e r a ti ng J unc ti o n a nd S to r a g e Te m p e ra t ur e Ra ng e S YMB OL VR V RM B AV 1 9W A8 100 120 B AV 2 0 W A80 150 200 BAV21W A82 200 250 UNITS 200 m A IF S M P...
