BAV99 Datasheet | PanJit Semiconductor

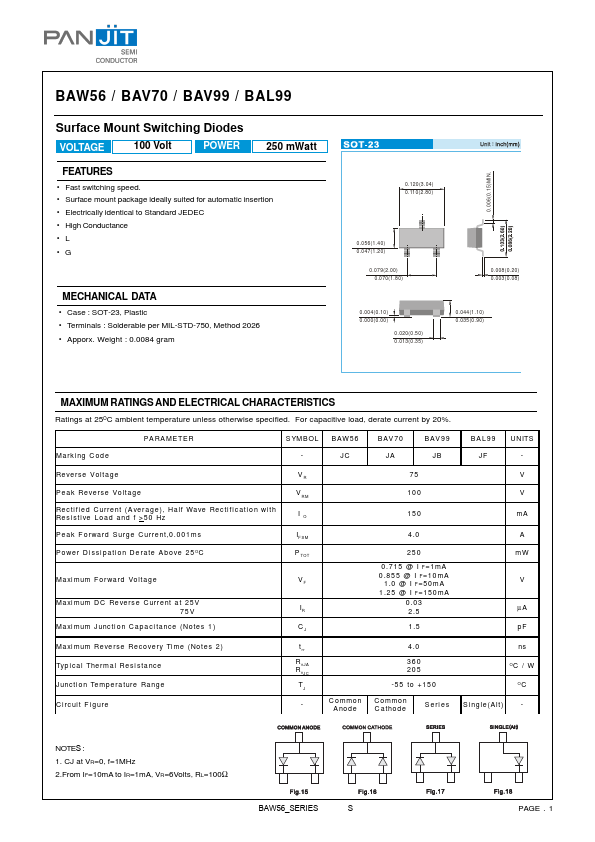

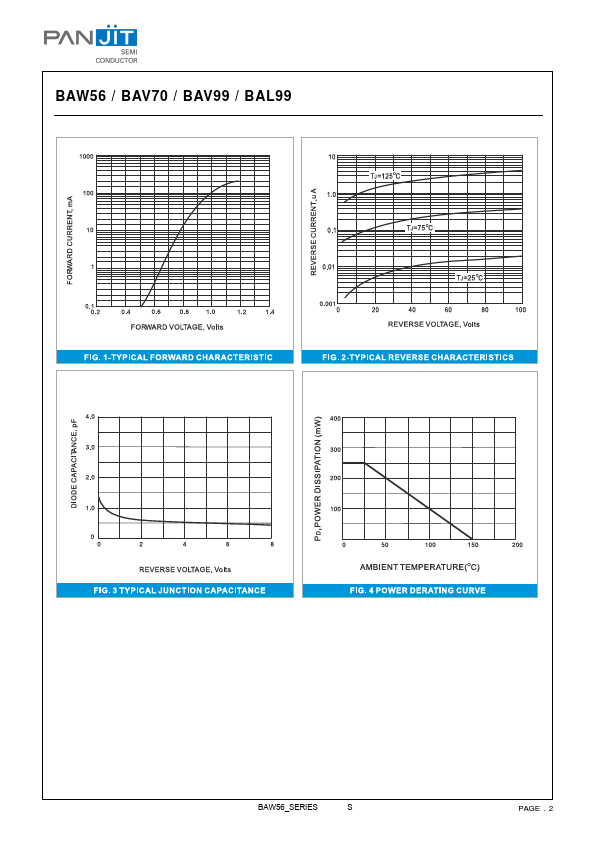

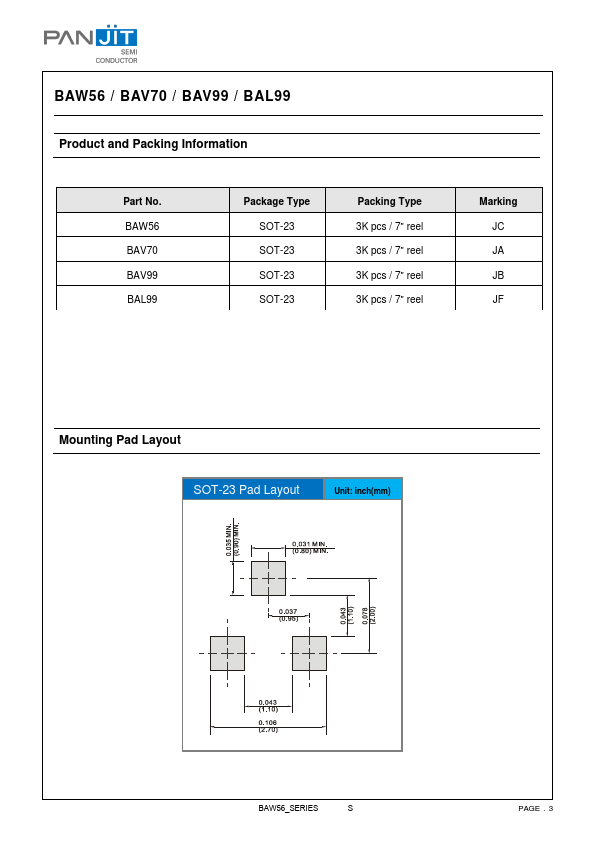

Features - Fast switching speed. - Surface mount package ideally suited for automatic insertion - Electrically identical to Standard JEDEC - High Conductance - Lead free in pliance with EU Ro HS 2.0 - Green molding pound as per IEC 61249 standard MECHANICAL DATA - Case : SOT-23, Plastic - Terminals : Solderable per MIL-STD-750, Method 2026 - Apporx. Weight : 0.0084 grams 0.120(3.04) 0.110(2.80) 0.056(1.40) 0.047(1.20) 0.079(2.00) 0.070(1.80) 0.004(0.10) 0.000(0.00) 0.020(0.50) 0.013(0.35) 0.008(0.20) 0.003(0.08) 0.044(1.10) 0.035(0.90) 0.006(0.15)MIN. MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25OC ambient temperature unless otherwise specified. For capacitive load, derate current by 20%. PARAMETER S YMB OL B AW5 6 BAV70 B A L 9 9 UNITS Marking Code - JC - Reverse Voltage Peak Reverse Voltage Recti fied Current (Average), Half Wave Recti ficati on wi th Resisti ve Load and f >50 Hz Peak Forward Surge Current,0.001ms Power Dissipation Derate Above 25OC Maxi mum Forward Voltage Maxi mum DC Reverse C urrent at 25V...
