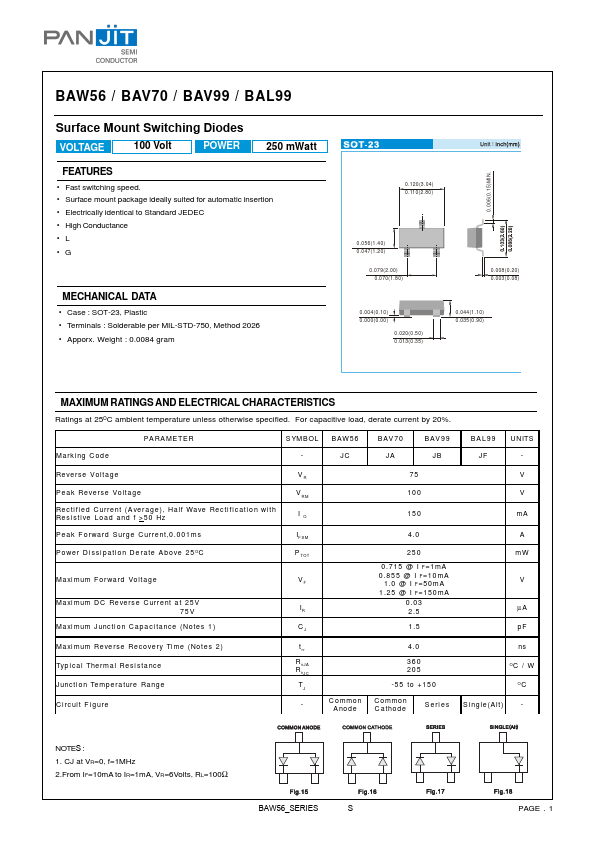

BAW56 Overview
BAW56 / BAV70 / BAV99 / BAL99 Surface Mount Switching Diodes VOLTAGE 100 Volt POWER 250 mWatt.
BAW56 Key Features
- Fast switching speed
- Surface mount package ideally suited for automatic insertion
- Electrically identical to Standard JEDEC
- High Conductance
- Lead free in pliance with EU RoHS 2.0
- Green molding pound as per IEC 61249 standard
- Case : SOT-23, Plastic
- Terminals : Solderable per MIL-STD-750, Method 2026
- Apporx. Weight : 0.0084 grams
- Reverse Voltage Peak Reverse Voltage Recti fied Current (Average), Half Wave Recti ficati on wi th Resisti ve Load and f
