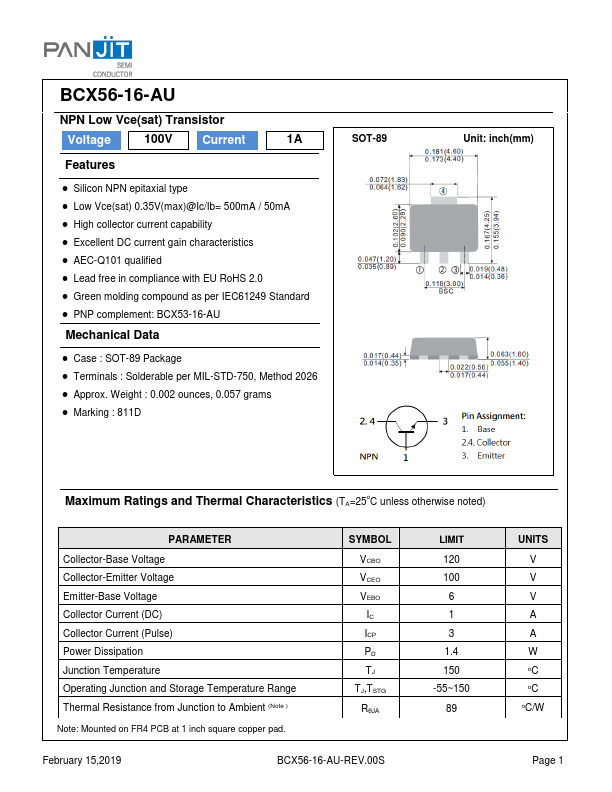

BCX56-16-AU
Features
- Silicon NPN epitaxial type
- Low Vce(sat) 0.35V(max)@Ic/Ib= 500m A / 50m A
- High collector current capability
- Excellent DC current gain characteristics
- AEC-Q101 qualified
- Lead free in pliance with EU Ro HS 2.0
- Green molding pound as per IEC61249 Standard
- PNP plement: BCX53-16-AU
Mechanical Data
- Case : SOT-89 Package
- Terminals : Solderable per MIL-STD-750, Method 2026
- Approx. Weight : 0.002 ounces, 0.057 grams
- Marking : 811D
SOT-89
Unit: inch(mm)
Maximum Ratings and Thermal Characteristics (TA=25o C unless otherwise noted)
PARAMETER Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current (DC) Collector Current (Pulse) Power Dissipation Junction Temperature Operating Junction and Storage Temperature Range Thermal Resistance from Junction to Ambient (Note )
Note: Mounted on FR4 PCB at 1 inch square copper pad.
SYMBOL VCBO VCEO VEBO IC ICP PD TJ
TJ,TSTG RθJA
February 15,2019
BCX56-16-AU-REV.00S
LIMIT 120 100
6 1 3 1.4 150...
