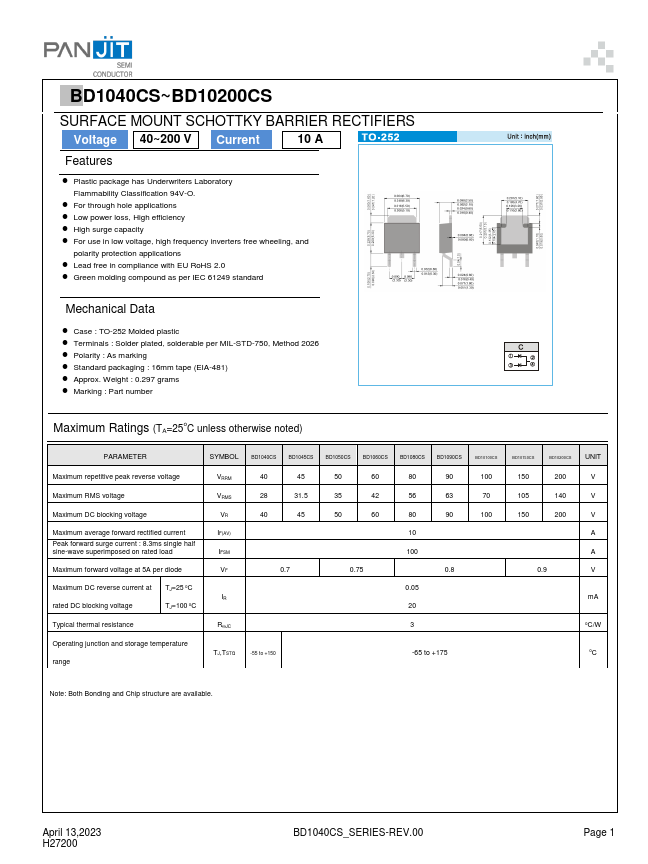

Datasheet Summary
BD1040CS~BD10200CS
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
Voltage 40~200 V Current
10 A
Features
- Plastic package has Underwriters Laboratory Flammability Classification 94V-O.
- For through hole applications
- Low power loss, High efficiency
- High surge capacity
- For use in low voltage, high frequency inverters free wheeling, and polarity protection applications
- Lead free in pliance with EU RoHS 2.0
- Green molding pound as per IEC 61249 standard
Mechanical Data
- Case : TO-252 Molded plastic
- Terminals : Solder plated, solderable per MIL-STD-750, Method 2026
- Polarity : As marking
- Standard packaging : 16mm tape (EIA-481)
- Approx. Weight : 0.297 grams
- Marking :...
