MBR110AFC Datasheet Surface Mount Schottky Barrier Rectifier

Manufacturer: PanJit Semiconductor

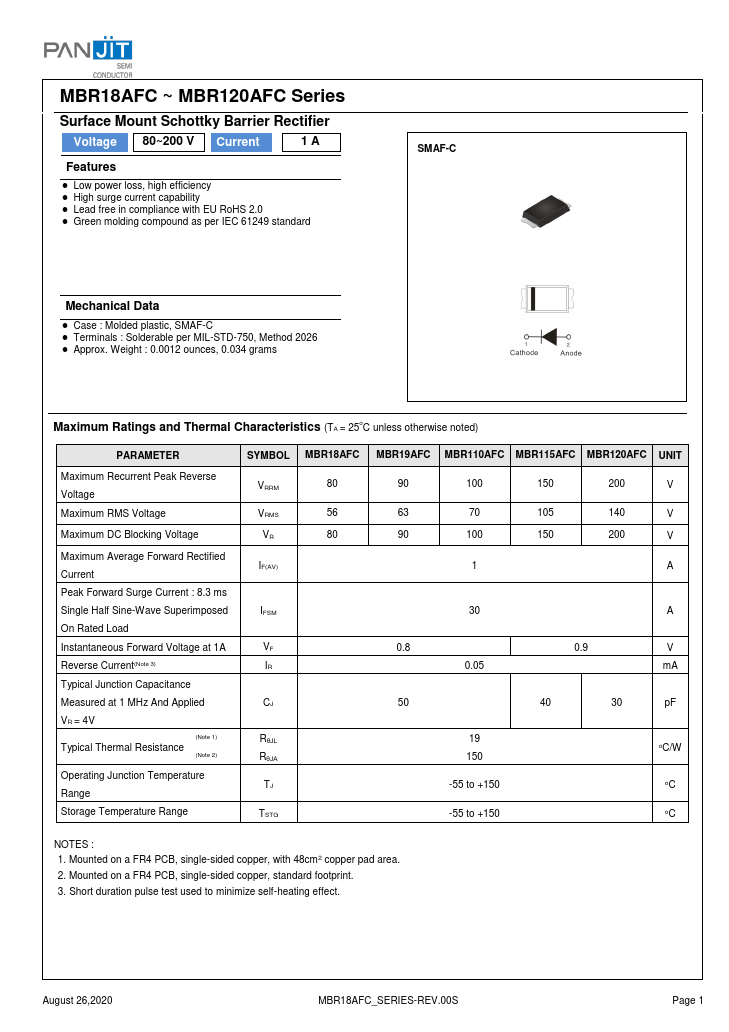

Overview: MBR18AFC ~ MBR120AFC Series Surface Mount Schottky Barrier Rectifier Voltage 80~200 V Current.

This datasheet includes multiple variants, all published together in a single manufacturer document.

Key Features

  • Low power loss, high efficiency.
  • High surge current capability.
  • Lead free in compliance with EU RoHS 2.0.
  • Green molding compound as per IEC 61249 standard SMAF-C Mechanical Data.
  • Case : Molded plastic, SMAF-C.
  • Terminals : Solderable per MIL-STD-750, Method 2026.
  • Approx. Weight : 0.0012 ounces, 0.034 grams Maximum Ratings and Thermal Characteristics (TA = 25oC unless otherwise noted).
