MBR115AFC Datasheet Surface Mount Schottky Barrier Rectifier

Manufacturer: PanJit Semiconductor

Overview: MBR18AFC ~ MBR120AFC Series Surface Mount Schottky Barrier Rectifier Voltage 80~200 V Current.

This datasheet includes multiple variants, all published together in a single manufacturer document.

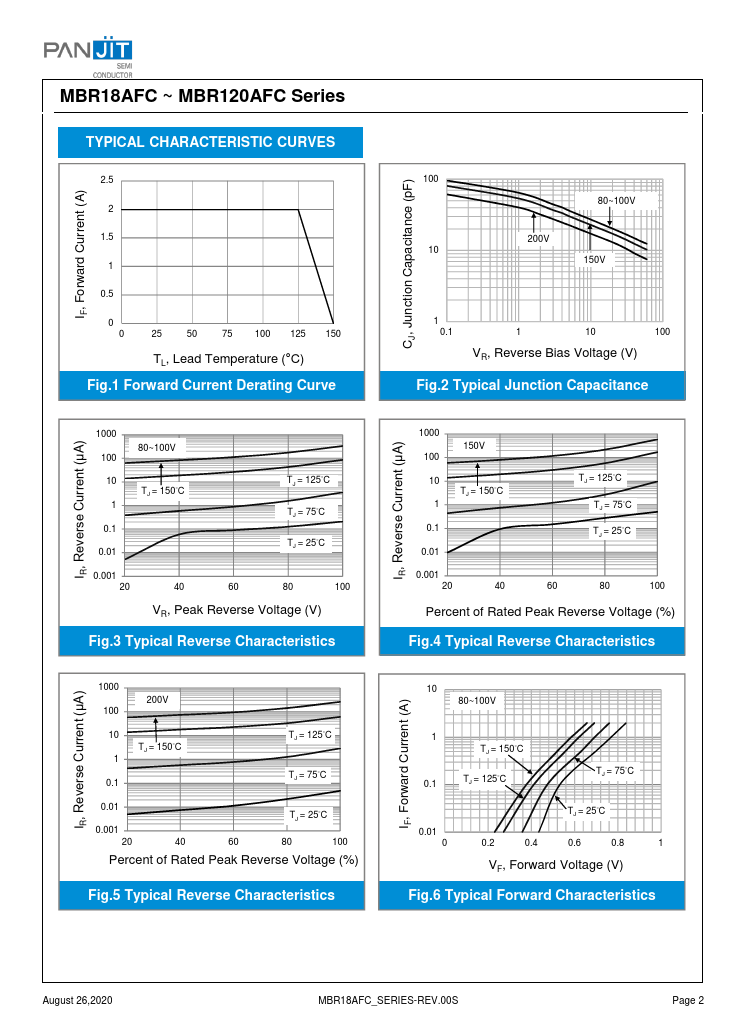

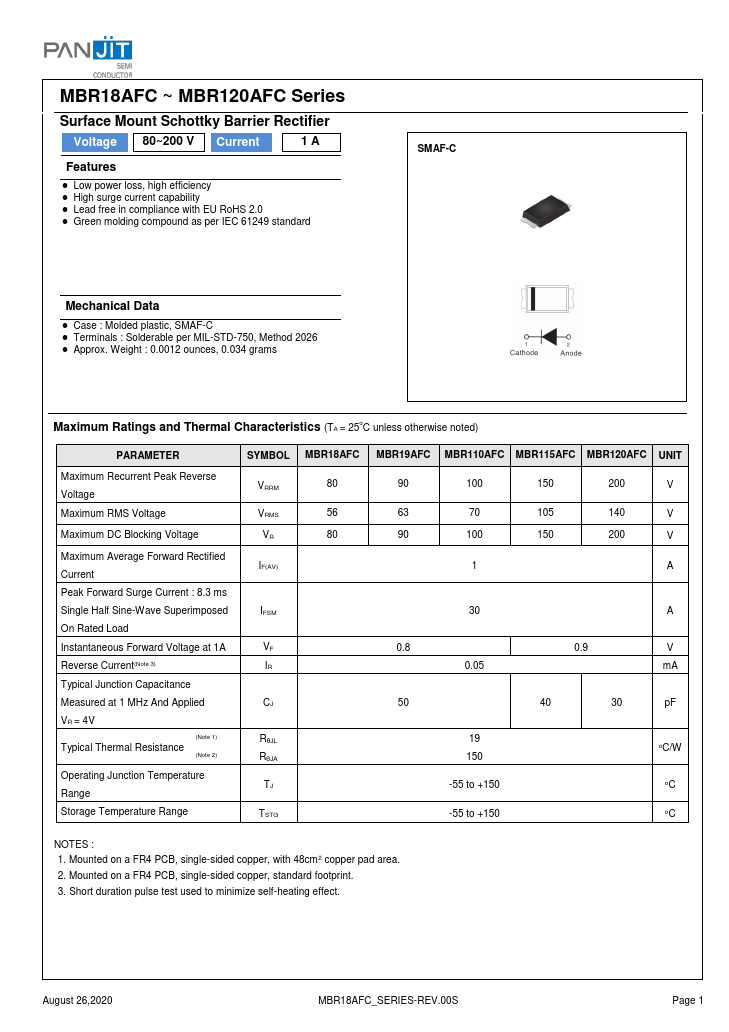

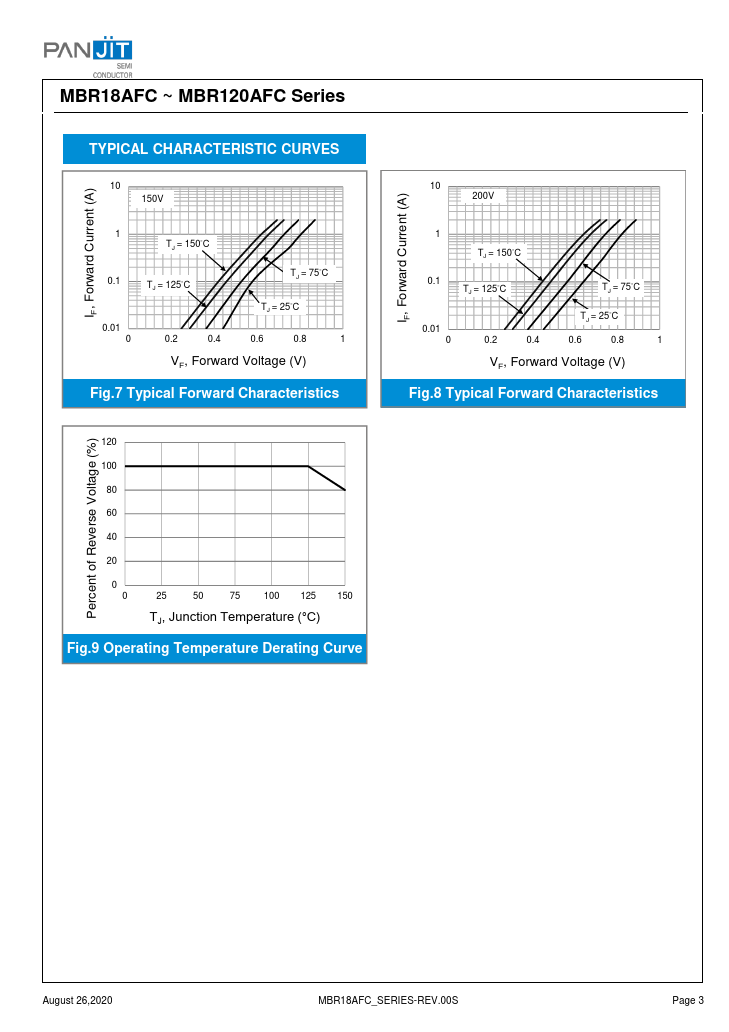

MBR115AFC datasheet preview

Datasheet Details

Part number	MBR115AFC
Manufacturer	PanJit Semiconductor
File Size	370.77 KB
Description	Surface Mount Schottky Barrier Rectifier
Datasheet	MBR115AFC MBR18AFC Datasheet (PDF)

Key Features

Low power loss, high efficiency.
High surge current capability.
Lead free in compliance with EU RoHS 2.0.
Green molding compound as per IEC 61249 standard SMAF-C Mechanical Data.
Case : Molded plastic, SMAF-C.
Terminals : Solderable per MIL-STD-750, Method 2026.
Approx. Weight : 0.0012 ounces, 0.034 grams Maximum Ratings and Thermal Characteristics (TA = 25oC unless otherwise noted).
