MBR140
MBR140 is Schottky Barrier Rectifiers manufactured by PanJit Semiconductor.
MBR140~MBR1200

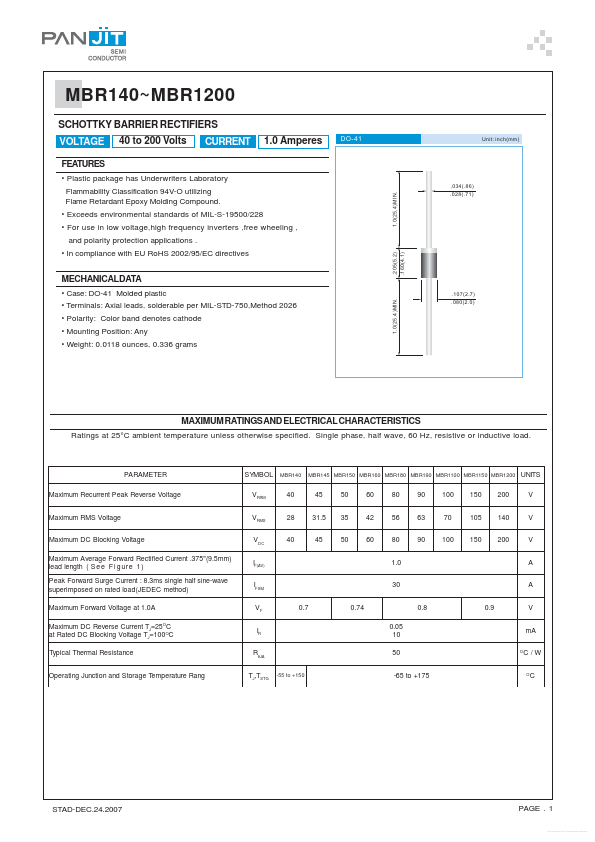

SCHOTTKY BARRIER RECTIFIERS VOLTAGE 40 to 200 Volts CURRENT 1.0 Amperes
Features
- Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding pound.
- Exceeds environmental standards of MIL-S-19500/228
- For use in low voltage,high frequency inverters ,free wheeling , and polarity protection applications .
- In pliance with EU Ro HS 2002/95/EC directives
DO-41
MECHANICAL DATA
- Case: DO-41 Molded plastic
- Terminals: Axial leads, solderable per MIL-STD-750,Method 2026
- Polarity: Color band denotes cathode
- Mounting Position: Any
- Weight: 0.0118 ounces, 0.336 grams
1.0(25.4)MIN.
.205(5.2) .160(4.1)
1.0(25.4)MIN.
Unit: inch(mm) .034(.86) .028(.71)
.107(2.7) .080(2.0)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load.
PARAMETER
SYMBOL MBR140 MBR145 MBR150 MBR160 MBR180 MBR190 MBR1100 MBR1150 MBR1200 UNITS
Maximum Recurrent Peak Reverse Voltage
VRRM
50 60
90 100 150 200
Maximum RMS Voltage
VRMS
28 31.5 35 42
105...
