MBR18AFC Datasheet Surface Mount Schottky Barrier Rectifier

Manufacturer: PanJit Semiconductor

Overview: MBR18AFC ~ MBR120AFC Series Surface Mount Schottky Barrier Rectifier Voltage 80~200 V Current.

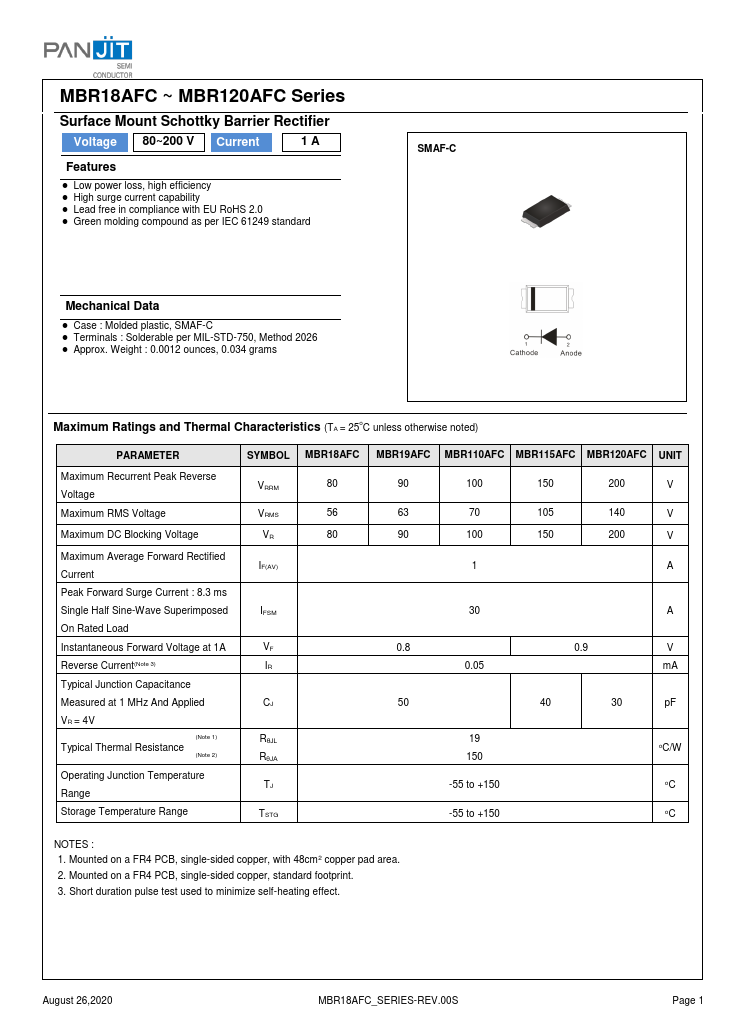

MBR18AFC datasheet preview

Datasheet Details

Part number	MBR18AFC
Manufacturer	PanJit Semiconductor
File Size	370.77 KB
Description	Surface Mount Schottky Barrier Rectifier
Datasheet	MBR18AFC-PANJIT.pdf

Key Features

Low power loss, high efficiency.
High surge current capability.
Lead free in compliance with EU RoHS 2.0.
Green molding compound as per IEC 61249 standard SMAF-C Mechanical Data.
Case : Molded plastic, SMAF-C.
Terminals : Solderable per MIL-STD-750, Method 2026.
Approx. Weight : 0.0012 ounces, 0.034 grams Maximum Ratings and Thermal Characteristics (TA = 25oC unless otherwise noted).
