MBR6100F
MBR6100F is SCHOTTKY BARRIER RECTIFIERS manufactured by PanJit Semiconductor.
- Part of the MBR640F comparator family.
- Part of the MBR640F comparator family.

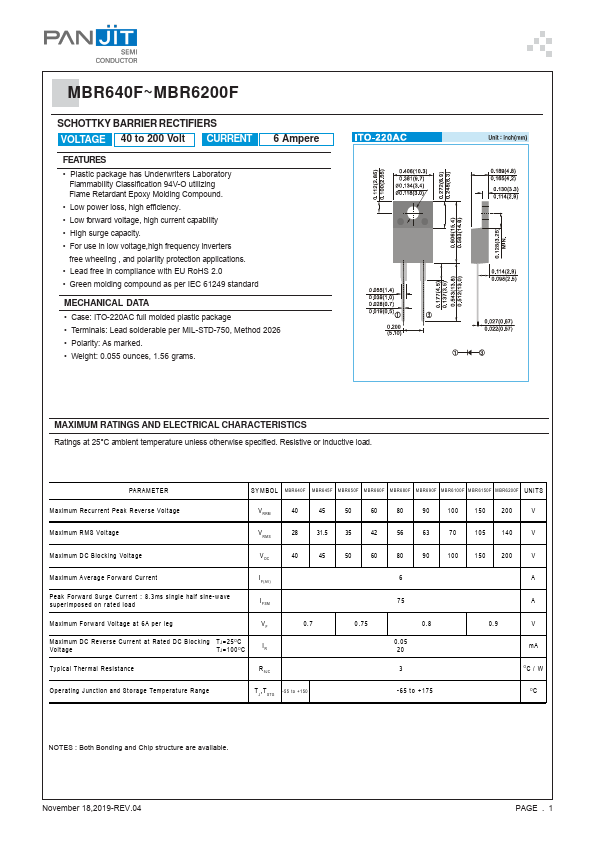

MBR640F~MBR6200F
SCHOTTKY BARRIER RECTIFIERS VOLTAGE 40 to 200 Volt CURRENT
6 Ampere
Features
- Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding pound.
- Low power loss, high efficiency.
- Low forward voltage, high current capability
- High surge capacity.
- For use in low voltage,high frequency inverters free wheeling , and polarlity protection applications.
- Lead free in pliance with EU Ro HS 2.0
- Green molding pound as per IEC 61249 standard
MECHANICAL DATA
- Case: ITO-220AC full molded plastic package
- Terminals: Lead solderable per MIL-STD-750, Method 2026
- Polarity: As marked.
- Weight: 0.055 ounces, 1.56 grams.
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Resistive or inductive load.
PA R A M E T E R
SY M BO L MBR640F MBR645F MBR650F MBR660F MBR680F MBR690F MBR6100F MBR6150F MBR6200F UNI TS
Maximum Recurrent Peak Reverse Voltage
V RRM
100 150 200
Maximum RMS Voltage
VRMS
31.5 35
105 140
Maximum DC Blocking Voltage
100 150 200
Maximum Average Forward Current
I...
