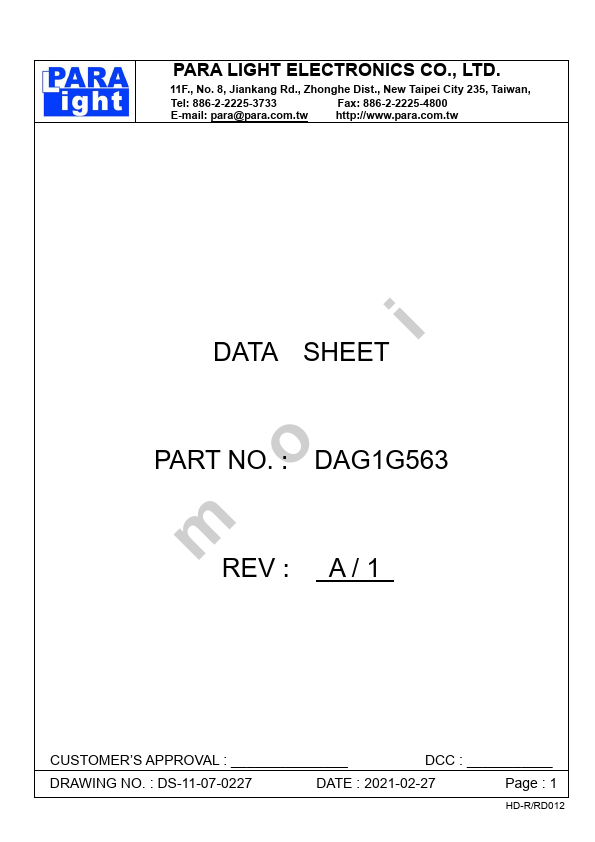

DAG1G563 Datasheet | PARA LIGHT

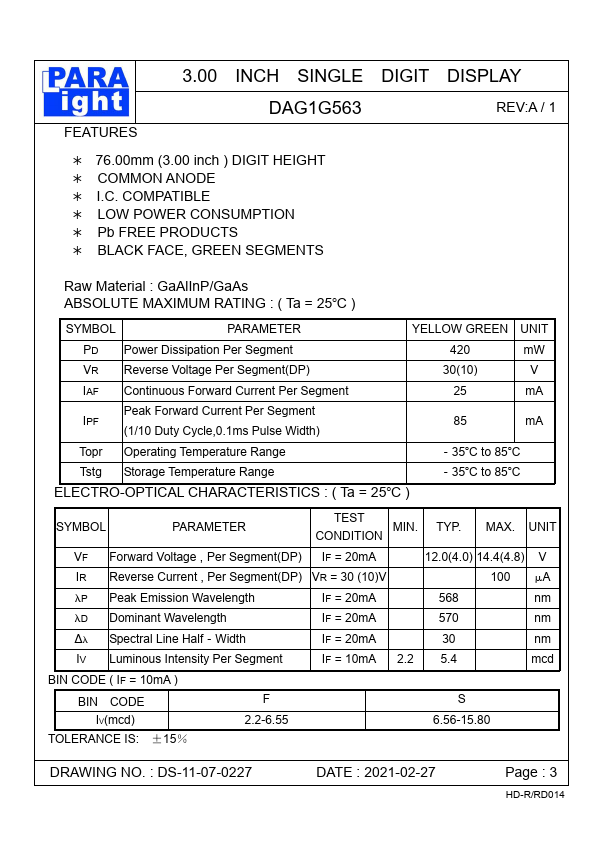

FEATURES REV:A / 1  76.00mm (3.00 inch ) DIGIT HEIGHT  MON ANODE  I.C. PATIBLE  LOW POWER CONSUMPTION  Pb FREE PRODUCTS  BLACK FACE, GREEN SEGMENTS Raw Material : Ga Al In P/Ga As ABSOLUTE MAXIMUM RATING : ( Ta = 25C ) SYMBOL PARAMETER YELLOW GREEN UNIT PD Power Dissipation Per Segment 420 m W VR Reverse Voltage Per Segment(DP) 30(10) IAF Continuous Forward Current Per Segment 25 m A Peak Forward Current Per Segment IPF (1/10 Duty Cycle,0.1ms Pulse Width) 85 m A Topr Operating Temperature Range －35C to 85C Tstg Storage Temperature Range ELECTRO-OPTICAL CHARACTERISTICS : ( Ta = 25C ) －35C to 85C SYMBOL PARAMETER TEST CONDITION MIN. TYP. MAX. UNIT VF Forward Voltage , Per Segment(DP) IF = 20m A 12.0(4.0) 14.4(4.8) V IR Reverse Current , Per Segment(DP) VR = 30 (10)V 100 A - P Peak Emission Wavelength IF = 20m A 568 nm - D Dominant Wavelength IF = 20m A 570 nm Δ- Spectral Line Half－Width IF = 20m...
