DSA52LR201G - FIVE DIGITS DISPLAY

Key Features

  •  6.80mm (0.27 inch ) DIGIT HEIGHT  COMMON ANODE  I. C.

📥 Download Datasheet

Datasheet Details

Part number DSA52LR201G
Manufacturer PARA LIGHT
File Size 542.48 KB
Description FIVE DIGITS DISPLAY
Datasheet download datasheet DSA52LR201G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DSA5001 Silicon PNP epitaxial planar type Panasonic
DSA50C100HB Schottky Diode IXYS
DSA50C100HB 2 x 25A High-Performance Schottky Diode Littelfuse
DSA50C100QB 2x 25A Schottky Rectifier Diode Littelfuse
DSA50C100QB Schottky Diode IXYS

Other Datasheets by PARA LIGHT

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

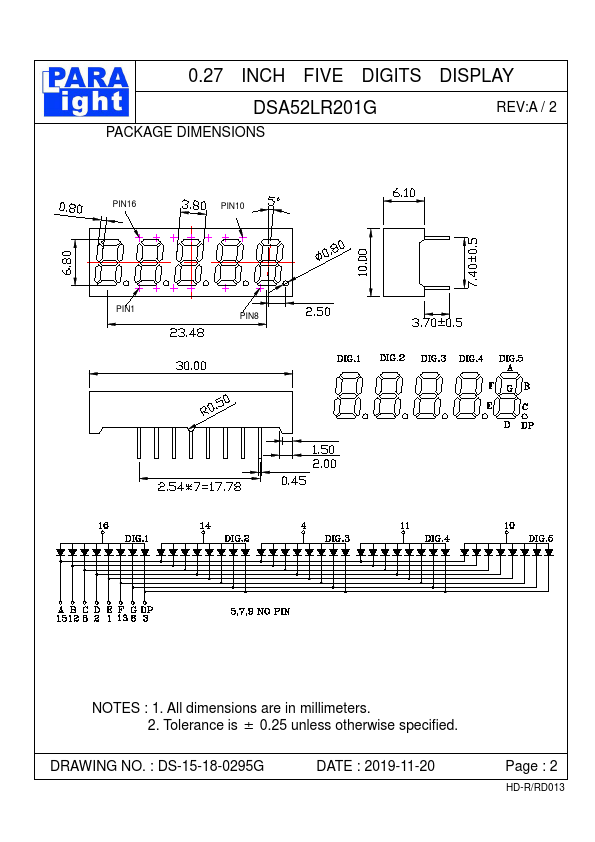

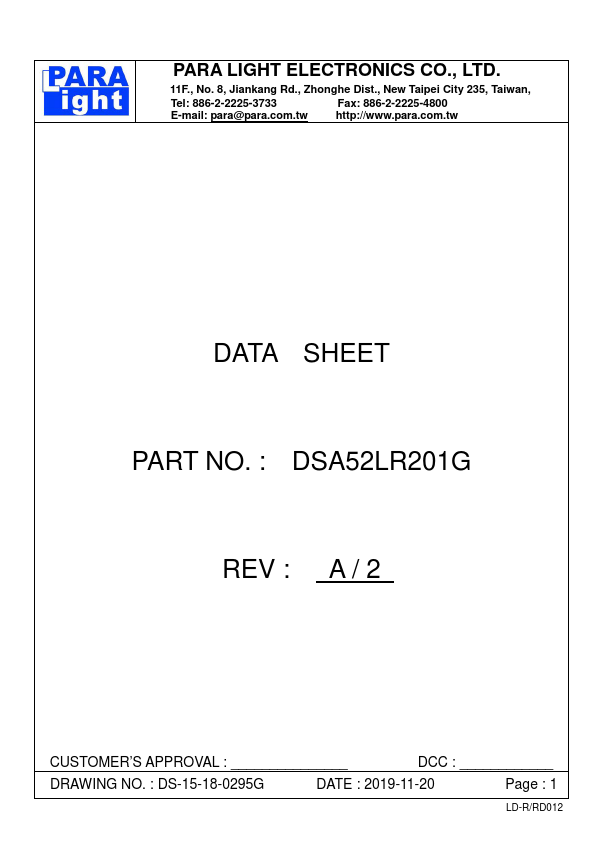

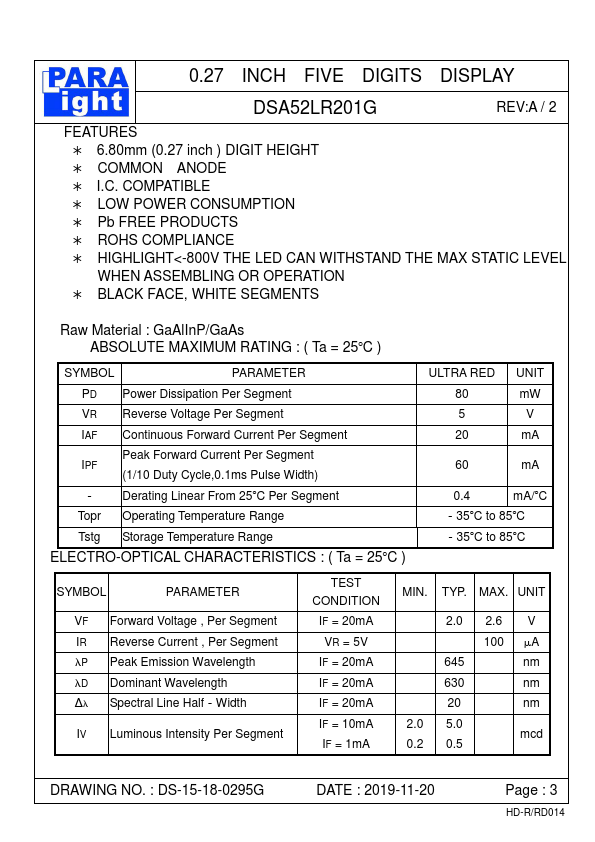

PARA LIGHT ELECTRONICS CO., LTD. 11F., No. 8, Jiankang Rd., Zhonghe Dist., New Taipei City 235, Taiwan, Tel: 886-2-2225-3733 E-mail: para@para.com.tw Fax: 886-2-2225-4800 http://www.para.com.tw DATA SHEET PART NO. : DSA52LR201G REV : A / 2 CUSTOMER’S APPROVAL : _______________ DCC : ____________ DRAWING NO. : DS-15-18-0295G DATE : 2019-11-20 Page : 1 LD-R/RD012 0.27 INCH FIVE DIGITS DISPLAY DSA52LR201G PACKAGE DIMENSIONS REV:A / 2 PIN16 PIN10 PIN1 PIN8 NOTES : 1. All dimensions are in millimeters. 2. Tolerance is  0.25 unless otherwise specified. DRAWING NO. : DS-15-18-0295G DATE : 2019-11-20 Page : 2 HD-R/RD013 0.27 INCH FIVE DIGITS DISPLAY DSA52LR201G REV:A / 2 FEATURES  6.80mm (0.27 inch ) DIGIT HEIGHT  COMMON ANODE  I.C.
