Datasheet Details
| Part number | L-C150ECT |
|---|---|
| Manufacturer | PARA LIGHT |
| File Size | 318.32 KB |
| Description | SMD CHIP LED |
| Download | L-C150ECT Download (PDF) |
|
|
|

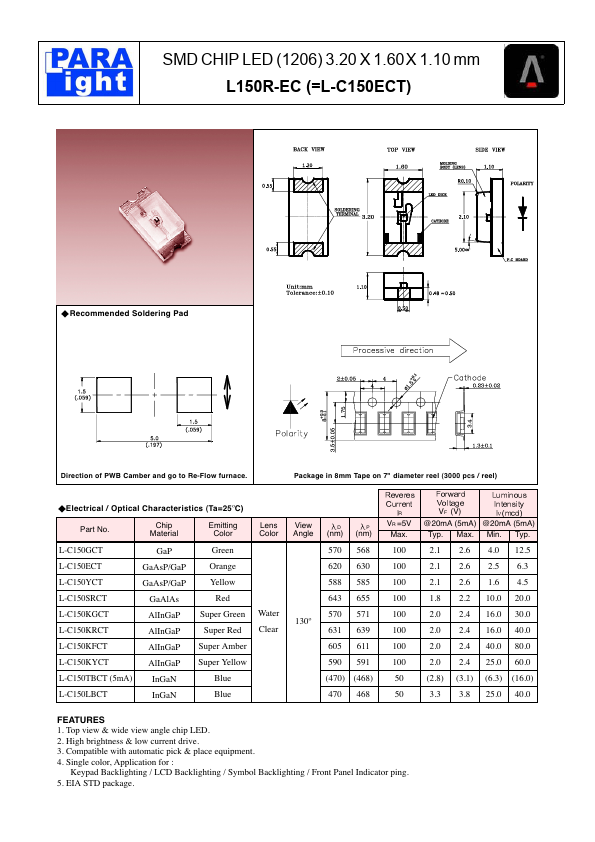

Overview: SMD CHIP LED (1206) 3.20 X 1.60X 1.10 mm L150R-EC (=L-C150ECT) Recommended Soldering Pad Direction of PWB Camber and go to Re-Flow furnace. Package in 8mm Tape on 7" diameter reel (3000 pcs / reel) Electrical / Optical Characteristics (Ta=25ºC) Part No. Chip Material Emitting Color Lens Color L-C150GCT GaP Green L-C150ECT GaAsP/GaP Orange L-C150YCT GaAsP/GaP Yellow L-C150SRCT L-C150KGCT L-C150KRCT GaAlAs AlInGaP AlInGaP Red Super Green Super Red Water Clear L-C150KFCT AlInGaP Super Amber L-C150KYCT AlInGaP Super Yellow L-C150TBCT (5mA) InGaN Blue L-C150LBCT InGaN Blue View D P Angle (nm) (nm) 570 568 620 630 588 585 643 655 570 571 130º 631 639 605 611 590 591 (470) (468) 470 468 R VR =5V Max. 100 100 100 100 100 100 100 100 50 50 VF (V) @20mA (5mA) @20mA (5mA) Typ. Max. Min. Typ. 2.1 2.6 4.0 12.5 2.1 2.6 2.5 6.3 2.1 2.6 1.6 4.5 1.8 2.2 10.0 20.0 2.0 2.4 16.0 30.0 2.0 2.4 16.0 40.0 2.0 2.4 40.0 80.0 2.0 2.4 25.0 60.0 (2.8) (3.1) (6.3) (16.0) 3.3 3.8 25.0 40.
Download the L-C150ECT datasheet PDF. This datasheet also includes the L-C150GCT variant, as both parts are published together in a single manufacturer document.
| Part number | L-C150ECT |
|---|---|
| Manufacturer | PARA LIGHT |
| File Size | 318.32 KB |
| Description | SMD CHIP LED |
| Download | L-C150ECT Download (PDF) |
|
|
|
