L-C150GCT - SMD CHIP LED

Features

  • 1. Top view & wide view angle chip LED. 2. High brightness & low current drive. 3. Compatible with automatic pick & place equipment. 4. Single color,.

📥 Download Datasheet

Datasheet Details

Part number L-C150GCT
Manufacturer PARA LIGHT
File Size 318.32 KB
Description SMD CHIP LED
Datasheet download datasheet L-C150GCT Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
L-C150KGCT SURFACE MOUNT DEVICE LED HB Electronic Components
L-C150KRCT SURFACE MOUNT DEVICE LED HB Electronic Components
L-C191IR1CT SURFACE MOUNT DEVICE LED Para Light Electronics
L-C295KGKYCT SMD LED PARA LIGHT ELECTRONICS

Other Datasheets by PARA LIGHT

Part Number Description
L-C150ECT SMD CHIP LED
L-C150JGCT-U1 SURFACE MOUNT DEVICE LED
L-C150JRCT-U1 SURFACE MOUNT DEVICE LED
L-C150JYCT SURFACE MOUNT DEVICE LED
L-C150KFCT SMD CHIP LED

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

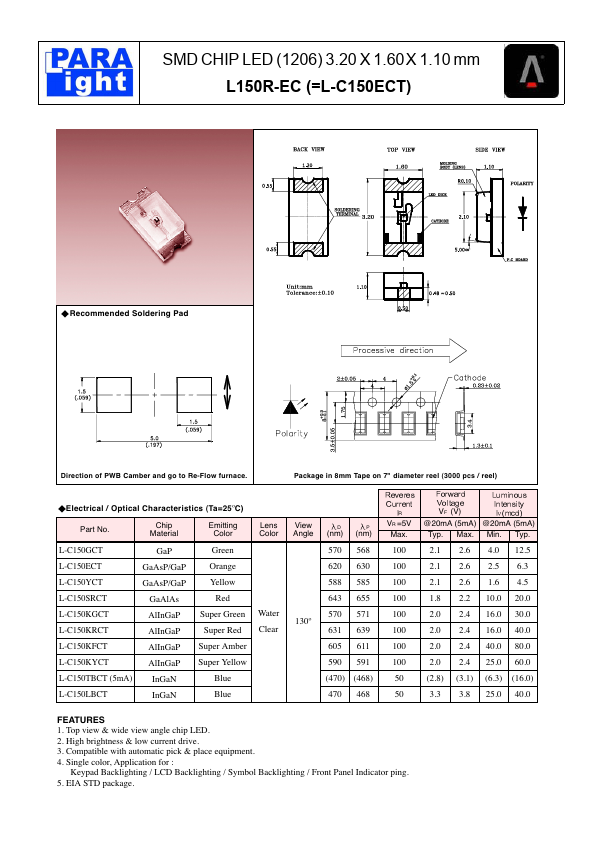

SMD CHIP LED (1206) 3.20 X 1.60X 1.10 mm L150R-EC (=L-C150ECT) Recommended Soldering Pad Direction of PWB Camber and go to Re-Flow furnace. Package in 8mm Tape on 7" diameter reel (3000 pcs / reel) Electrical / Optical Characteristics (Ta=25ºC) Part No. Chip Material Emitting Color Lens Color L-C150GCT GaP Green L-C150ECT GaAsP/GaP Orange L-C150YCT GaAsP/GaP Yellow L-C150SRCT L-C150KGCT L-C150KRCT GaAlAs AlInGaP AlInGaP Red Super Green Super Red Water Clear L-C150KFCT AlInGaP Super Amber L-C150KYCT AlInGaP Super Yellow L-C150TBCT (5mA) InGaN Blue L-C150LBCT InGaN Blue View D P Angle (nm) (nm) 570 568 620 630 588 585 643 655 570 571 130º 631 639 605 611 590 591 (470) (468) 470 468 R VR =5V Max.
