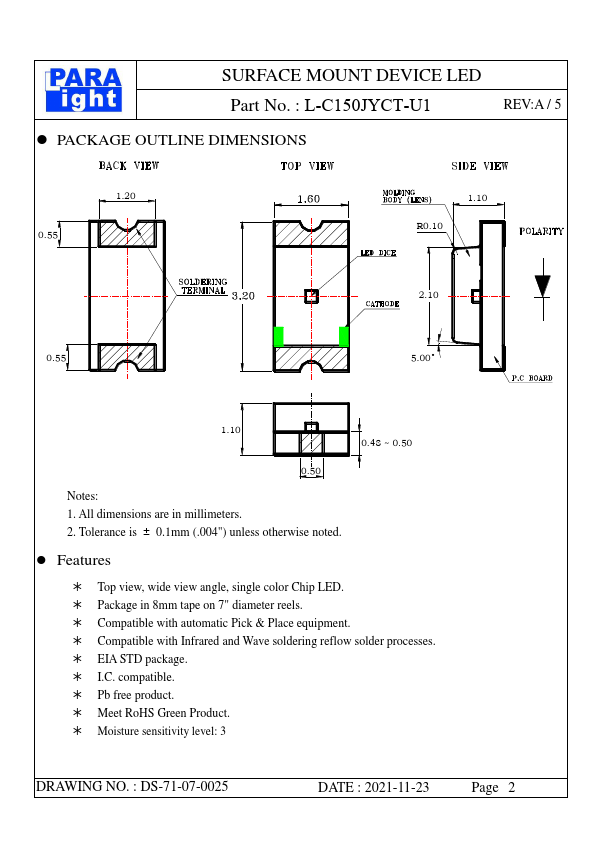

Features  Top view, wide view angle, single color Chip LED.  Package in 8mm tape on 7" diameter reels.  patible with automatic Pick & Place equipment.  patible with Infrared and Wave soldering reflow solder processes.  EIA STD package.  I.C. patible.  Pb free product.  Meet Ro HS Green Product.  Moisture sensitivity level: 3 DRAWING NO. : DS-71-07-0025 DATE : 2021-11-23 Page 2 SURFACE MOUNT DEVICE LED Part No. : L-C150JYCT-U1 REV:A / 5 - Chip Materials  Dice Material : Al In Ga P  Light Color : Super Yellow  Lens Color : Water Clear - Absolute Maximum Ratings(Ta=25℃) Symbol PD IF VR ESD Parameter Power Dissipation Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width) Continuous Forward Current Reverse Voltage Electrostatic Discharge Threshold(HBM)Note A Topr Operating Temperature Range Rating Unit 75 m W 80 m A 30 m A -40 ~ +85 ℃ Tstg Storage Temperature Range -40 ~ +85 ℃ Note A : HBM : Human Body Model. Seller gives no other assurances regarding the ability of to withstand ESD. - Electro-Optical Characteristics(Ta=25℃) Parameter Symbol Min. Typ. Max. Unit Test Condition Luminous Intensity 45.0 80.0 180.0 mcd IF=20m A Viewing Angle 2θ1/2 130 deg Note...
