L-C150YCT - SMD CHIP LED

Download the L-C150YCT datasheet PDF. This datasheet also covers the L-C150GCT variant, as both devices belong to the same smd chip led family and are provided as variant models within a single manufacturer datasheet.

Features

  • 1. Top view & wide view angle chip LED. 2. High brightness & low current drive. 3. Compatible with automatic pick & place equipment. 4. Single color,.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (L-C150GCT-ParaLightElectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number L-C150YCT
Manufacturer PARA LIGHT
File Size 318.32 KB
Description SMD CHIP LED
Datasheet download datasheet L-C150YCT Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
L-C150KGCT SURFACE MOUNT DEVICE LED HB Electronic Components
L-C150KRCT SURFACE MOUNT DEVICE LED HB Electronic Components
L-C191IR1CT SURFACE MOUNT DEVICE LED Para Light Electronics
L-C295KGKYCT SMD LED PARA LIGHT ELECTRONICS

Other Datasheets by PARA LIGHT

Part Number Description
L-C150ECT SMD CHIP LED
L-C150GCT SMD CHIP LED
L-C150JGCT-U1 SURFACE MOUNT DEVICE LED
L-C150JRCT-U1 SURFACE MOUNT DEVICE LED
L-C150JYCT SURFACE MOUNT DEVICE LED

Full PDF Text Transcription

Click to expand full text

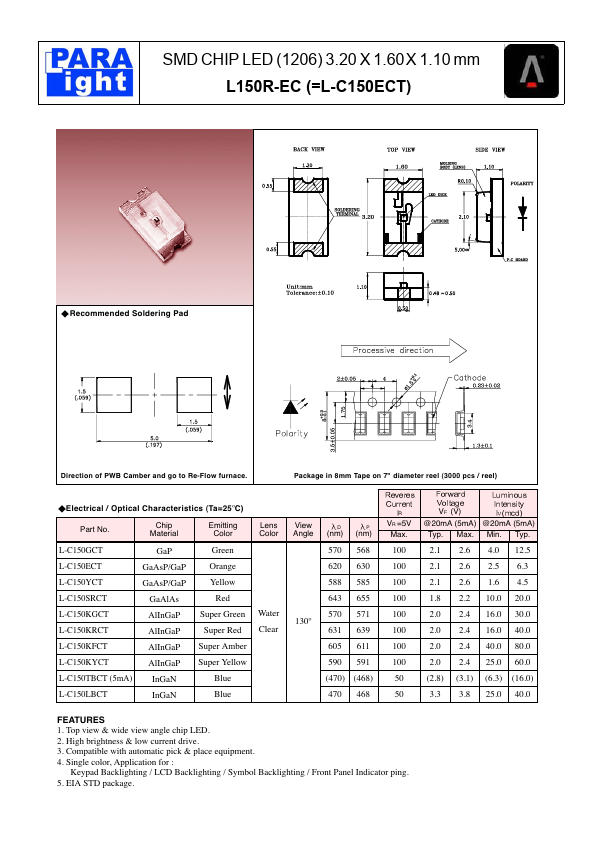

SMD CHIP LED (1206) 3.20 X 1.60X 1.10 mm L150R-EC (=L-C150ECT) Recommended Soldering Pad Direction of PWB Camber and go to Re-Flow furnace. Package in 8mm Tape on 7" diameter reel (3000 pcs / reel) Electrical / Optical Characteristics (Ta=25ºC) Part No. Chip Material Emitting Color Lens Color L-C150GCT GaP Green L-C150ECT GaAsP/GaP Orange L-C150YCT GaAsP/GaP Yellow L-C150SRCT L-C150KGCT L-C150KRCT GaAlAs AlInGaP AlInGaP Red Super Green Super Red Water Clear L-C150KFCT AlInGaP Super Amber L-C150KYCT AlInGaP Super Yellow L-C150TBCT (5mA) InGaN Blue L-C150LBCT InGaN Blue View D P Angle (nm) (nm) 570 568 620 630 588 585 643 655 570 571 130º 631 639 605 611 590 591 (470) (468) 470 468 R VR =5V Max.
