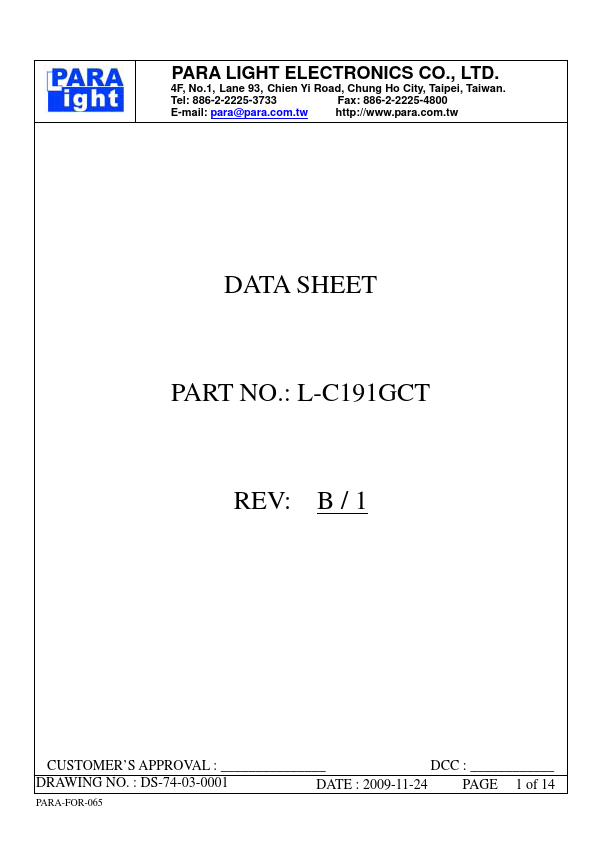

PARA LIGHT ELECTRONICS CO., LTD.
4F, No.1, Lane 93, Chien Yi Road, Chung Ho City, Taipei, Taiwan.
Tel: 886-2-2225-3733
Fax: 886-2-2225-4800
E-mail: para@para.com.tw http://www.para.com.tw
DATA SHEET PART NO.: L-C191GCT
REV: B / 1
CUSTOMER’S APPROVAL : _______________
DCC : ____________
DRAWING NO. : DS-74-03-0001
DATE : 2009-11-24 PAGE 1 of 14
PARA-FOR-065

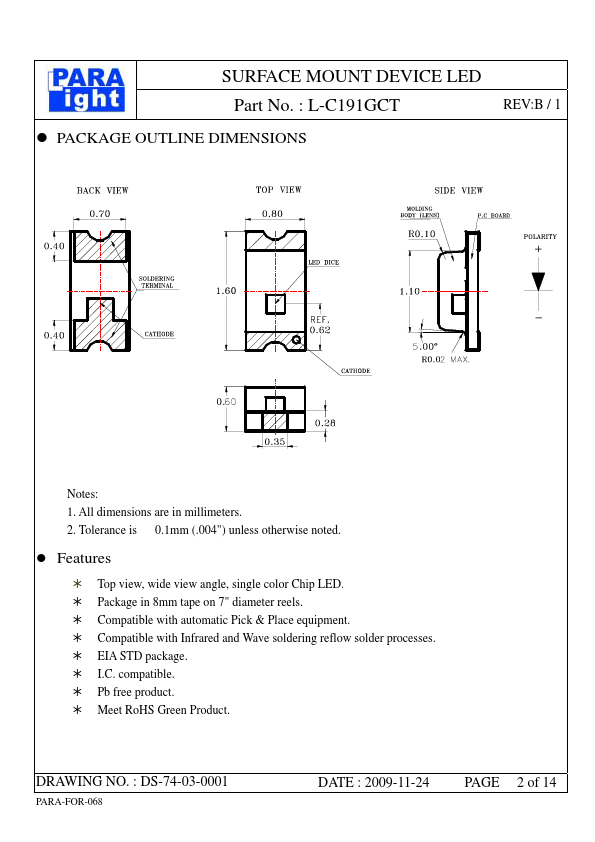

SURFACE MOUNT DEVICE LED Part No. : L-C191GCT
z PACKAGE OUTLINE DIMENSIONS
REV:B / 1
Notes: 1. All dimensions are in millimeters. 2. Tolerance is 0.1mm (.004") unless otherwise noted.
z Features
½ Top view, wide view angle, single color Chip LED. ½ Package in 8mm tape on 7" diameter reels. ½ Compatible with automatic Pick & Place equipment. ½ Compatible with Infrared and Wave soldering reflow solder processes.
