Release by PARALIGHTDCC
PARA LIGHT ELECTRONICS CO., LTD.
11F., No. 8, Jiankang Rd., Zhonghe Dist., New Taipei City 235, Taiwan,
Tel: 886-2-2225-3733 E-mail: para@para.com.tw
Fax: 886-2-2225-4800 www.paralighttaiwan.com

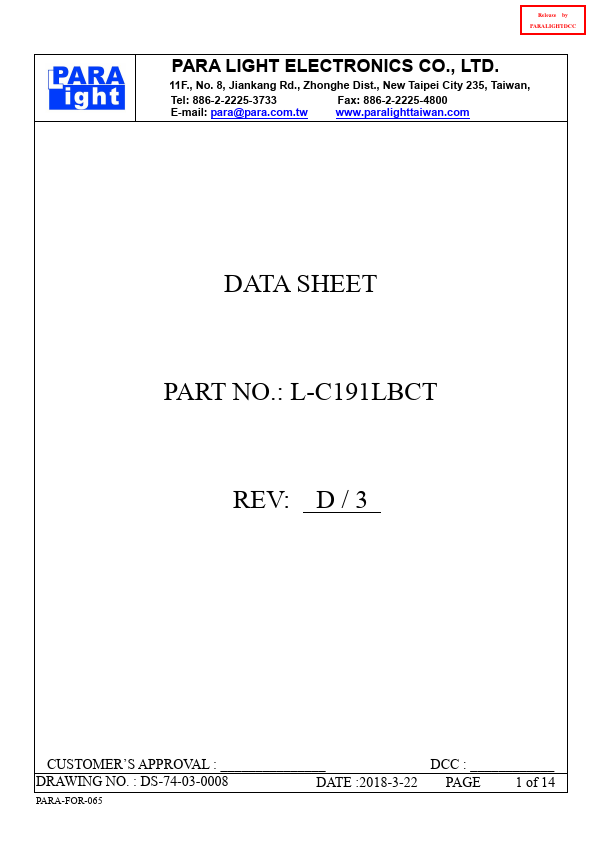

DATA SHEET PART NO.: L-C191LBCT
REV: D / 3
CUSTOMER’S APPROVAL : _______________
DCC : ____________
DRAWING NO. : DS-74-03-0008
DATE :2018-3-22 PAGE 1 of 14
PARA-FOR-065
Release by PARALIGHTDCC
SURFACE MOUNT DEVICE LED
Part No. : L-C191LBCT
REV:D / 3

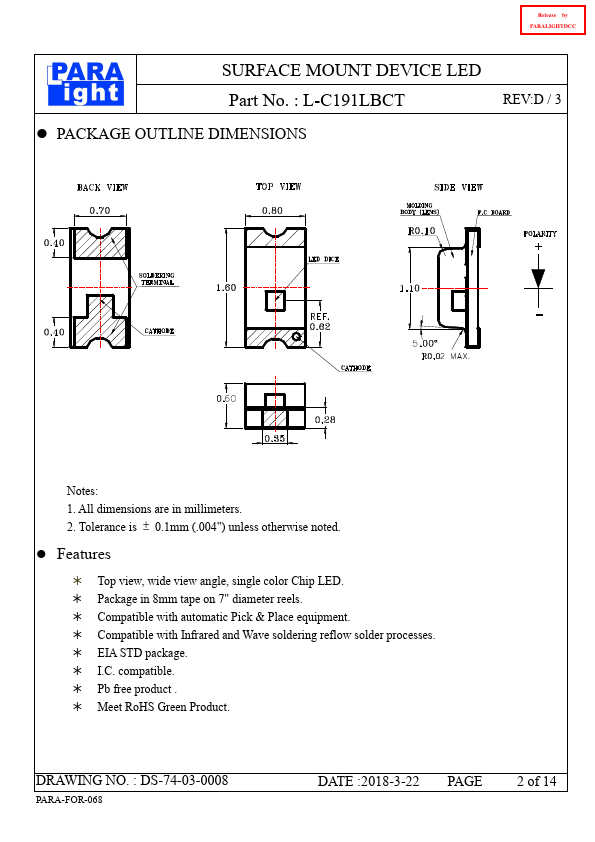

PACKAGE OUTLINE DIMENSIONS
Notes: 1. All dimensions are in millimeters. 2. Tolerance is ± 0.1mm (.004") unless otherwise noted.
Features
Top view, wide view angle, single color Chip LED. Package in 8mm tape on 7" diameter reels. Compatible with automatic Pick & Place equipment.
