L-C192CYCT-5A
L-C192CYCT-5A is SURFACE MOUNT DEVICE LED manufactured by PARA LIGHT.
PARA LIGHT ELECTRONICS CO., LTD.
11F., No. 8, Jiankang Rd., Zhonghe Dist., New Taipei City 235, Taiwan,
Tel: 886-2-2225-3733
Fax: 886-2-2225-4800
E-mail: para@para..tw http://.para..tw

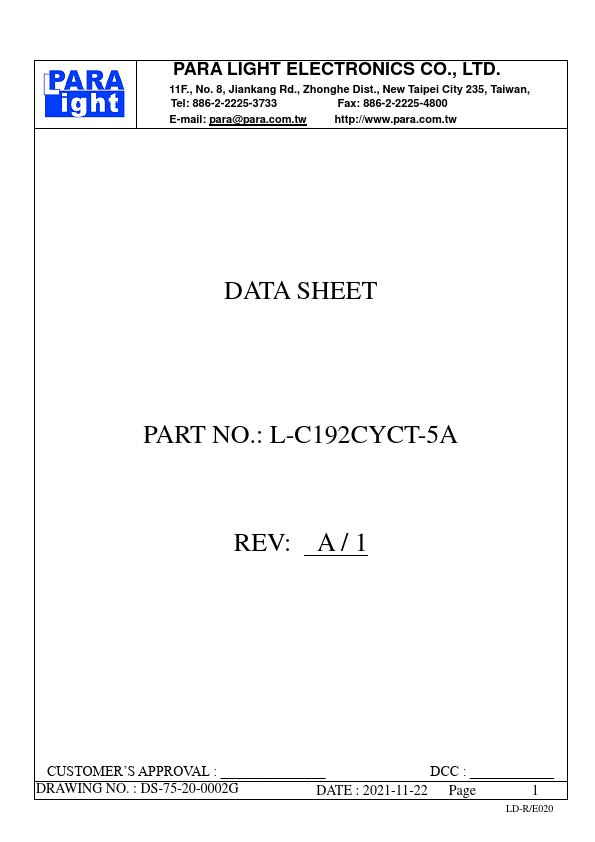

DATA SHEET PART NO.: L-C192CYCT-5A
REV: A / 1
CUSTOMER’S APPROVAL : _______________
DCC : ____________
DRAWING NO. : DS-75-20-0002G
DATE : 2021-11-22 Page
LD-R/E020

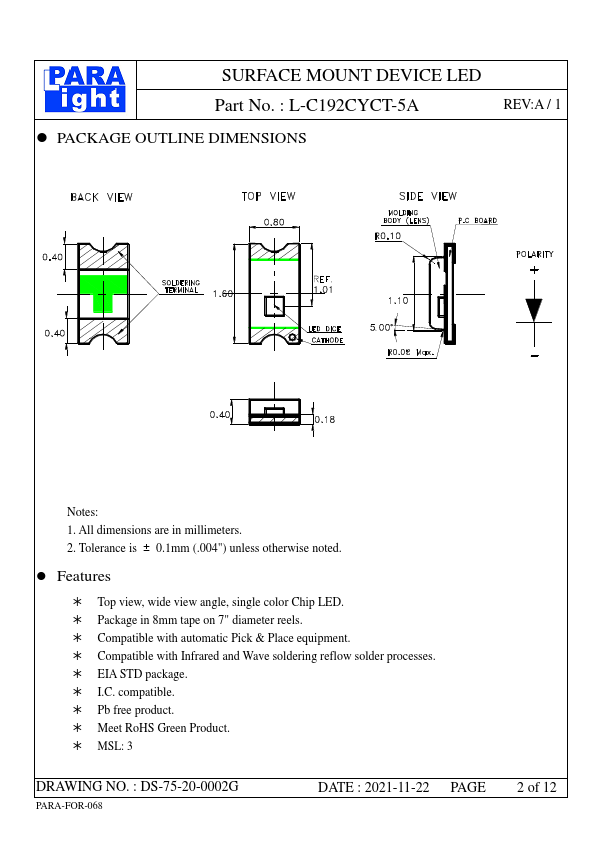

SURFACE MOUNT DEVICE LED Part No. : L-C192CYCT-5A
- PACKAGE OUTLINE DIMENSIONS
REV:A / 1
Notes: 1. All dimensions are in millimeters. 2. Tolerance is ± 0.1mm (.004") unless otherwise noted.
- Features
Top view, wide view angle, single color Chip LED. Package in 8mm tape on 7" diameter reels. patible with...
