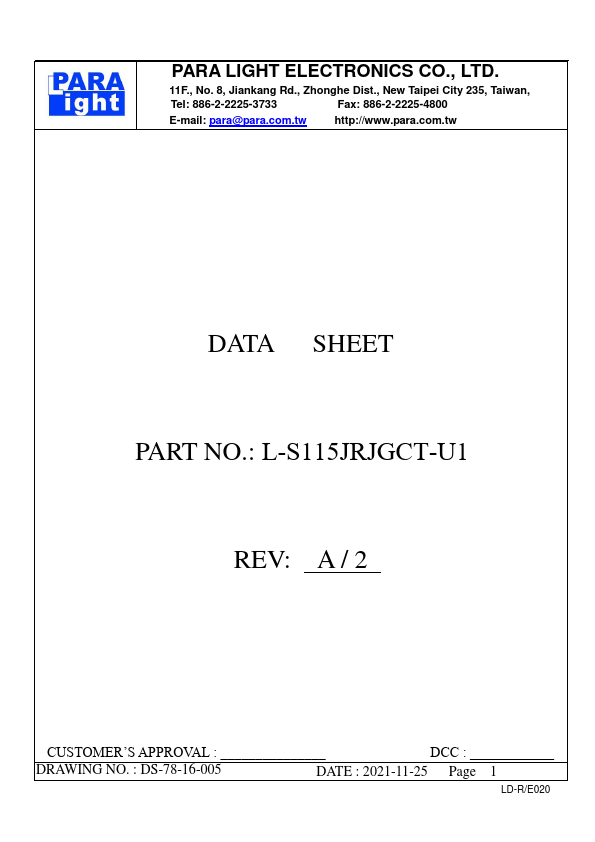

DATA SHEET PART NO.: L-S115JRJGCT-U1
REV: A / 2
CUSTOMER’S APPROVAL : _______________
DCC : ____________
DRAWING NO. : DS-78-16-005
DATE : 2021-11-25 Page 1
LD-R/E020
SURFACE MOUNT DEVICE LED
Part No. : L-S115JRJGCT-U1
REV: A / 2

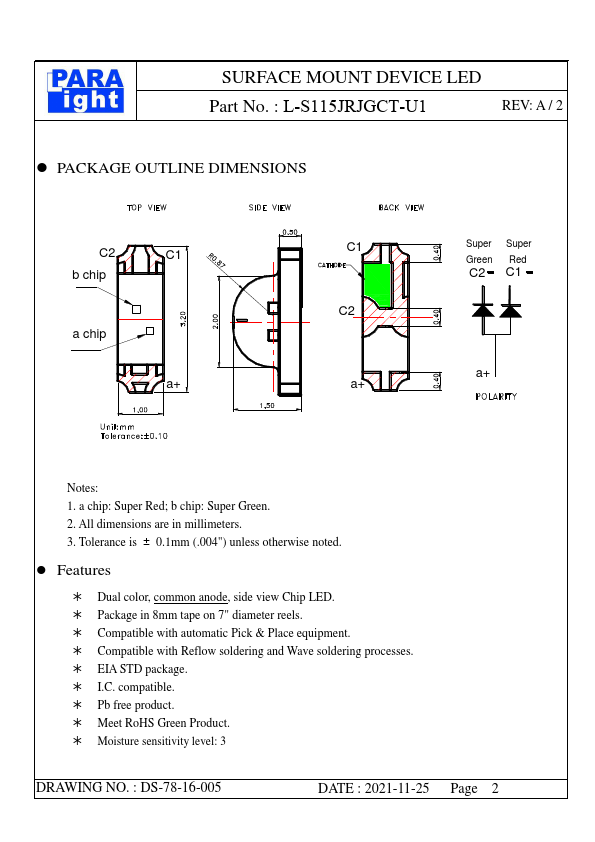

PACKAGE OUTLINE DIMENSIONS
C2
C1
b chip
a chip a+
C1 C2
a+
Super
Green
C2
Super
Red
C1
a+
Notes: 1. a chip: Super Red; b chip: Super Green. 2. All dimensions are in millimeters. 3. Tolerance is ± 0.1mm (.004") unless otherwise noted.
Features

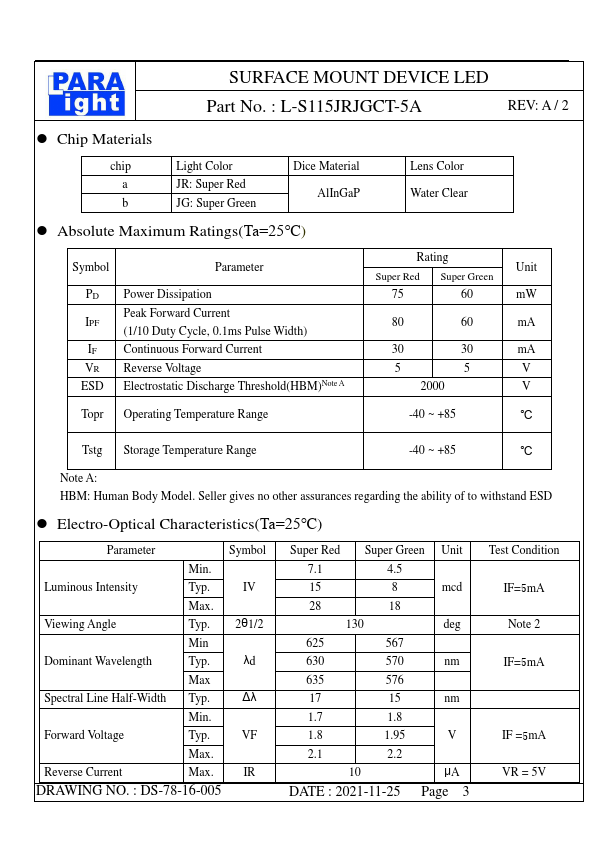

Dual color, common anode, side view Chip LED. Package in 8mm tape on 7" diameter reels.
