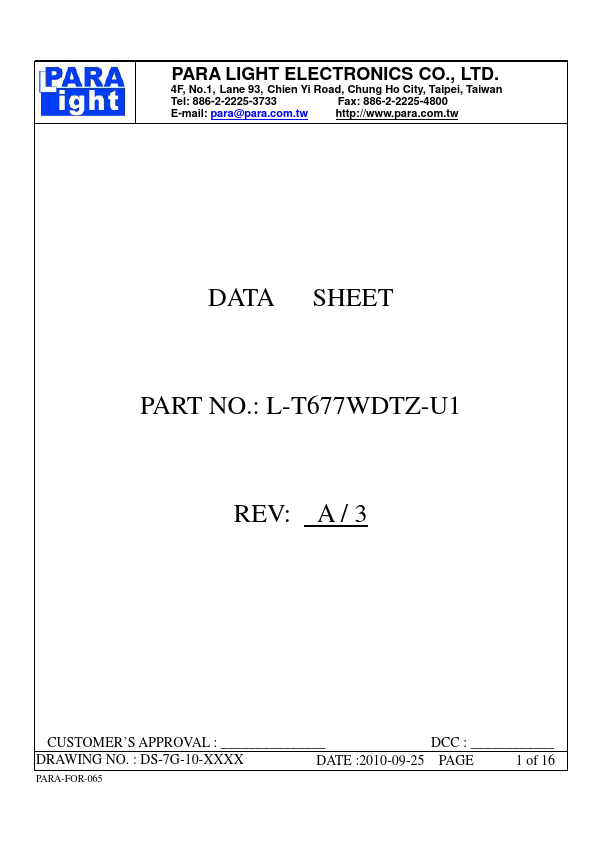

L-T677WDTZ-U1

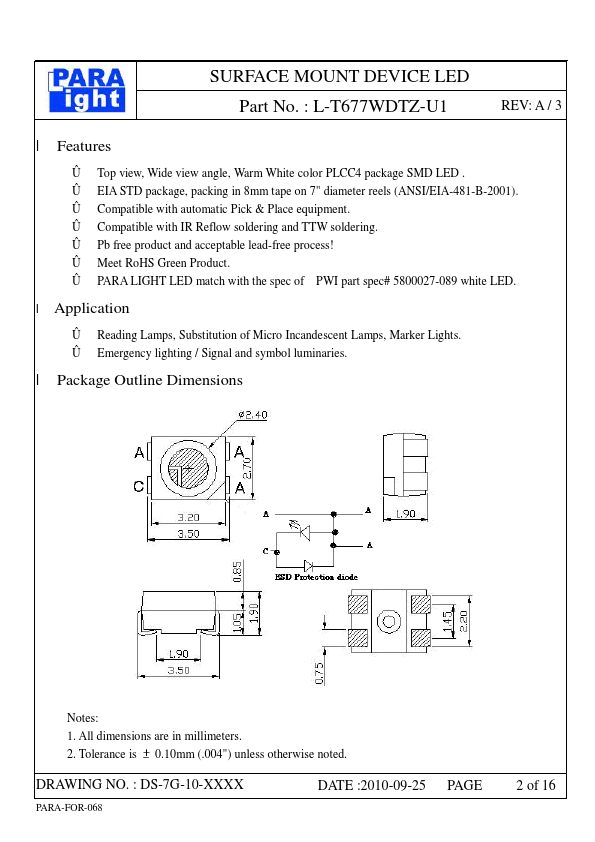

Features
Û Top view, Wide view angle, Warm White color PLCC4 package SMD LED . Û EIA STD package, packing in 8mm tape on 7" diameter reels (ANSI/EIA-481-B-2001). Û patible with automatic Pick & Place equipment. Û patible with IR Reflow soldering and TTW soldering. Û Pb free product and acceptable lead-free process! Û Meet Ro HS Green Product. Û PARA LIGHT LED match with the spec of PWI part spec# 5800027-089 white LED. l Application
Û Reading Lamps, Substitution of Micro Incandescent Lamps, Marker Lights. Û Emergency lighting / Signal and symbol luminaries. l Package Outline Dimensions
Notes: 1. All dimensions are in millimeters. 2. Tolerance is ± 0.10mm (.004") unless otherwise noted.
DRAWING NO. : DS-7G-10-XXXX
PARA-FOR-068
DATE :2010-09-25 PAGE
2 of 16
SURFACE MOUNT DEVICE LED Part No. : L-T677WDTZ-U1
REV: A / 3 l Chip Materials
Û Dice Material : In Ga N Û Light Color : White Û Lens Color : Light Yellow Diffused. l Absolute Maximum Ratings(Ta=25℃)
Symbol
Parameter
Rating
Un...
