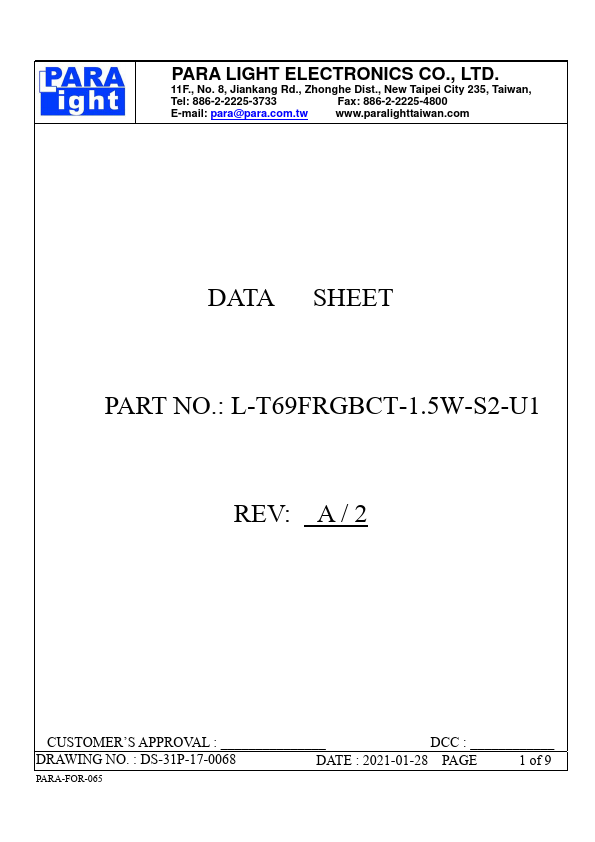

PARA LIGHT ELECTRONICS CO., LTD.
11F., No. 8, Jiankang Rd., Zhonghe Dist., New Taipei City 235, Taiwan,
Tel: 886-2-2225-3733
Fax: 886-2-2225-4800
E-mail: para@para.com.tw www.paralighttaiwan.com
DATA SHEET PART NO.: L-T69FRGBCT-1.5W-S2-U1
REV: A / 2
CUSTOMER’S APPROVAL : _______________
DCC : ____________
DRAWING NO. : DS-31P-17-0068
DATE : 2021-01-28 PAGE
1 of 9
PARA-FOR-065

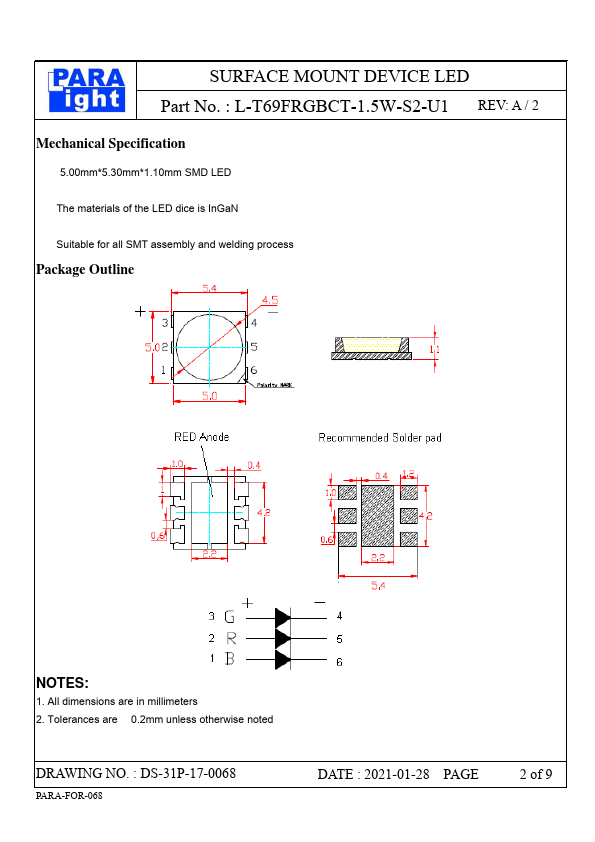

SURFACE MOUNT DEVICE LED Part No. : L-T69FRGBCT-1.5W-S2-U1 REV: A / 2
Mechanical Specification
5.00mm*5.30mm*1.10mm SMD LED
The materials of the LED dice is InGaN
Suitable for all SMT assembly and welding process
Package Outline
NOTES:
1. All dimensions are in millimeters 2. Tolerances are 0.2mm unless otherwise noted
DRAWING NO.
