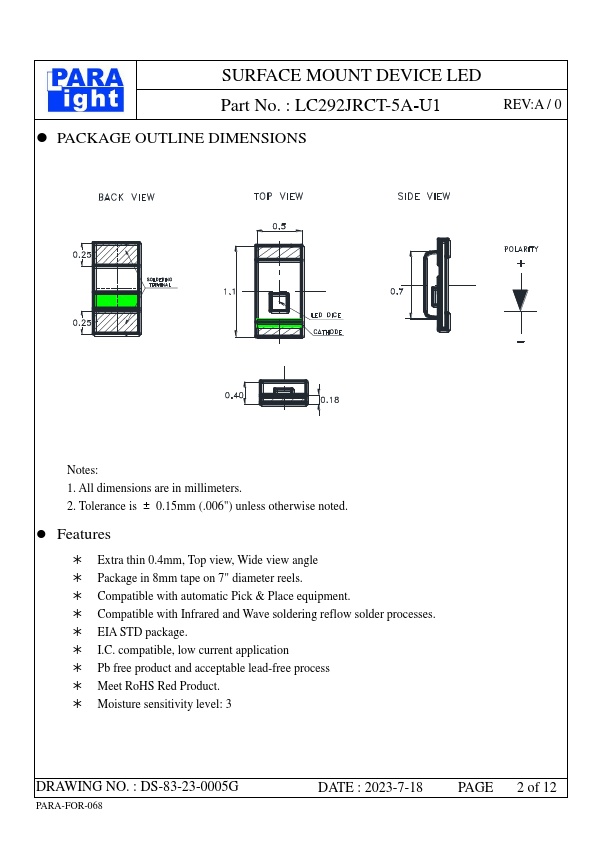

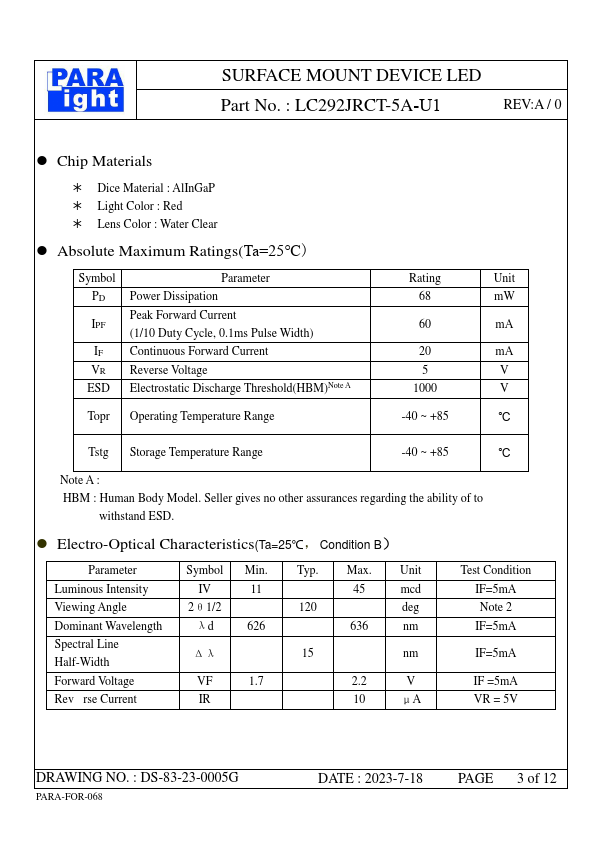

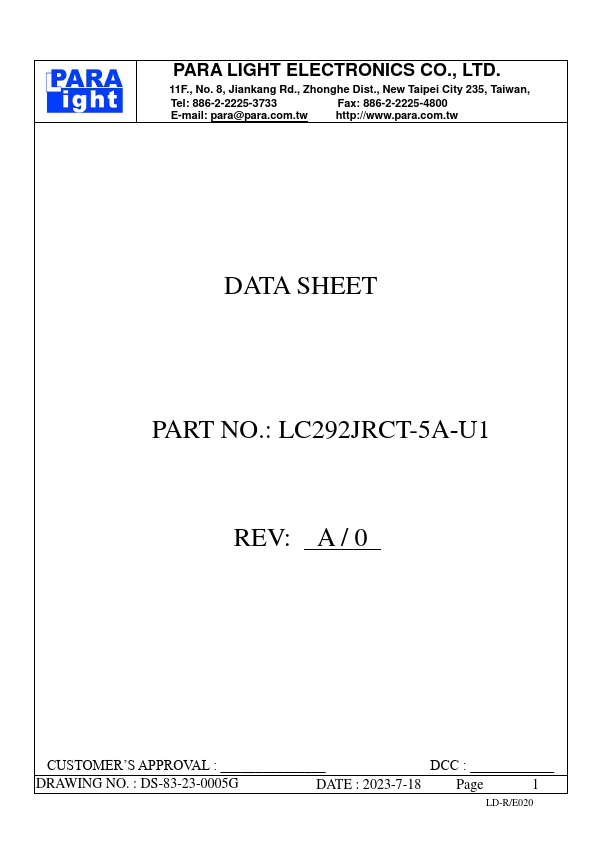

PARA LIGHT ELECTRONICS CO., LTD. 11F., No. 8, Jiankang Rd., Zhonghe Dist., New Taipei City 235, Taiwan, Tel: 886-2-2225-3733 E-mail: para@para..tw Fax: 886-2-2225-4800 http://.para..tw DATA SHEET PART NO.: LC292JRCT-5A-U1 REV: A / 0 CUSTOMER’S APPROVAL : _______________ DCC : ____________ DRAWING NO. : DS-83-23-0005G DATE : 2023-7-18 Page LD-R/E020 SURFACE MOUNT DEVICE LED Part No. : LC292JRCT-5A-U1 - PACKAGE OUTLINE DIMENSIONS REV:A / 0 Notes: 1. All dimensions are in millimeters. 2. Tolerance is ± 0.15mm (.006") unless otherwise noted. - Features  Extra thin 0.4mm, Top view, Wide view angle  Package in 8mm tape on 7" diameter reels.  patible with automatic Pick & Place equipment.  patible with Infrared and Wave soldering reflow solder processes.  EIA STD package.  I.C. patible, low current application  Pb free product and acceptable lead-free process  Meet Ro HS Red Product.  Moisture sensitivity level: 3 DRAWING NO. : DS-83-23-0005G PARA-FOR-068 DATE : 2023-7-18 PAGE 2 of 12 SURFACE MOUNT DEVICE LED Part No. : LC292JRCT-5A-U1 REV:A / 0 - Chip Materials  Dice Material : Al In Ga P  Light Color : Red  Lens Color : Water Clear -...
