LLR3ED199G - DIA LED LAMP

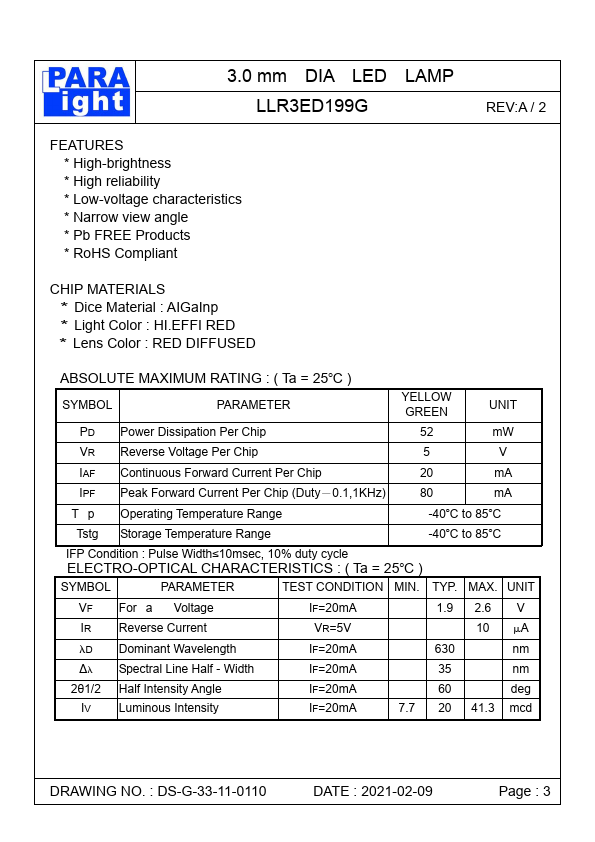

Key Features

  • High-brightness.
  • High reliability.
  • Low-voltage characteristics.
  • Narrow view angle.
  • Pb FREE Products.
  • RoHS Compliant CHIP.

📥 Download Datasheet

Datasheet Details

Part number LLR3ED199G
Manufacturer PARA LIGHT
File Size 305.91 KB
Description DIA LED LAMP
Datasheet download datasheet LLR3ED199G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by PARA LIGHT

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

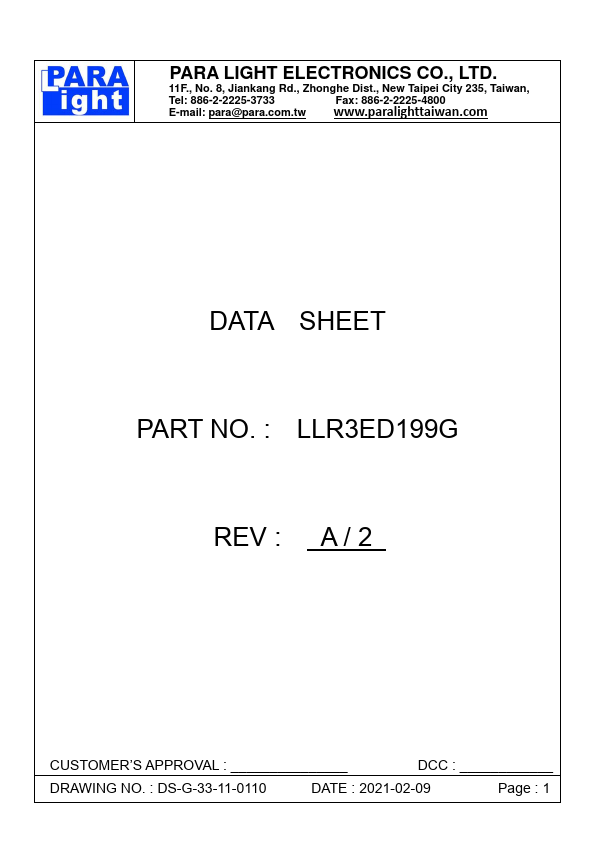

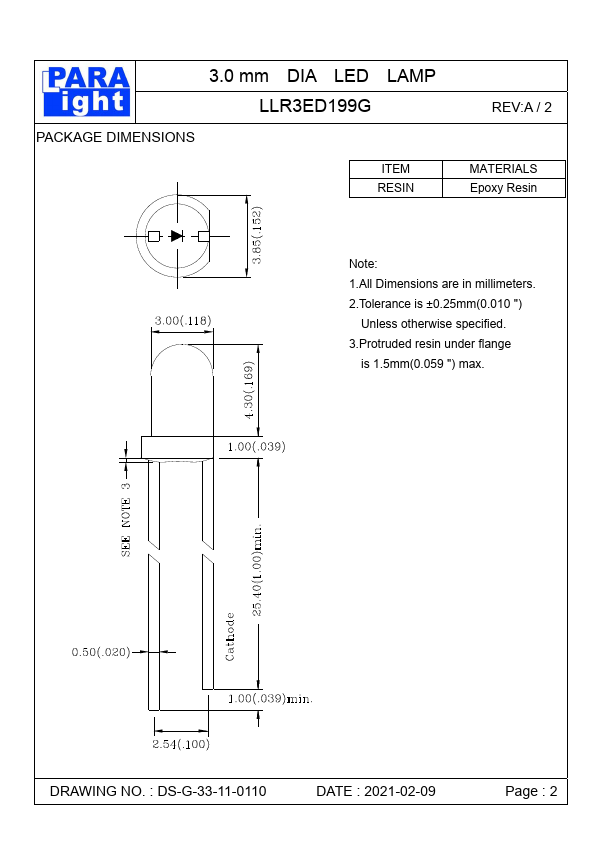

PARA LIGHT ELECTRONICS CO., LTD. 11F., No. 8, Jiankang Rd., Zhonghe Dist., New Taipei City 235, Taiwan, Tel: 886-2-2225-3733 E-mail: para@para.com.tw Fax: 886-2-2225-4800 www.paralighttaiwan.com DATA SHEET PART NO. : LLR3ED199G REV : A / 2 CUSTOMER’S APPROVAL : _______________ DCC : ____________ DRAWING NO. : DS-G-33-11-0110 DATE : 2021-02-09 Page : 1 3.0 mm DIA LED LAMP LLR3ED199G PACKAGE DIMENSIONS ITEM RESIN REV:A / 2 MATERIALS Epoxy Resin Note: 1.All Dimensions are in millimeters. 2.Tolerance is ±0.25mm(0.010 ") Unless otherwise specified. 3.Protruded resin under flange is 1.5mm(0.059 ") max. DRAWING NO. : DS-G-33-11-0110 DATE : 2021-02-09 Page : 2 3.
