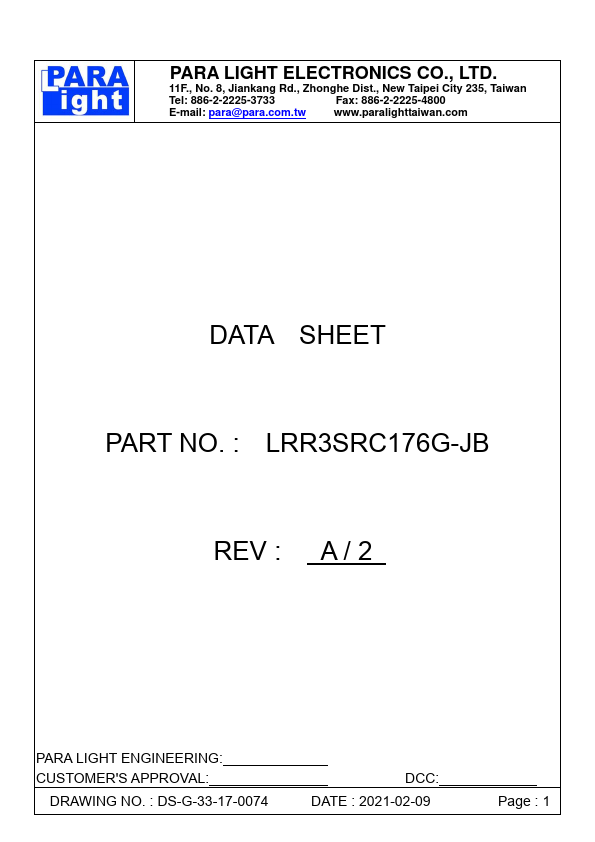

Overview: PARA LIGHT ELECTRONICS CO., LTD. 11F., No. 8, Jiankang Rd., Zhonghe Dist., New Taipei City 235, Taiwan Tel: 886-2-2225-3733 Fax: 886-2-2225-4800 E-mail: para@para.com.tw www.paralighttaiwan.com DATA SHEET PART NO. : LRR3SRC176G-JB
REV : A / 2 PARA LIGHT ENGINEERING: CUSTOMER'S APPROVAL:
DRAWING NO. : DS-G-33-17-0074 DCC: DATE : 2021-02-09 Page : 1 3.0 mm DIA LED LAMP LRR3SRC176G-JB

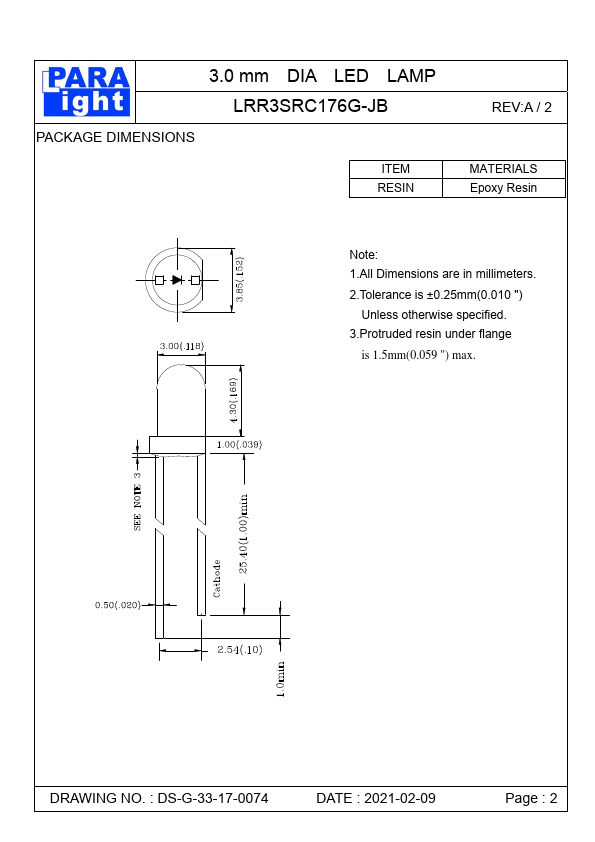

PACKAGE DIMENSIONS
ITEM RESIN REV:A / 2
MATERIALS Epoxy Resin Note: 1.All Dimensions are in millimeters. 2.Tolerance is ±0.25mm(0.010 ")
Unless otherwise specified. 3.Protruded resin under flange

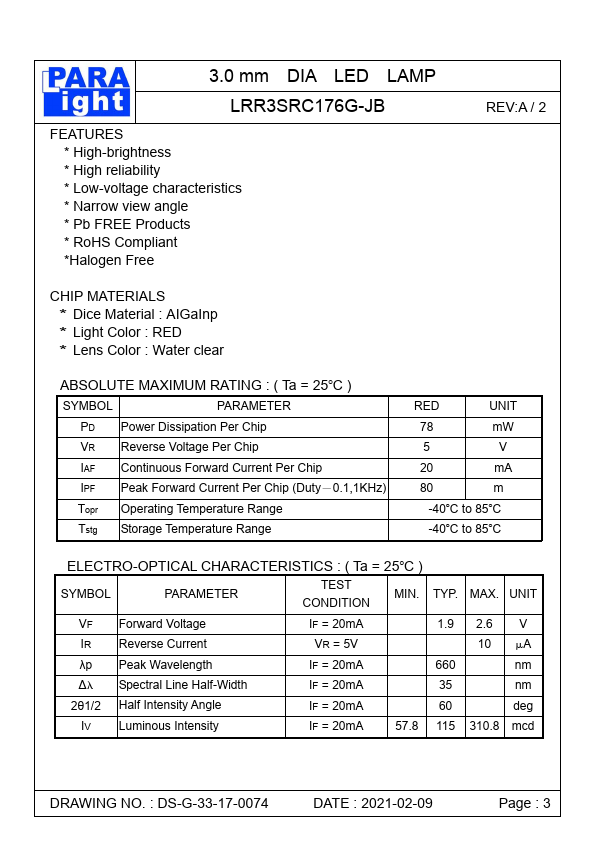

is 1.5mm(0.059 ") max. DRAWING NO. : DS-G-33-17-0074 DATE : 2021-02-09 Page : 2 3.
