Datasheet Details
| Part number | LTR3HURLPG6C292G |
|---|---|
| Manufacturer | PARA LIGHT |
| File Size | 277.51 KB |
| Description | DIA LED LAMP |
| Datasheet | LTR3HURLPG6C292G-PARALIGHT.pdf |
|
|

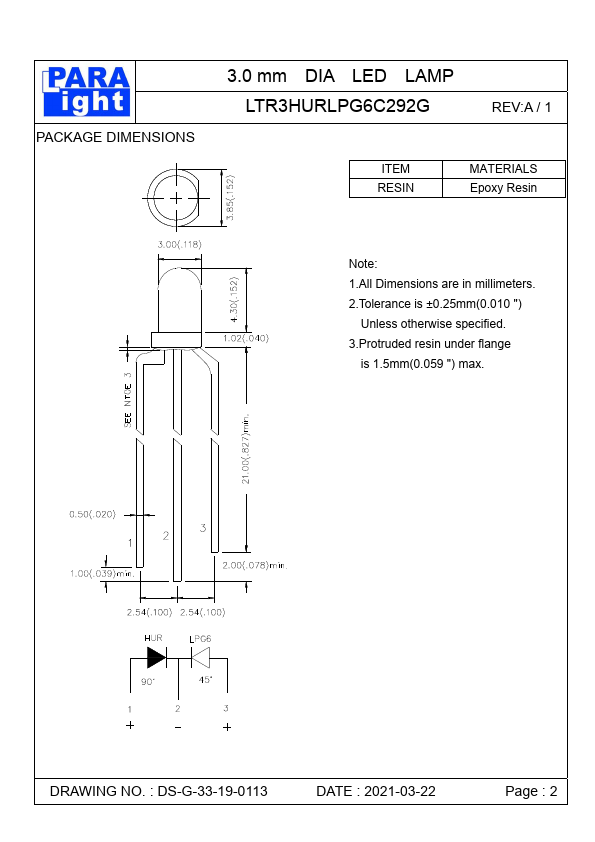

Overview: PARA LIGHT ELECTRONICS CO., LTD. 11F., No. 8, Jiankang Rd., Zhonghe Dist., New Taipei City 235, Taiwan, Tel: 886-2-2225-3733 E-mail: para@para.com.tw Fax: 886-2-2225-4800 www.paralighttaiwan.com DATA SHEET PART NO. : LTR3HURLPG6C292G REV : A / 1 CUSTOMER’S APPROVAL : _______________ DCC : ____________ DRAWING NO. : DS-G-33-19-0113 DATE : 2021-03-22 Page : 1 PACKAGE DIMENSIONS 3.0 mm DIA LED LAMP LTR3HURLPG6C292G REV:A / 1 ITEM RESIN MATERIALS Epoxy Resin Note: 1.All Dimensions are in millimeters. 2.Tolerance is ±0.25mm(0.010 ") Unless otherwise specified. 3.Protruded resin under flange is 1.5mm(0.059 ") max. DRAWING NO. : DS-G-33-19-0113 DATE : 2021-03-22 Page : 2 3.
| Part number | LTR3HURLPG6C292G |
|---|---|
| Manufacturer | PARA LIGHT |
| File Size | 277.51 KB |
| Description | DIA LED LAMP |
| Datasheet | LTR3HURLPG6C292G-PARALIGHT.pdf |
|
|
|

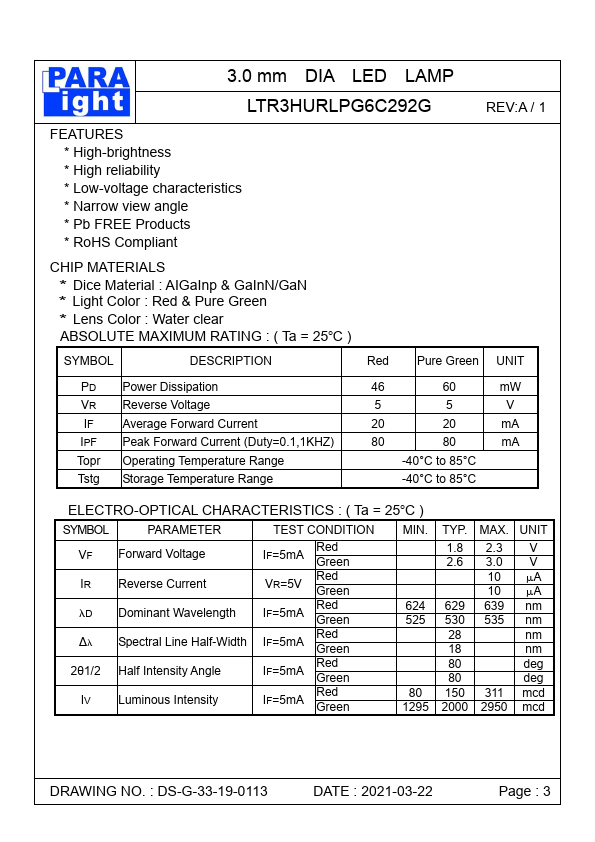

Red Pure Green UNIT PD Power Dissipation VR Reverse Voltage IF Average Forward Current IPF Peak Forward Current (Duty=0.1,1KHZ) Topr Operating Temperature Range Tstg Storage Temperature Range 46 60 mW 5 5 V 20 20 mA 80 80 mA -40°C to 85°C -40°C to 85°C ELECTRO-OPTICAL CHARACTERISTICS : ( Ta = 25C ) SYMBOL PARAMETER TEST CONDITION MIN.
VF IR D Δ 2θ1/2 IV Forward Voltage Reverse Current Dominant Wavelength Spectral Line Half-Width Half Intensity Angle Luminous Intensity IF=5mA VR=5V IF=5mA IF=5mA IF=5mA IF=5mA Red Green Red Green Red Green Red Green Red Green Red Green 624 525 80 1295 TYP.
1.8 2.6 629 530 28 18 80 80 150 2000 MAX.
