PC50N065IH7 - 650V 50A IGBT

Features

  • Low switching power loss.
  • Low switching surge and noise.
  • Advanced field stop technology.
  • Low EMI.
  • Maximum junction temperature 175°C.
  • Qualified according to JEDEC for target.

📥 Download Datasheet

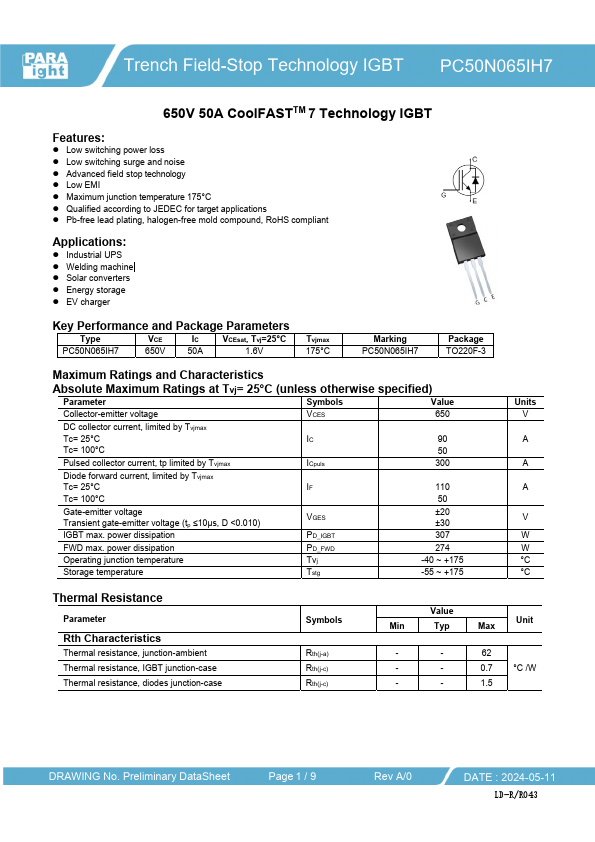

Datasheet preview – PC50N065IH7

Datasheet Details

Part number PC50N065IH7
Manufacturer PARA LIGHT
File Size 543.82 KB
Description 650V 50A IGBT
Datasheet download datasheet PC50N065IH7 Datasheet

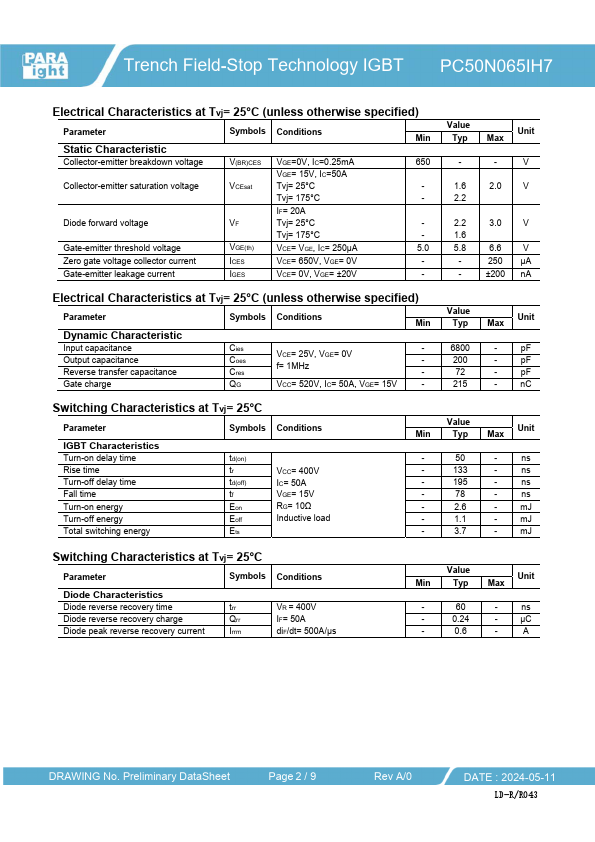

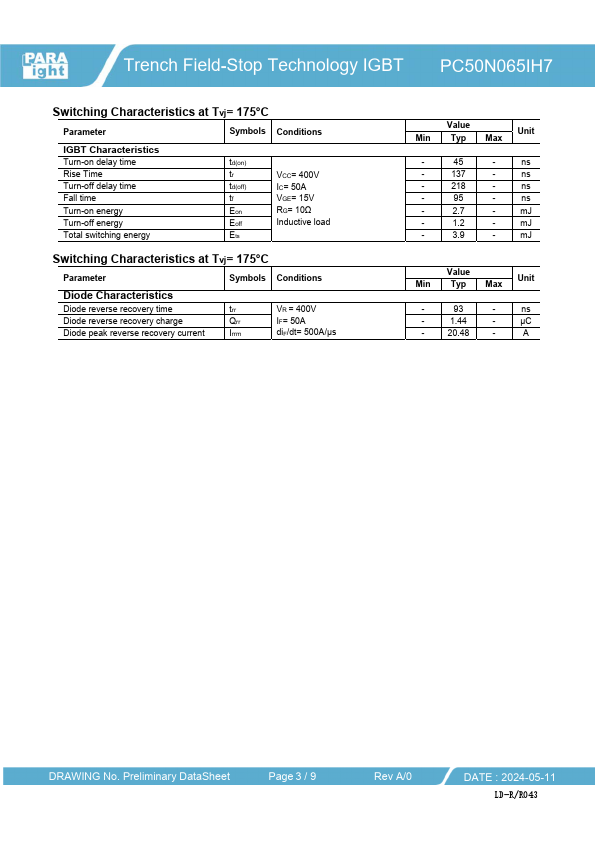

Additional preview pages of the PC50N065IH7 datasheet.

📁 Similar Datasheet

  • PC50EPCxxx - Ferrite Cores (TDK Electronics)
  • PC50F2 - FRD (Nihon Inter Electronics)
  • PC50F4 - FRD MODULE (Nihon Inter Electronics Corporation)
  • PC50F4 - FRD (Nihon Inter Electronics)
  • PC50F5 - FRD MODULE (Nihon Inter Electronics Corporation)
  • PC50F6 - FRD MODULE (Nihon Inter Electronics Corporation)
  • PC50PQ20-20Z-12 - Cores (TDK)
  • PC50PQ26-25Z-12 - Cores (TDK)
  • PC5-12-12 - Single/ Dual output DC-DC converter 1.5W ~ 25W (DENSEI-LAMBDA)
  • PC5-12-3.3 - Single/ Dual output DC-DC converter 1.5W ~ 25W (DENSEI-LAMBDA)
Other Datasheets by PARA LIGHT

    Full PDF Text Transcription

    Click to expand full text
    Trench Field-Stop Technology IGBT PC50N065IH7 650V 50A CoolFASTTM 7 Technology IGBT Features:  Low switching power loss  Low switching surge and noise  Advanced field stop technology  Low EMI  Maximum junction temperature 175°C  Qualified according to JEDEC for target applications  Pb-free lead plating, halogen-free mold compound, RoHS compliant Applications:  Industrial UPS  Welding machine  Solar converters  Energy storage  EV charger Key Performance and Package Parameters Type VCE IC VCEsat, Tvj=25°C PC50N065IH7 650V 50A 1.
