PCA5N120GD7L - 1200V 150A IGBT

Datasheet Summary

Features

Low switching power loss.
Low switching surge and noise.
Advanced field stop technology.
Low EMI.
Maximum junction temperature 175°C.
Qualified according to JEDEC for target.

PARA LIGHT

📥 Download Datasheet

Datasheet Details

Part number	PCA5N120GD7L
Manufacturer	PARA LIGHT
File Size	374.56 KB
Description	1200V 150A IGBT
Datasheet	PCA5N120GD7L Datasheet

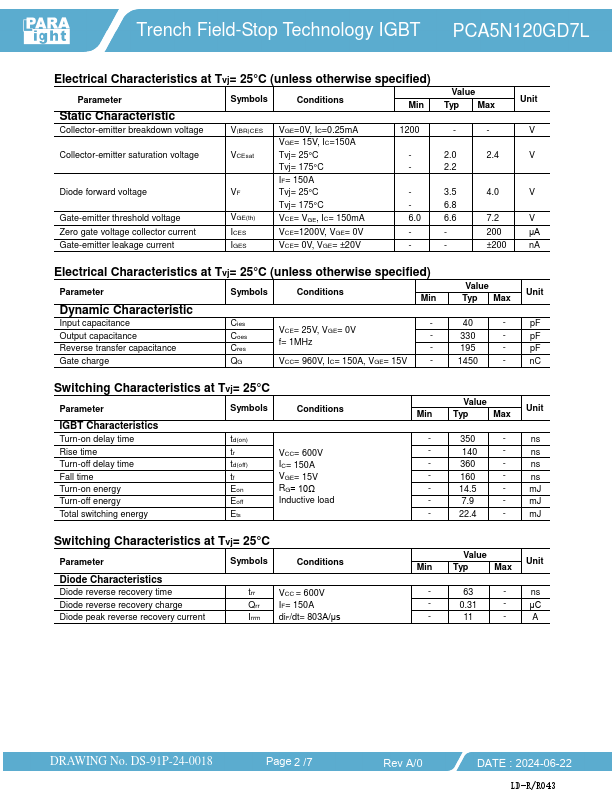

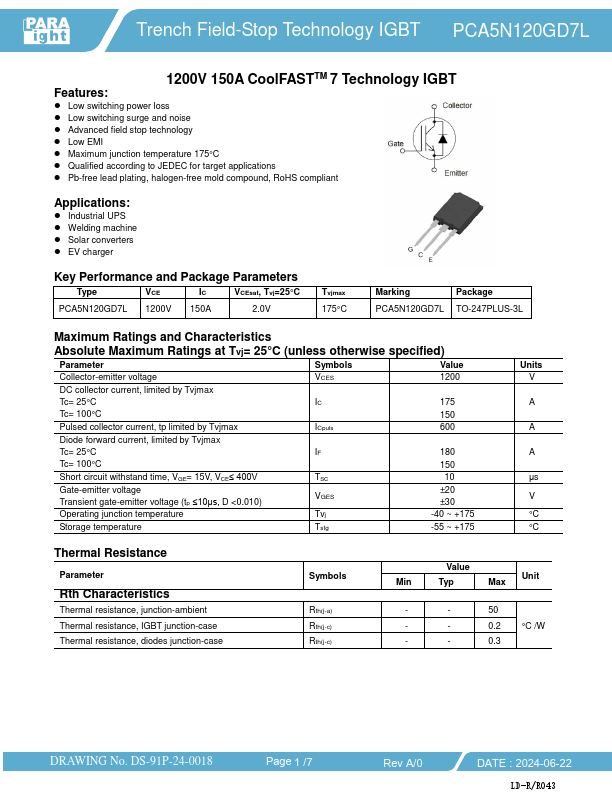

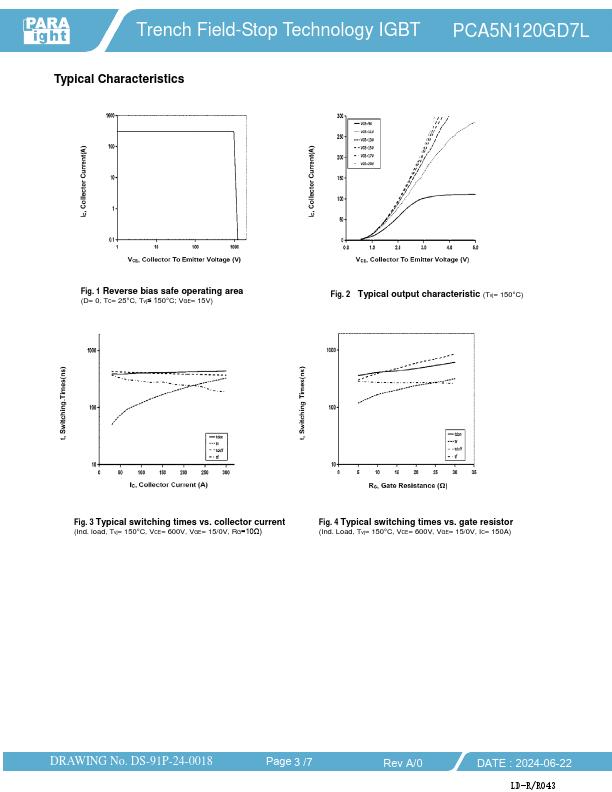

Additional preview pages of the PCA5N120GD7L datasheet.

📁 Similar Datasheet

PCA5007 - Pager baseband controller (NXP)
PCA5010 - Pager baseband controller (NXP)
PCA5097 - DECT baseband controllers (NXP)
PCA0102A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP (Z-Communications)
PCA0163A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP (Z-Communications)
PCA0174A-LF - Telecommunications - Satellite (Z-Communications)
PCA0198A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP (Z-Communications)
PCA0300A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP (Z-Communications)
PCA0445A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP (Z-Communications)
PCA0495A - LOW COST - HIGH PERFORMANCE PHASE LOCKED LOOP (Z-Communications)

Other Datasheets by PARA LIGHT

Full PDF Text Transcription

Click to expand full text

Trench Field-Stop Technology IGBT PCA5N120GD7L 1200V 150A CoolFASTTM 7 Technology IGBT Features:  Low switching power loss  Low switching surge and noise  Advanced field stop technology  Low EMI  Maximum junction temperature 175°C  Qualified according to JEDEC for target applications  Pb-free lead plating, halogen-free mold compound, RoHS compliant Applications:  Industrial UPS  Welding machine  Solar converters  EV charger Key Performance and Package Parameters Type VCE IC VCEsat, Tvj=25°C PCA5N120GD7L 1200V 150A 2.
