P6CG-0505E
..
Telefon: +49 (0) 6135 931069 Telefax: +49 (0) 6135 931070
.peak-electronics.de info@peak-electronics.de

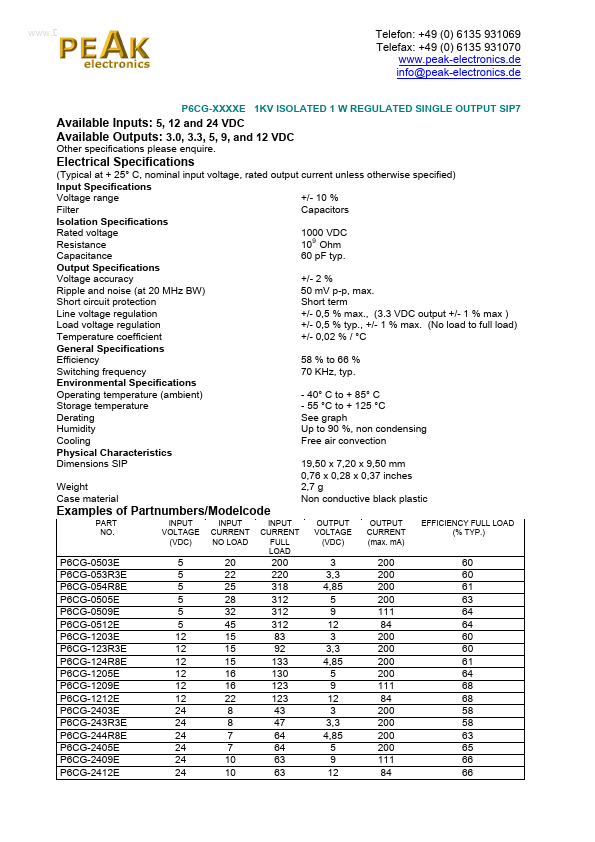

P6CG-XXXXE 1KV ISOLATED 1 W REGULATED SINGLE OUTPUT SIP7
Available Inputs: 5, 12 and 24 VDC
Available Outputs: 3.0, 3.3, 5, 9, and 12 VDC
Other specifications please enquire.
Electrical Specifications
(Typical at + 25° C, nominal input voltage, rated output current unless otherwise specified)
Input Specifications
Voltage range
+/- 10 %
Filter
Capacitors
Isolation Specifications
Rated voltage Resistance
1000 VDC 109 Ohm
Capacitance
60 p F typ.
Output Specifications
Voltage accuracy
+/- 2 %
Ripple and noise (at 20 MHz BW)
50 m V p-p, max.
Short circuit protection
Short term
Line voltage regulation
+/- 0,5 % max., (3.3 VDC output +/- 1 % max )
Load voltage regulation
+/- 0,5 % typ., +/- 1 % max. (No load to full load)
Temperature coefficient
+/- 0,02 % / °C
General Specifications
Efficiency
58 % to 66 %
Switching frequency
70 KHz, typ.

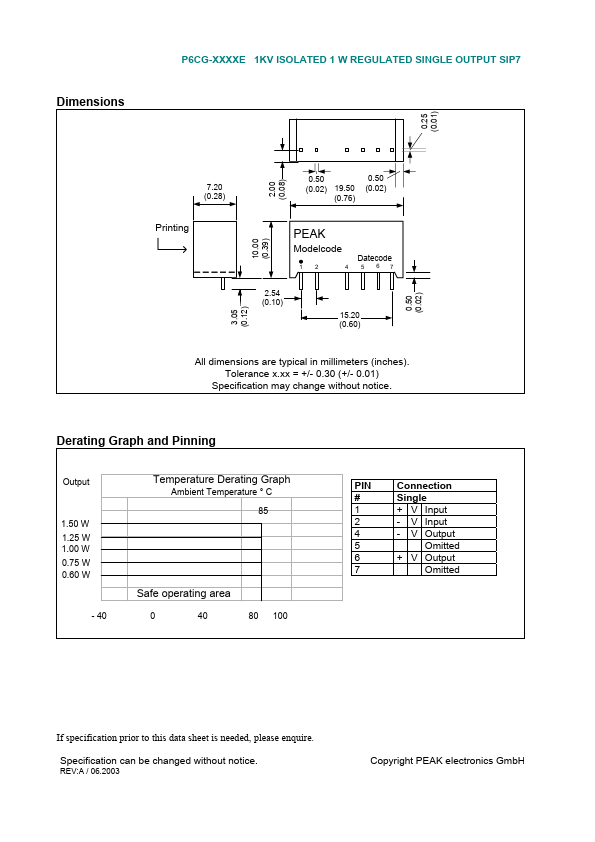

Environmental...
