P6CG-0512E - DC/DC converters

Download the P6CG-0512E datasheet PDF. This datasheet also covers the P6CG-0503E variant, as both devices belong to the same dc/dc converters family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (P6CG-0503E-PEAKelectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number P6CG-0512E
Manufacturer PEAK electronics
File Size 121.10 KB
Description DC/DC converters
Datasheet download datasheet P6CG-0512E Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by PEAK electronics

Part Number Description
P6CG-0503E DC/DC converters
P6CG-0505E DC/DC converters
P6CG-0509E DC/DC converters
P6CG-053R3E DC/DC converters
P6CG-054R8E DC/DC converters

Full PDF Text Transcription

Click to expand full text

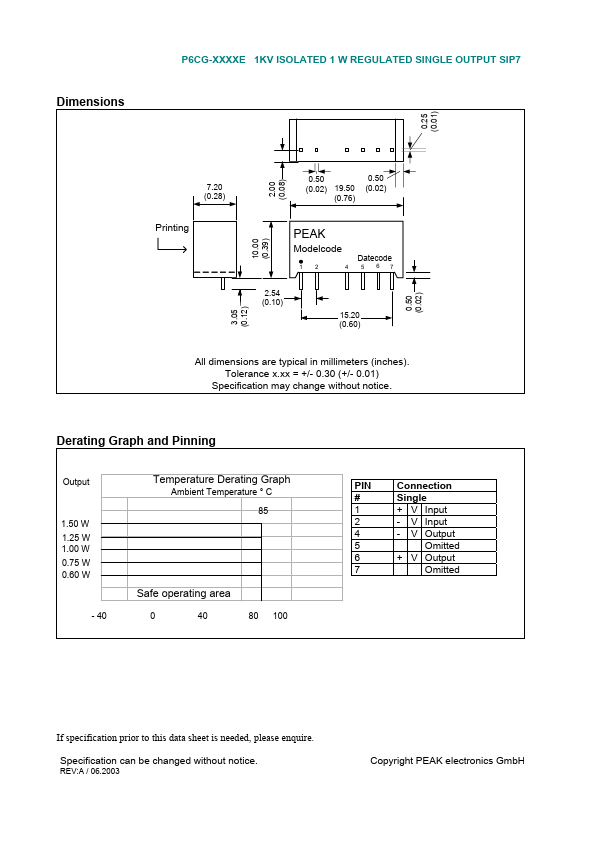

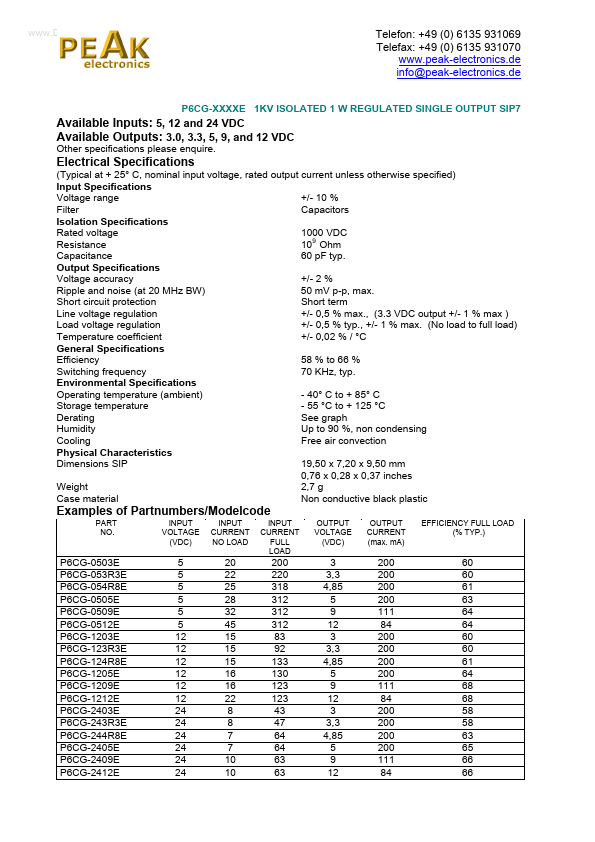

www.DataSheet4U.com Telefon: +49 (0) 6135 931069 Telefax: +49 (0) 6135 931070 www.peak-electronics.de info@peak-electronics.de P6CG-XXXXE 1KV ISOLATED 1 W REGULATED SINGLE OUTPUT SIP7 Available Inputs: 5, 12 and 24 VDC Available Outputs: 3.0, 3.3, 5, 9, and 12 VDC Other specifications please enquire. Electrical Specifications (Typical at + 25° C, nominal input voltage, rated output current unless otherwise specified) Input Specifications Voltage range +/- 10 % Filter Capacitors Isolation Specifications Rated voltage Resistance 1000 VDC 109 Ohm Capacitance 60 pF typ. Output Specifications Voltage accuracy +/- 2 % Ripple and noise (at 20 MHz BW) 50 mV p-p, max. Short circuit protection Short term Line voltage regulation +/- 0,5 % max., (3.
