Part number P6CU-0509ELF
Manufacturer PEAK electronics
File Size 145.30 KB
Description DC/DC converters
Download Download datasheet P6CU-0509ELF Download (PDF)

Overview

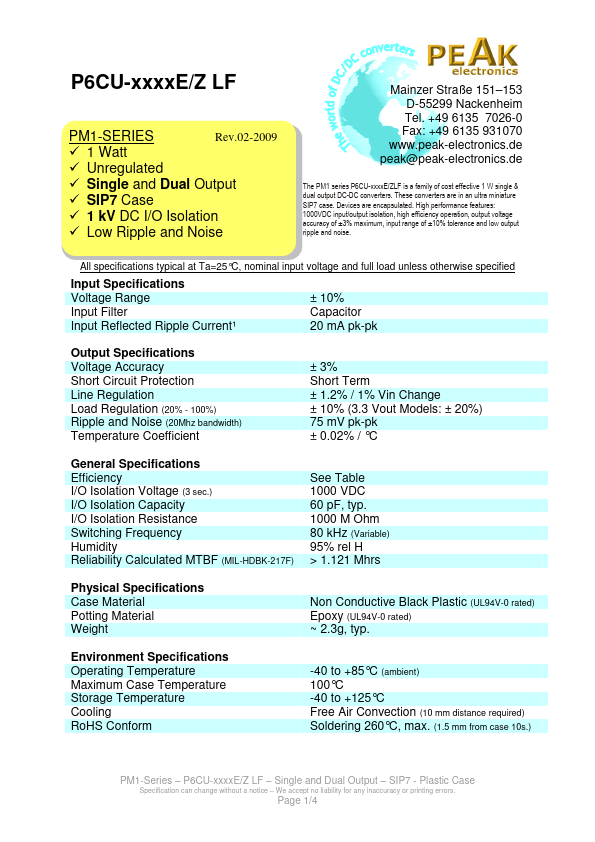

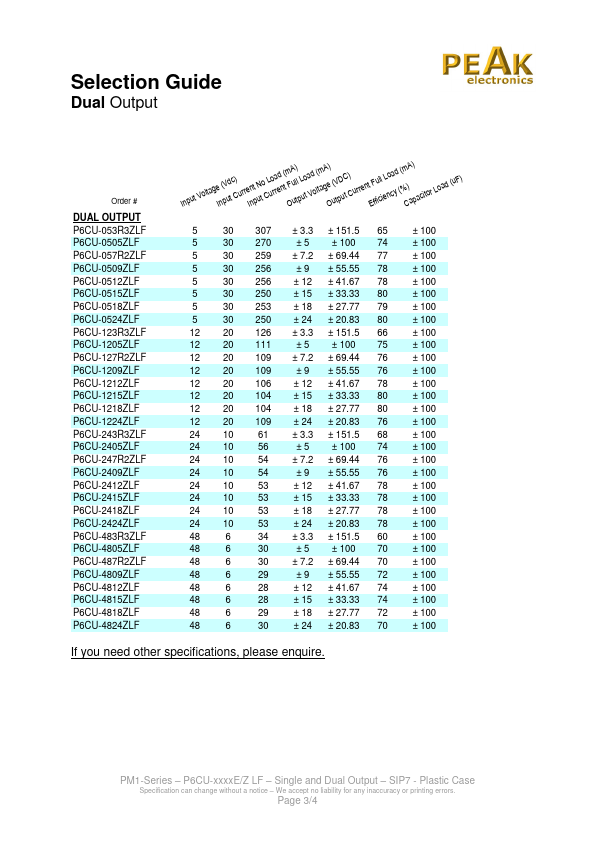

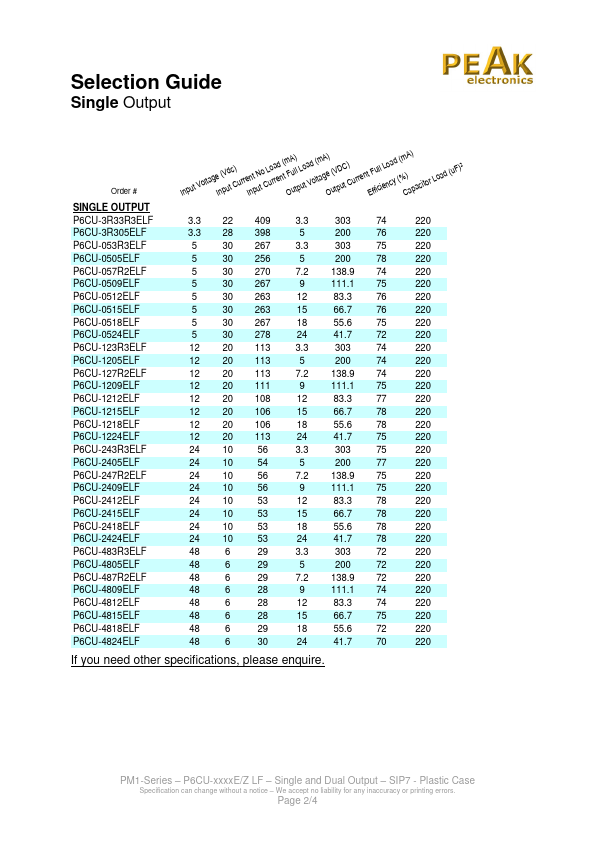

P6CU-xxxxE/Z LF PM1-SERIES Rev.02-2009 1 Watt Unregulated Single and Dual Output SIP7 Case 1 kV DC I/O Isolation Low Ripple and Noise Mainzer Straße 151–153 D-55299 Nackenheim Tel.

+49 6135 7026-0 Fax: +49 6135 931070 www.peak-electronics.de peak@peak-electronics.de The PM1 series P6CU-xxxxE/ZLF is a family of cost effective 1 W single & dual output DC-DC converters.

These converters are in an ultra miniature SIP7 case.

Key Features

  • 1000VDC input/output isolation, high efficiency operation, output voltage accuracy of ±3% maximum, input range of ±10% tolerance and low output ripple and noise. All specifications typical at Ta=25°C, nominal input voltage and full load unless otherwise specified Input Specifications Voltage Range Input Filter Input Reflected Ripple Current¹ ± 10% Capacitor 20 mA pk-pk Output Specifications Voltage Accuracy Short Circuit Protection Line Regulation Load Regulation (20% - 100%) Ripple and Noi.
