P6CU-2405ELF Datasheet | PEAK electronics

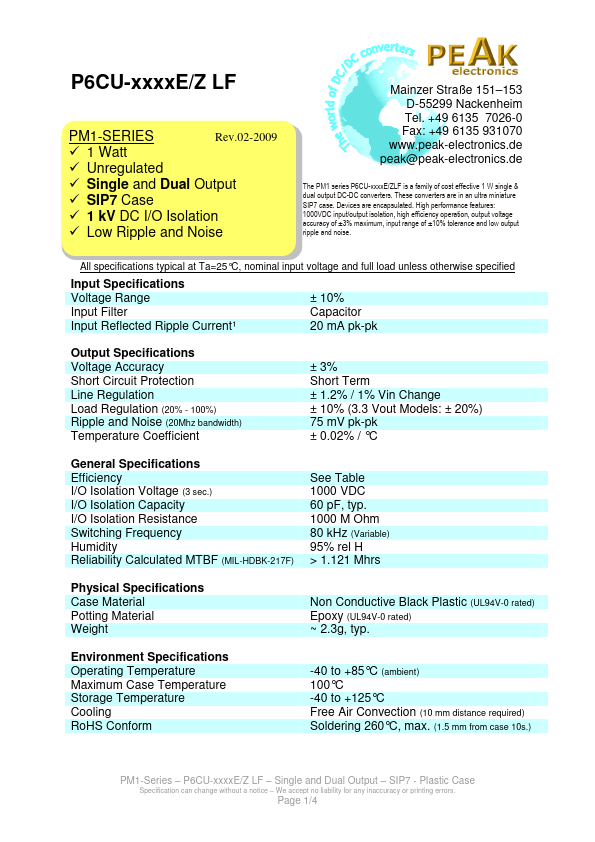

features : 1000VDC input/output isolation, high efficiency operation, output voltage accuracy of ±3% maximum, input range of ±10% tolerance and low output ripple and noise. All specifications typical at Ta=25°C, nominal input voltage and full load unless otherwise specified Input Specifications Voltage Range Input Filter Input Reflected Ripple Current¹ ± 10% Capacitor 20 m A pk-pk Output Specifications Voltage Accuracy Short Circuit Protection Line Regulation Load Regulation (20% - 100%) Ripple and Noise (20Mhz bandwidth) Temperature Coefficient ± 3% Short Term ± 1.2% / 1% Vin Change ± 10% (3.3 Vout Models: ± 20%) 75 m V pk-pk ± 0.02% / °C General Specifications Efficiency I/O Isolation Voltage (3 sec.) I/O Isolation Capacity I/O Isolation Resistance Switching Frequency Humidity Reliability Calculated MTBF (MIL-HDBK-217F) See Table 1000 VDC 60 p F, typ. 1000 M Ohm 80 k Hz (Variable) 95% rel H > 1.121 Mhrs Physical Specifications Case Material Potting Material Weight Non Conductive...
