P6CU-243R3ZLF Overview

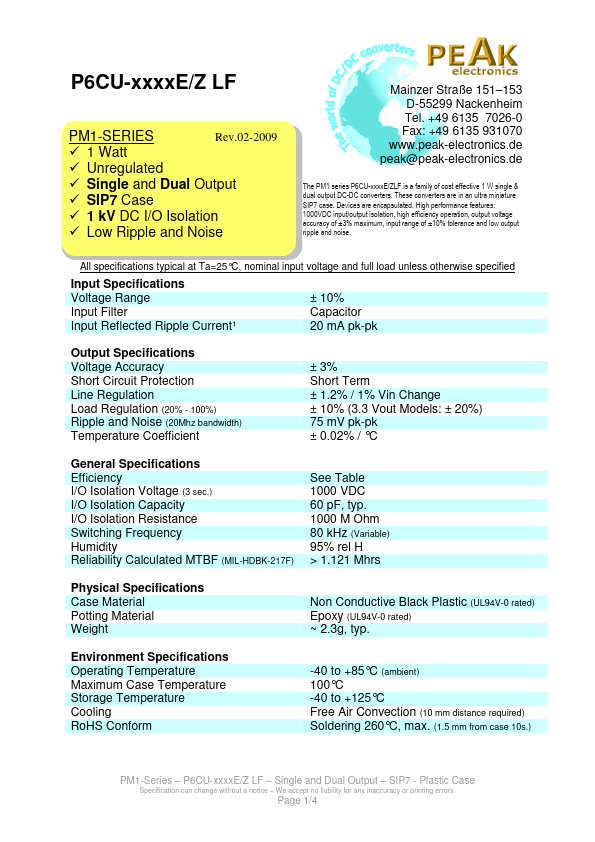

P6CU-xxxxE/Z LF PM1-SERIES Rev.02-2009 1 Watt Unregulated Single and Dual Output SIP7 Case 1 kV DC I/O Isolation Low Ripple and Noise Mainzer Straße 151 153 D-55299 Nackenheim Tel. +49 6135 931070 .peak-electronics.de peak@peak-electronics.de The PM1 series P6CU-xxxxE/ZLF is a family of cost effective 1 W single & dual output DC-DC converters. These converters are in an ultra miniature SIP7 case.
P6CU-243R3ZLF Key Features
- 100%) Ripple and Noise (20Mhz bandwidth) Temperature Coefficient
- P6CU-xxxxE/Z LF
- Single and Dual Output
- Plastic Case
- We accept no liability for any inaccuracy or printing errors
