P6CU-487R2ZLF - DC/DC converters

Product Overview

PEAK electronics

Part number	P6CU-487R2ZLF
Manufacturer	PEAK electronics
File Size	145.30 KB
Description	DC/DC converters
Datasheet	P6CU-487R2ZLF Datasheet
Note	This datasheet PDF includes multiple part numbers: P6CU-487R2ZLF, P6CU-3R33R3ELF. Please refer to the document for exact specifications by model.

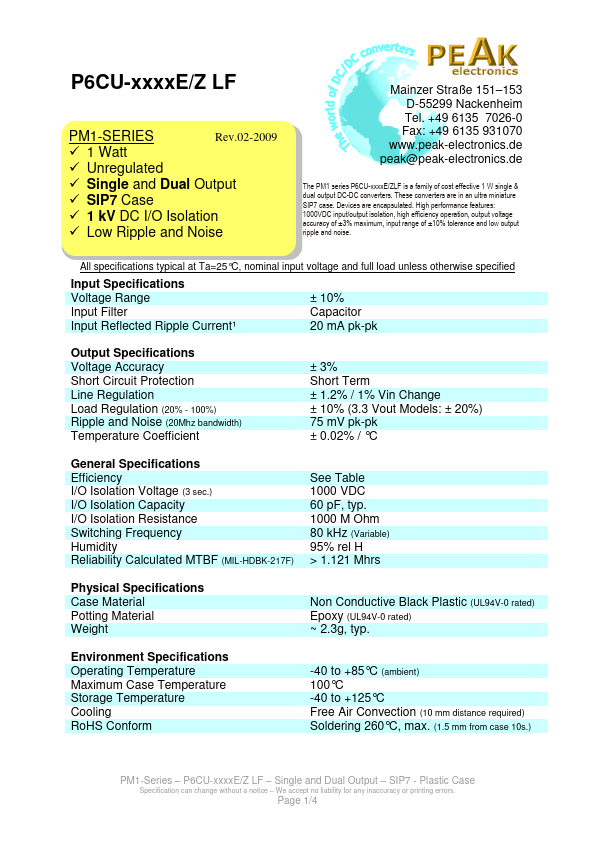

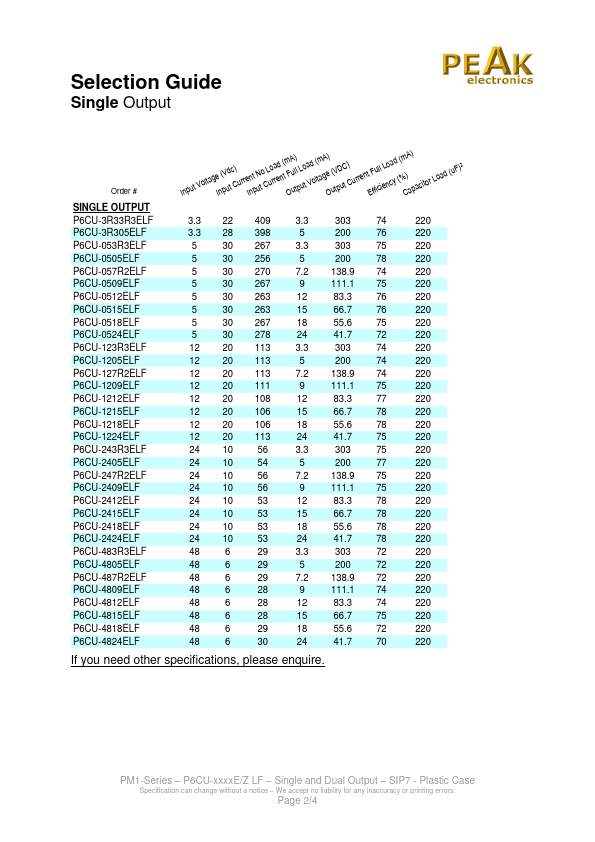

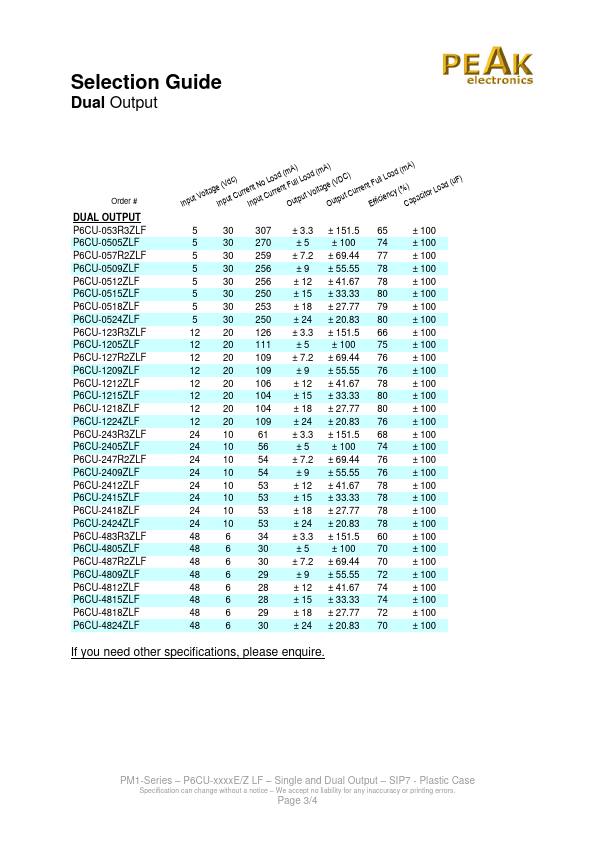

Additional preview pages of the P6CU-487R2ZLF datasheet.

1000VDC input/output isolation, high efficiency operation, output voltage accuracy of ±3% maximum, input range of ±10% tolerance and low output ripple and noise. All specifications typical at Ta=25°C, nominal input voltage and full load unless otherwise specified Input Specifications Voltage Range Input Filter Input Reflected Ripple Current¹ ± 10% Capacitor 20 mA pk-pk Output Specifications Voltage Accuracy Short Circuit Protection Line Regulation Load Regulation (20% - 100%) Ripple and Noi.
