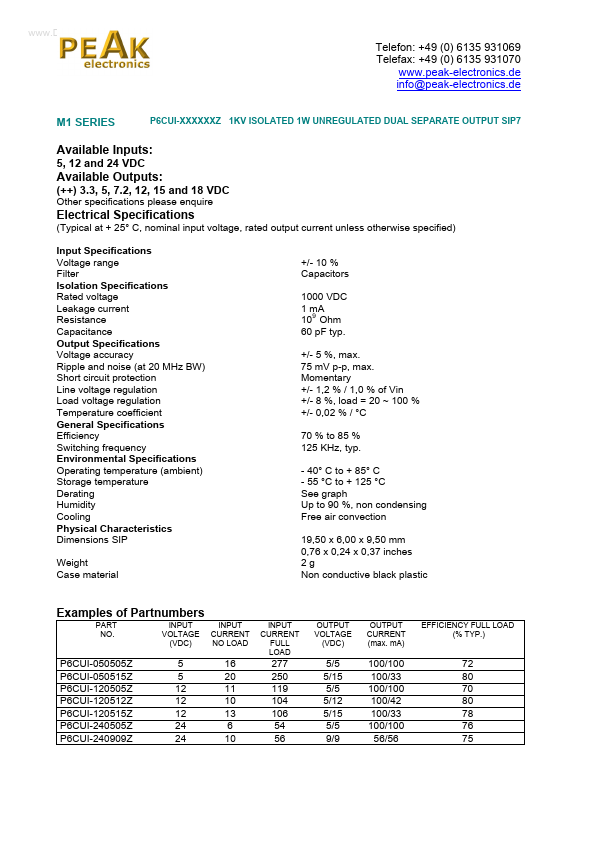

P6CUI-120505Z
..
Telefon: +49 (0) 6135 931069 Telefax: +49 (0) 6135 931070
.peak-electronics.de info@peak-electronics.de
M1 SERIES
P6CUI-XXXXXXZ 1KV ISOLATED 1W UNREGULATED DUAL SEPARATE OUTPUT SIP7
Available Inputs:
5, 12 and 24 VDC
Available Outputs:
(++) 3.3, 5, 7.2, 12, 15 and 18 VDC Other specifications please enquire
Electrical Specifications
(Typical at + 25° C, nominal input voltage, rated output current unless otherwise specified)
Input Specifications Voltage range Filter Isolation Specifications Rated voltage Leakage current Resistance Capacitance Output Specifications Voltage accuracy Ripple and noise (at 20 MHz BW) Short circuit protection Line voltage regulation Load voltage regulation Temperature coefficient General Specifications Efficiency Switching frequency Environmental Specifications Operating temperature (ambient) Storage temperature Derating Humidity Cooling Physical Characteristics Dimensions SIP
Weight Case material
+/- 10 % Capacitors
1000 VDC 1 m A 109 Ohm 60 p F...
