PSD1-A-2405E Datasheet 1W single output DC/DC converters

Manufacturer: PEAK electronics

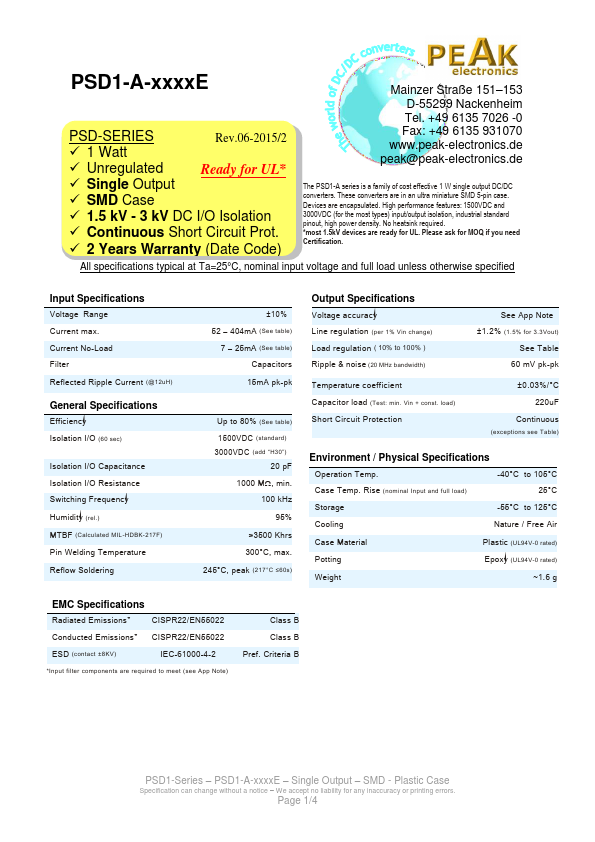

Download the PSD1-A-2405E datasheet PDF. This datasheet also includes the PSD1-A-3R33R3E variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (PSD1-A-3R33R3E-PEAKelectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number PSD1-A-2405E
Manufacturer PEAK electronics
File Size 358.07 KB
Description 1W single output DC/DC converters
Download PSD1-A-2405E Download (PDF)

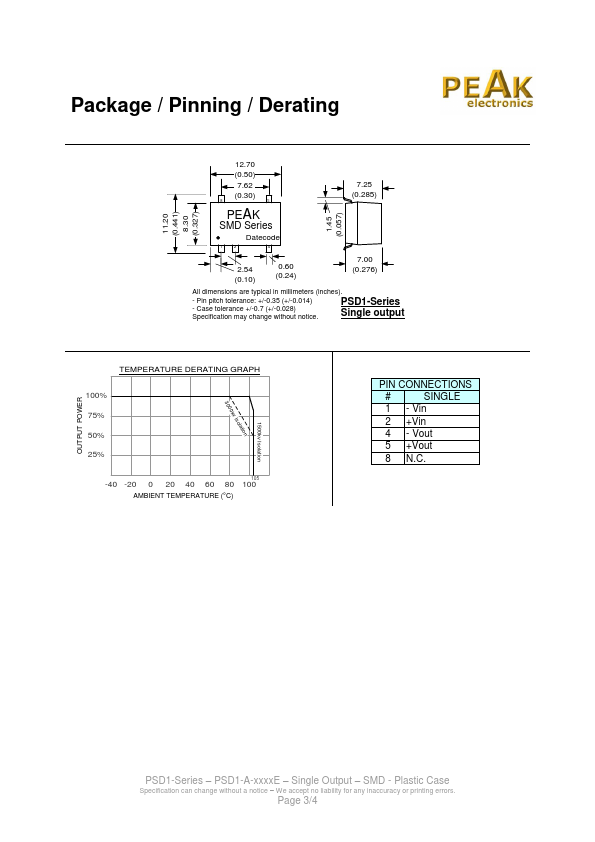

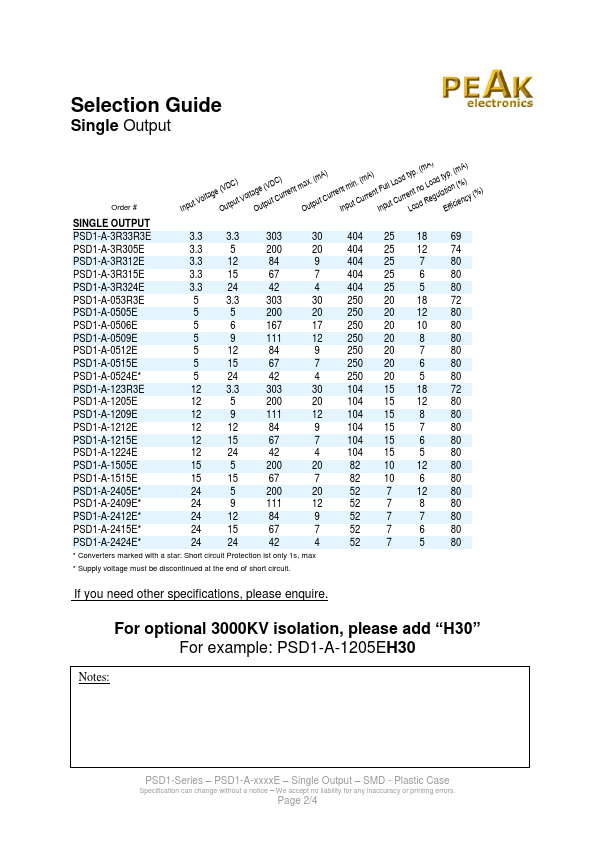

Overview

PSD1-A-xxxxE PSD-SERIES Rev.06-2015/2  1 Watt  Unregulated Ready for UL*  Single Output  SMD Case  1.5 kV - 3 kV DC I/O Isolation  Continuous Short Circuit Prot.

 2 Years Warranty (Date Code) Mainzer Straße 151–153 D-55299 Nackenheim Tel.

+49 6135 7026 -0 Fax: +49 6135 931070 www.peak-electronics.de peak@peak-electronics.de The PSD1-A series is a family of cost effective 1 W single output DC/DC converters.

Key Features

  • 1500VDC and 3000VDC (for the most types) input/output isolation, industrial standard pinout, high power density. No heatsink required.
  • most 1.5kV devices are ready for UL. Please ask for MOQ if you need Certification. All specifications typical at Ta=25°C, nominal input voltage and full load unless otherwise specified Input Specifications Voltage Range Current max. Current No-Load Filter Reflected Ripple Current (@12uH) General Specifications Efficiency Isolation I/O (60 sec) Isolation I.
