PSD1-A-3R315E Datasheet | PEAK electronics

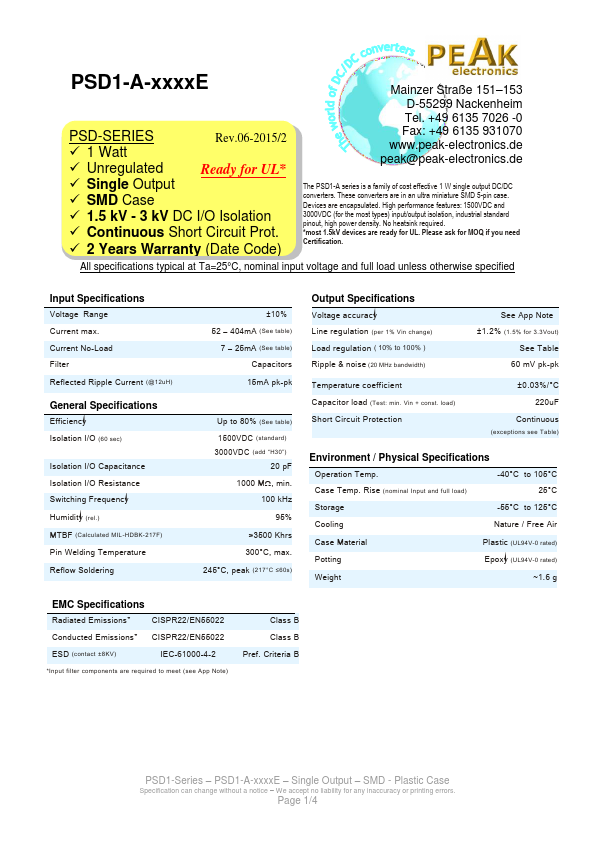

features : 1500VDC and 3000VDC (for the most types) input/output isolation, industrial standard pinout, high power density. No heatsink required. - most 1.5k V devices are ready for UL. Please ask for MOQ if you need Certification. All specifications typical at Ta=25°C, nominal input voltage and full load unless otherwise specified Input Specifications Voltage Range Current max. Current No-Load Filter Reflected Ripple Current (@12u H) General Specifications Efficiency Isolation I/O (60 sec) Isolation I/O Capacitance Isolation I/O Resistance Switching Frequency Humidity (rel.) MTBF (Calculated MIL-HDBK-217F) Pin Welding Temperature Reflow Soldering ±10% 52 - 404m A (See table) - 25m A (See table) Capacitors 15m A pk-pk Up to 80% (See table) 1500VDC (standard) 3000VDC (add “H30”) 20 p F 1000 MΩ, min. 100 k Hz 95% >3500 Khrs 300°C, max. 245°C, peak (217°C ≤60s) Output Specifications Voltage accuracy Line regulation (per 1% Vin change) Load regulation ( 10% to 100% ) Ripple & noise (20 MHz...
