PM Tech PMF412808F
The 4Gb Double-Data-Rate-3 (DDR3(L)) DRAM is a high-speed CMOS SDRAM containing 4,294,967,296 bits. It is internally configured as an octal-bank DRAM.| Part No. | PMF412808F |
|---|---|
| Datasheet | PMF412808F Download |
| Manufacturer | PM Tech |
| Description | 4Gb DDRIII SDRAM |
| Buy | Stock & Price |

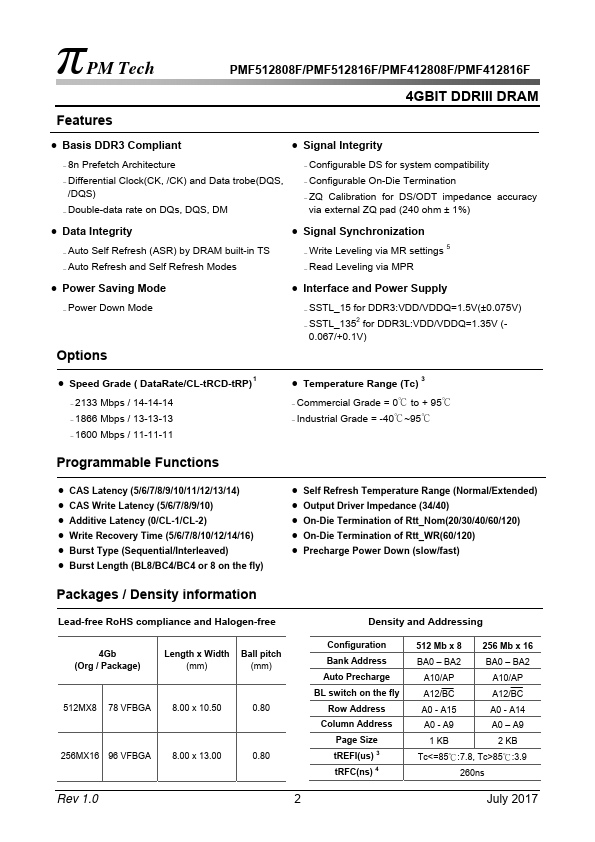

FEATURES
PMF512808F/PMF512816F/PMF412808F/PMF412816F 4GBIT DDRIII DRAM● Basis DDR3 Compliant
● Signal Integrity 8n Prefetch Architecture Differential Clock(CK, /CK) and Data trobe(DQS, /DQS) Double-data rate on DQs, DQS, DM Configurable DS for system compatibility Configurable On-Die Termination ZQ Calibration for DS/ODT impedance accuracy via external ZQ pad (240 ohm ± 1%)
● Data Integrity Auto Self Refresh (ASR) by DRAM built-in TS Auto Refresh and Self Refresh Modes
● Signal Synchronization Write Leveling via MR settings 5 Read Leveling via MPR
● Power Saving Mode
● Interface and Power Supply Power Down Mode Options SSTL_15 for DDR3:VDD/VDDQ=1.5V(±0.075V) SSTL_1352 for DDR3L:VDD/VDDQ=1.35V (0.067/+0.1V)
● Speed Grade ( DataRate/CL-tRCD-tRP) 1 2133 Mbps / 14-14-14 1866 Mbps / 13-13-13 1600 Mbps / 11-11-11
● Temperature Range (Tc) 3 Commercial Grade = 0℃ to + 95℃ Industrial Grade = -40℃~95℃ Programmable Functions
● CAS Latency (5/6/7/8/9/10/11/12/1...
