PRIME_VIEW PD104SL5
LCD Module
| Part No. | PD104SL5 |
|---|---|
| Datasheet | PD104SL5 Download |
| Manufacturer |  PRIME_VIEW |
| Description | LCD Module |
| Buy | Stock & Price |

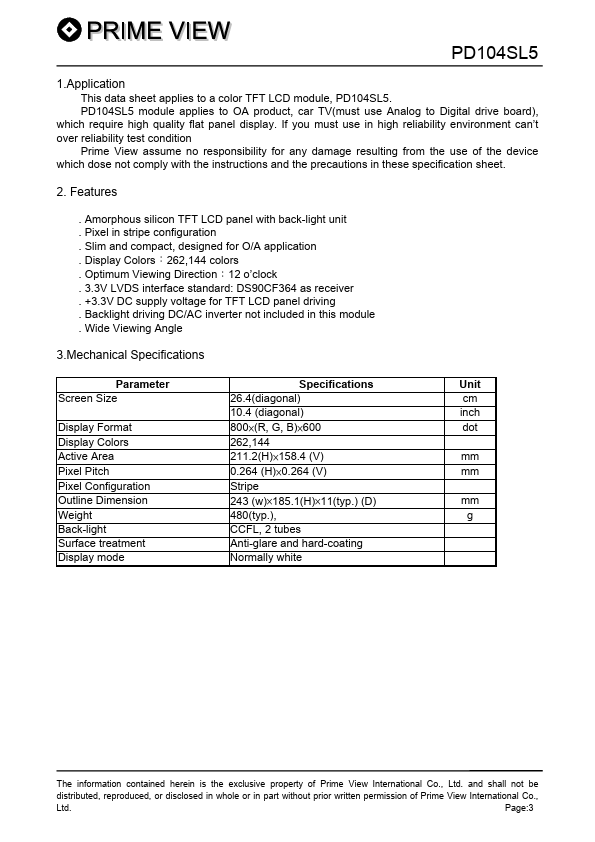

FEATURES
. Amorphous silicon TFT LCD panel with back-light unit . Pixel in stripe configuration . Slim and compact, designed for O/A application . Display ColorsΚ262,144 colors . Optimum Viewing DirectionΚ12 o’clock . 3.3V LVDS interface standard: DS90CF364 as receiver . +3.3V DC supply voltage for TFT LCD panel driving . Backlight driving DC/AC inverter not included in this module . Wide Viewing Angle 3.Mechanical Specifications Parameter Specifications Unit Screen Size 26.4(diagonal) cm 10.4 (diagonal) inch Display Format 800ͪ(R, G, B)ͪ600 dot Display Colors 262,144 Active Area 211.2(H)ͪ158.4 (V) mm Pixel Pitch 0.264 (H)ͪ0.264 (V) mm Pixel Configuration Stripe Outline Dimension 243 (w)Ø185.1(H)Ø11(typ.) (D) mm Weight 480(typ.), g Back-light CCFL, 2 tubes Surface treatment Anti-glare and hard-coating Display mode Normally white The information contained herein is the exclusive property of Prime View International Co., Ltd. and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of Prime View International Co., Ltd.
