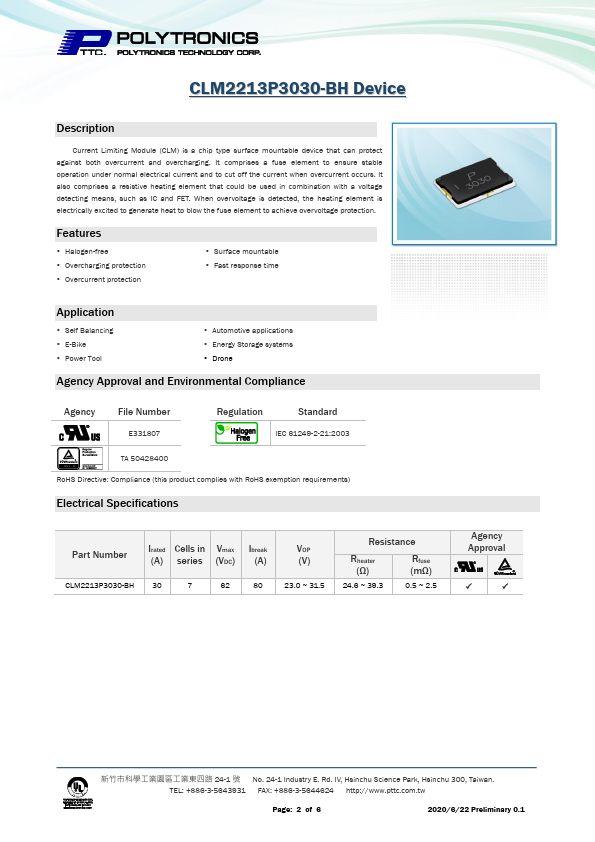

CLM2213P3030-BH
Description
Current Limiting Module (CLM) is a chip type surface mountable device that can protect against both overcurrent and overcharging. It prises a fuse element to ensure stable operation under normal electrical current and to cut off the current when overcurrent occurs. It also prises a resistive heating element that could be used in bination with a voltage detecting means, such as IC and FET. When overvoltage is detected, the heating element is electrically excited to generate heat to blow the fuse element to achieve overvoltage protection.
Features
- Halogen-free
- Overcharging protection
- Overcurrent protection
- Surface mountable
- Fast response time
Application
- Self Balancing
- E-Bike
- Power Tool
- Automotive applications
- Energy Storage systems
- Drone
Agency Approval and Environmental pliance
Agency
File Number
E331807
Regulation
Standard
IEC 61249-2-21:2003
TA 50428400 Ro HS Directive: pliance (this product plies with Ro HS exemption requirements)
Electric...
