BAS19W - SURFACE MOUNT SWITCHING DIODES

Datasheet Summary

Features

Fast switching speed.
Surface mount package Ideally Suited for Automatic insertion.
Electrically Identical to Standard JEDEC.
High Conductance POWER 200 mWatts.

Pan Jit International Inc.

📥 Download Datasheet

Datasheet Details

Part number	BAS19W
Manufacturer	Pan Jit International Inc.
File Size	110.50 KB
Description	SURFACE MOUNT SWITCHING DIODES
Datasheet	BAS19W Datasheet

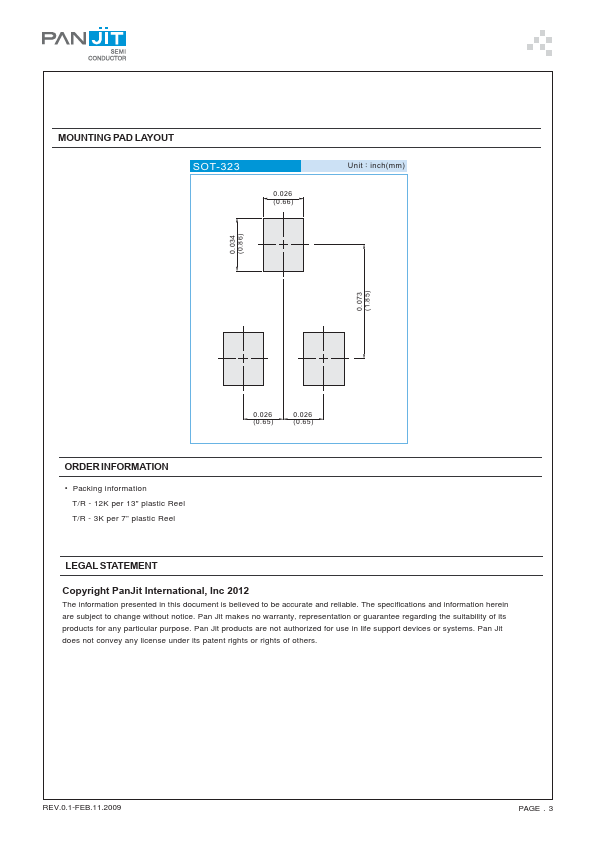

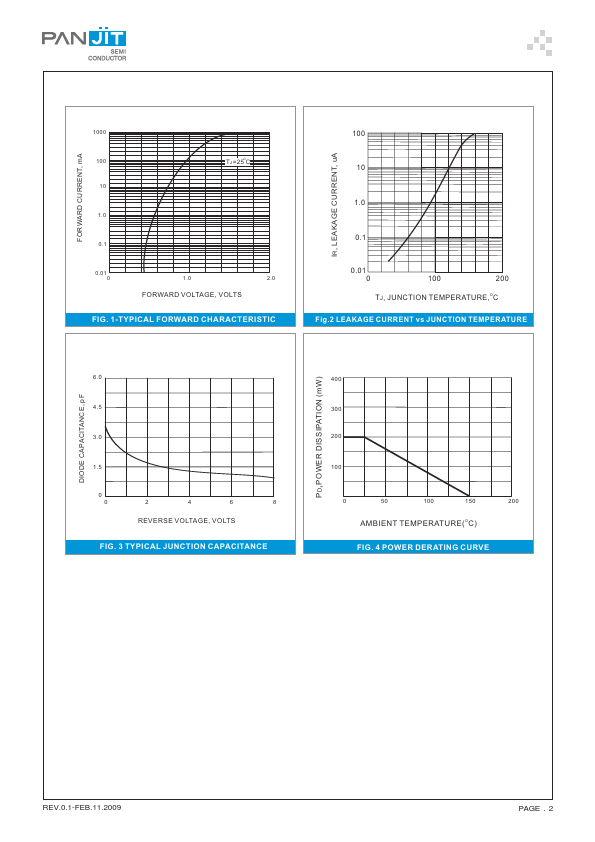

Additional preview pages of the BAS19W datasheet.

📁 Similar Datasheet

BAS19W - Surface Mount Switching Diode (GME)
BAS19W - SURFACE MOUNT SWITCHING DIODE (HITANO)
BAS19W - Plastic-Encapsulate Diodes (WILLAS)
BAS19W - SMD Switching Diode (Formosa MS)
BAS19W - Silicon Epitaxial Planar Diodes (BLUECOLOUR)
BAS19W - SURFACE MOUNT FAST SWITCHING DIODE (Sangdest Microelectronics)
BAS19W - SURFACE MOUNT FAST SWITCHING DIODE (WON-TOP)
BAS19W - SURFACE MOUNT FAST SWITCHING DIODE (Diodes Incorporated)
BAS19W - SURFACE MOUNT FAST SWITCHING DIODE (LITE-ON)
BAS19W - SWITCHING DIODE (JCST)

Other Datasheets by Pan Jit International Inc.

BAS20W - SURFACE MOUNT SWITCHING DIODES

Full PDF Text Transcription

Click to expand full text

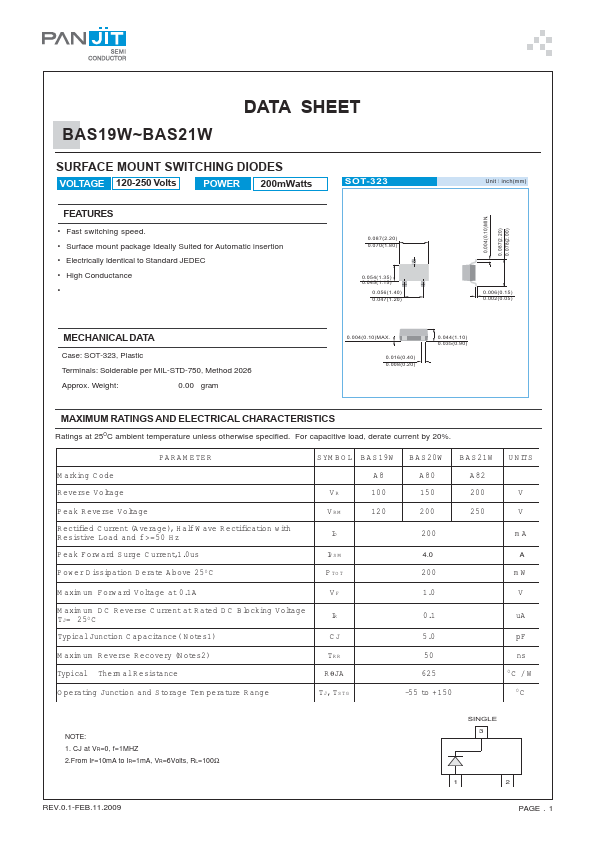

BAS16W, BAS19W, BAS20W, BAS21W SURFACE MOUNT SWITCHING DIODES VOLTAGE 75-200 Volts FEATURES • Fast switching speed. • Surface mount package Ideally Suited for Automatic insertion • Electrically Identical to Standard JEDEC • High Conductance POWER 200 mWatts PACKAGE SOT-323 MECHANICAL DATA Case: SOT-323, Plastic Terminals: Solderable per MIL-STD-202, Method 208 Approx. Weight: 0.008 gram Marking: A6, A8, A80, A82 MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25OC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.

Published: Mar 26, 2005 |
