MBR660
MBR660 is SCHOTTKY BARRIER RECTIFIERS manufactured by PanJit Semiconductor.
- Part of the MBR6100 comparator family.
- Part of the MBR6100 comparator family.

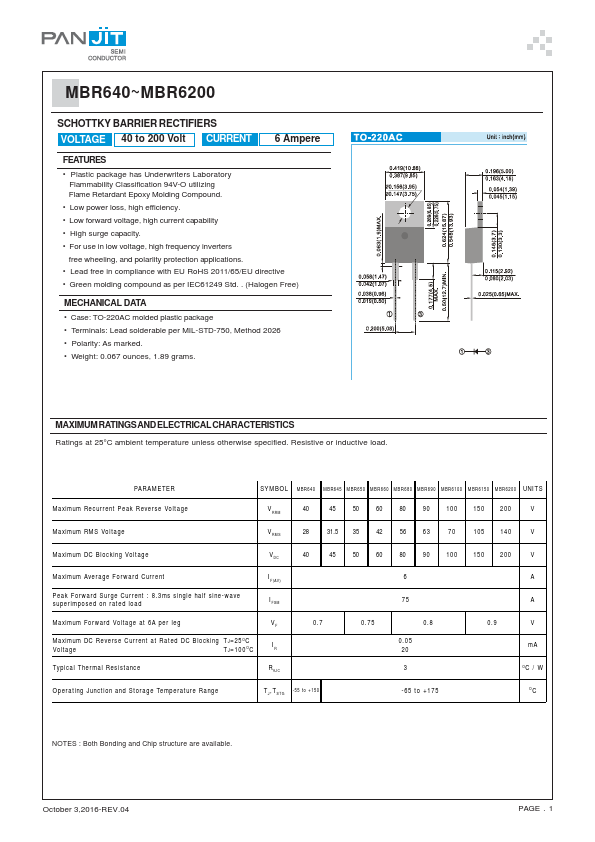

MBR640~MBR6200
SCHOTTKY BARRIER RECTIFIERS VOLTAGE 40 to 200 Volt CURRENT
6 Ampere
Features
- Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding pound.
- Low power loss, high efficiency.
- Low forward voltage, high current capability
- High surge capacity.
- For use in low voltage, high frequency inverters free wheeling, and polarlity protection applications.
- Lead free in pliance with EU Ro HS 2011/65/EU directive
- Green molding pound as per IEC61249 Std. . (Halogen Free)
MECHANICAL DATA
- Case: TO-220AC molded plastic package
- Terminals: Lead solderable per MIL-STD-750, Method 2026
- Polarity: As marked.
- Weight: 0.067 ounces, 1.89 grams.
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Resistive or inductive load.
PA RA M E T E R
SY M BOL MBR640 MBR645 MBR650 MBR660 MBR680 MBR690 MBR6100 MBR6150 MBR6200 UNI TS
Maximum Recurrent Peak Reverse Voltage
V RRM
45 50 60 80 90 100 150 2 00
Maximum RMS Voltage
31.5 35
56 6 3
105 140
Maximum DC Blocking Voltage
45 50 60 80 90 100 150 2 00
Maximum Average Forward Current
I...
