2SB0710A - Silicon PNP Transistor

Download the 2SB0710A datasheet PDF. This datasheet also covers the 2SB710 variant, as both devices belong to the same silicon pnp transistor family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • s.
  • Large collector current IC.
  • Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing 0.40+.
  • 00..0150 3 1 2 1.50.
  • +00..0255 2.8.
  • +00..32 5˚ 0.16+.
  • 00..0160 0.4±0.2 (0.65).
  • Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Unit Collector-base voltage 2SB0710 VCBO.
  • 30 V (Emitter open) 2SB0710A.
  • 60 (0.95) (0.95) 1.9±0.1 2.90+.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (2SB710_PanasonicSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
2SB0710A Silicon PNP epitaxial planer type Transistor Panasonic Semiconductor
2SB0710 Silicon PNP epitaxial planer type Transistor Panasonic Semiconductor
2SB0709A Silicon PNP epitaxial planar type Transistor Panasonic Semiconductor
2SB0766 Silicon PNP epitaxial planer type Transistor Panasonic Semiconductor
2SB0766A Silicon PNP epitaxial planer type Transistor Panasonic Semiconductor

Other Datasheets by Panasonic

Part Number Description
2SB0774 Silicon PNP epitaxial planar type Transistors
2SB0967 Silicon PNP epitaxial planar type power transistor
2SB1169 Power Transistors
2SB1169A Power Transistors
2SB1173 Silicon PNP epitaxial planar type Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

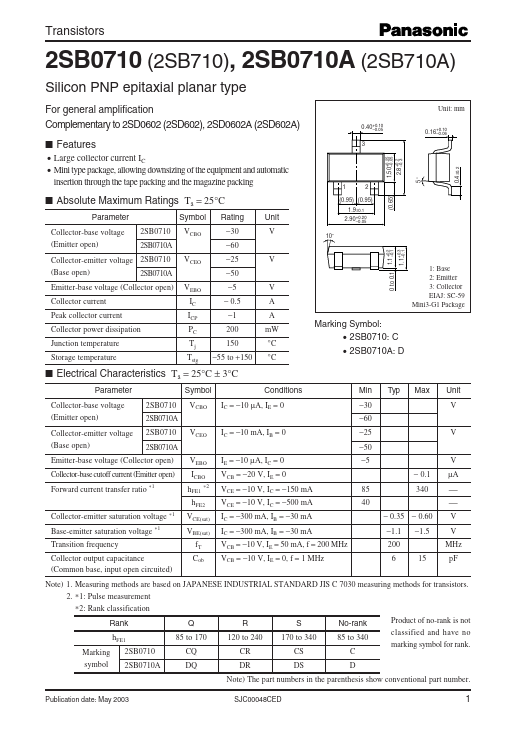

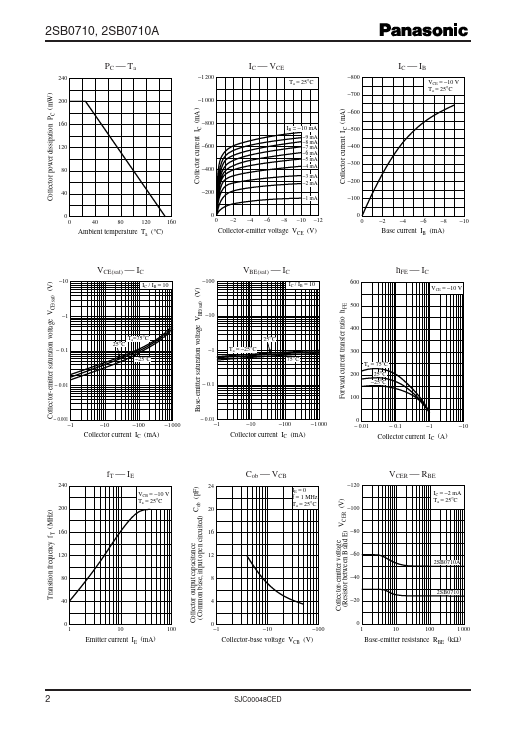

Transistors 2SB0710 (2SB710), 2SB0710A (2SB710A) Silicon PNP epitaxial planar type For general amplification Unit: mm Complementary to 2SD0602 (2SD602), 2SD0602A (2SD602A) ■ Features • Large collector current IC • Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing 0.40+–00..0150 3 1 2 1.50–+00..0255 2.8–+00..32 5˚ 0.16+–00..0160 0.4±0.2 (0.65) ■ Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Unit Collector-base voltage 2SB0710 VCBO −30 V (Emitter open) 2SB0710A −60 (0.95) (0.95) 1.9±0.1 2.90+–00..0250 10˚ 0 to 0.1 1.1–+00..12 1.1–+00..
