A4502C - Amorphous Solar Cells

Datasheet Summary

Features

  • Items 3.1 Open Circuit Voltage :Voc（） 3.2 Short Circuit Current :Isc（） 3.3 Operating Voltage & Operating Current :Vope-Iope () Typical Typical Specifications(.

📥 Download Datasheet

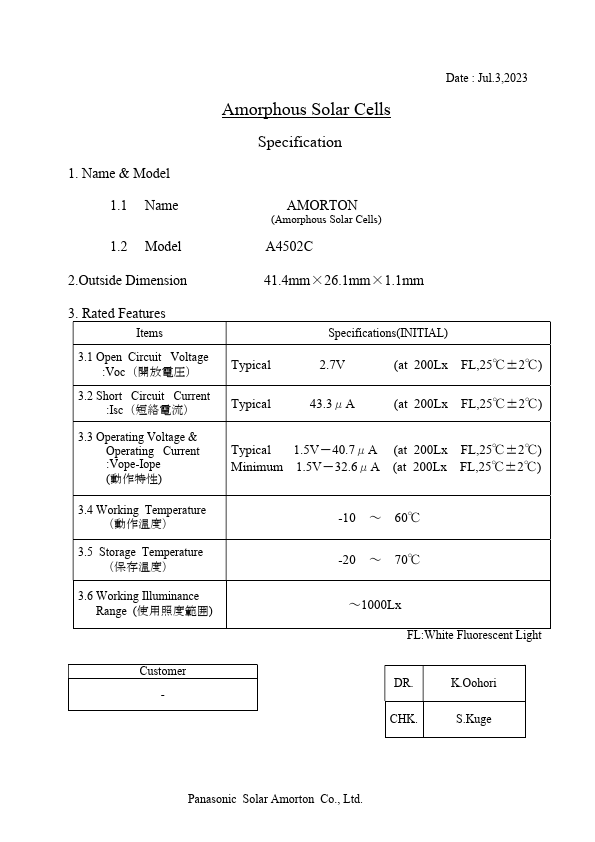

Datasheet preview – A4502C

Datasheet Details

Part number A4502C
Manufacturer Panasonic
File Size 212.84 KB
Description Amorphous Solar Cells
Datasheet download datasheet A4502C Datasheet
Additional preview pages of the A4502C datasheet.

📁 Similar Datasheet

  • A450 - GAS DISCHARGE TUBE (Littelfuse)
  • A45 - 1000 TO 4000 MHz CASCADABLE AMPLIFIER (Tyco Electronics)
  • A45-1 - Cascadable Amplifier (MA-COM)
  • A451 - GENERAL PURPOSE RECTIFIER (Powerex)
  • A451 - GAS DISCHARGE TUBE (Littelfuse)
  • A451PN - GENERAL PURPOSE RECTIFIER (Powerex)
  • A452 - GAS DISCHARGE TUBE (Littelfuse)
  • A4533 - LOW POWER AMPLIFIER (UTC)
  • A4558 - Low Noise Dual OP AMP (The A4558 is a monolithic Integrated Circuit designed for dual operational amplifier.) (AUK corp)
  • A45A - (A44x / A45x) Silicon Rectifiers (Powerex)
Other Datasheets by Panasonic

    Full PDF Text Transcription

    Click to expand full text

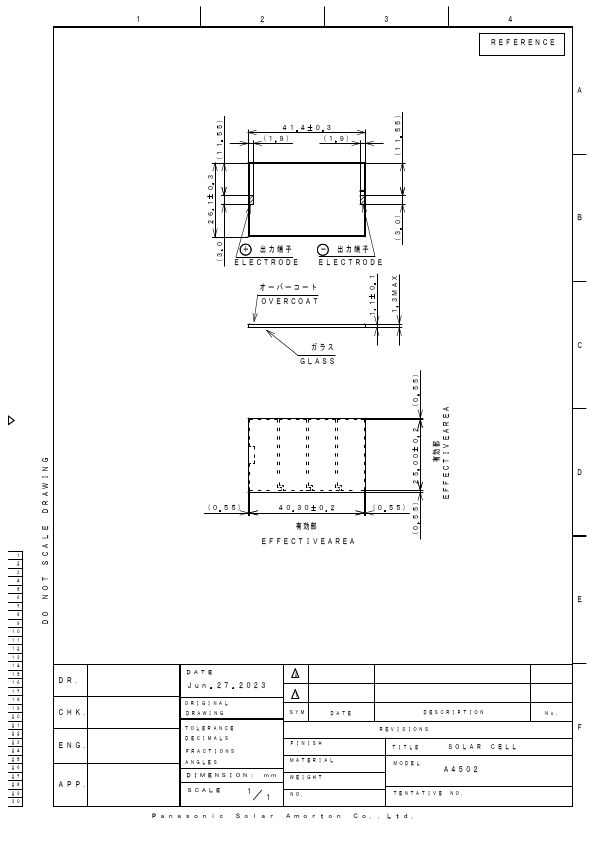

    Amorphous Solar Cells Date : Jul.3,2023 1. Name & Model Specification 1.1 Name 1.2 Model AMORTON (Amorphous Solar Cells) A4502C 2.Outside Dimension 41.4mm×26.1mm×1.1mm 3. Rated Features Items 3.1 Open Circuit Voltage :Voc（） 3.2 Short Circuit Current :Isc（） 3.3 Operating Voltage & Operating Current :Vope-Iope () Typical Typical Specifications(INITIAL) 2.7V (at 200Lx FL,25℃±2℃) 43.3μA (at 200Lx FL,25℃±2℃) Typical 1.5V－40.7μA (at 200Lx FL,25℃±2℃) Minimum 1.5V－32.6μA (at 200Lx FL,25℃±2℃) 3.4 Working Temperature （） 3.5 Storage Temperature （） -10 ～ 60℃ -20 ～ 70℃ 3.6 Working Illuminance Range () ～1000Lx FL:White Fluorescent Light Customer - DR. CHK. K.Oohori S.Kuge Panasonic Solar Amorton Co., Ltd.
