AM-5412C-T datasheet by Panasonic.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | AM-5412C-T |
|---|---|
| Datasheet | AM-5412C-T AM-5412CT Datasheet (PDF) |
| File Size | 480.14 KB |
| Manufacturer | Panasonic |
| Description | Silicon Solar Cell |
|
|

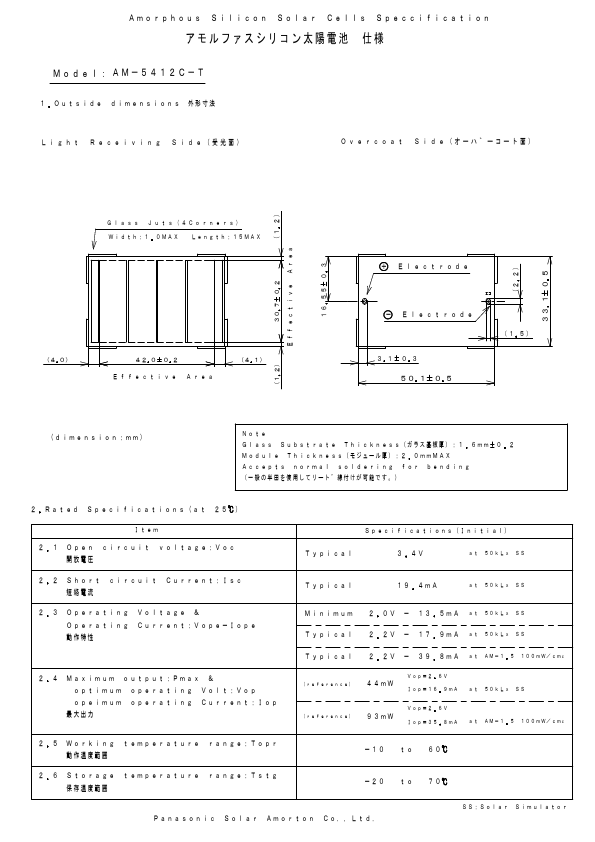

Ａｍｏｒｐｈｏｕｓ Ｓｉｌｉｃｏｎ Ｓｏｌａｒ Ｃｅｌｌｓ Ｓｐｅｃｃｉｆｉｃａｔｉｏｎ アモルファスシリコン太陽電池 仕様 Ｍｏｄｅｌ： ＡＭ－５４１２Ｃ－Ｔ １ Ｏｕｔｓｉｄｅ ｄｉｍｅｎｓｉｏｎｓ 外形寸法 Ｌｉｇｈｔ Ｒｅｃｅｉｖｉｎｇ Ｓｉｄｅ（受光面） Ｏｖｅｒｃｏａｔ Ｓｉｄｅ（オーハ゛ーコート面） （１ ２） （２ ２） ３３ １ ０ ５ Ｇｌａｓｓ Ｊｕｔｓ（４Ｃｏｒｎｅｒｓ） Ｗｉｄｔｈ：１ ０ＭＡＸ Ｌｅｎｇｔｈ：１５ＭＡＸ （４ ０） ４２ ０ ０ ２ Ｅｆｆｅｃｔｉｖｅ Ａｒｅａ （４.
| Brand Logo | Part Number | Description | Other Manufacturers |
|---|---|---|---|
 |
AM-5412 | Solar Cell | Sanyo |
| Part Number | Description |
|---|---|
| AM-5413C-T | Silicon Solar Cell |
| AM-5608C-T | Silicon Solar Cell |
| AM-5610C-T | Silicon Solar Cell |
| AM-5613C-T | Silicon Solar Cell |
| AM-5706C-T | Silicon Solar Cell |
| AM-5710C-T | Silicon Solar Cell |
| AM-5812C-T | Silicon Solar Cell |
| AM-5814C-T | Silicon Solar Cell |
| AM-5815C-T | Silicon Solar Cell |
| AM-5902C-T | Silicon Solar Cell |
