EFTU44R0M03 - Piezoelectric Transformers

Download the EFTU44R0M03 datasheet PDF. This datasheet also covers the EFTU21R203 variant, as both devices belong to the same piezoelectric transformers family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • l Thin and high transfer efficiency of 93% l Lower EMI radiations due to the unique piezoelectric inverter system n Recommended.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (EFTU21R203-Panasonic.pdf) that lists specifications for multiple related part numbers.

Full PDF Text Transcription for EFTU44R0M03 (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for EFTU44R0M03. For precise diagrams, and layout, please refer to the original PDF.

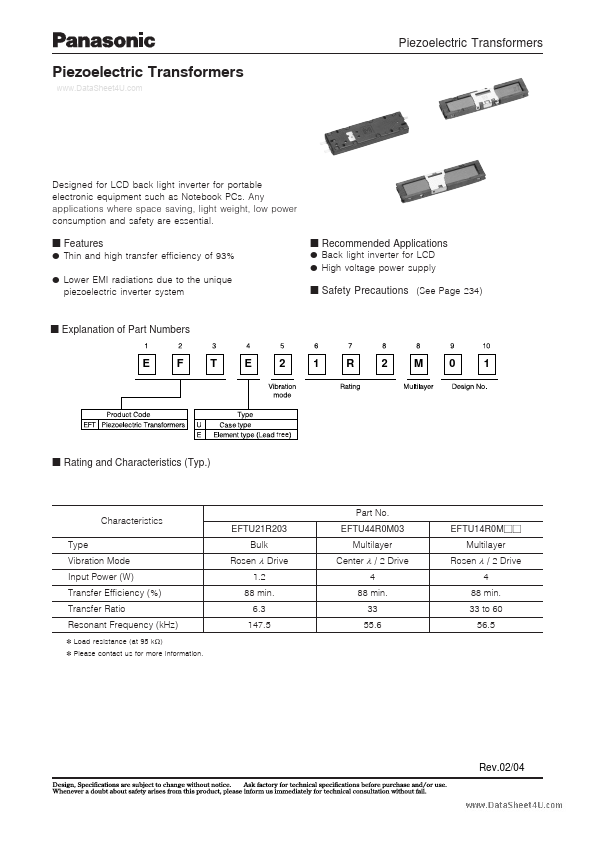

Piezoelectric Transformers www.DataSheet4U.com Piezoelectric Transformers Designed for LCD back light inverter for portable electronic equipment such as Notebook PCs. Any...

View more extracted text
t inverter for portable electronic equipment such as Notebook PCs. Any applications where space saving, light weight, low power consumption and safety are essential. n Features l Thin and high transfer efficiency of 93% l Lower EMI radiations due to the unique piezoelectric inverter system n Recommended Applications l Back light inverter for LCD l High voltage power supply n Safety Precautions (See Page 234) n Explanation of Part Numbers EFT E 2 1R 2M0 1 free n Rating and Characteristics (Typ.) Characteristics Type Vibration Mode Input Power (W) Transfer Efficiency (%) Transfer Ratio Resonant Frequency (kHz) ] Load resista
