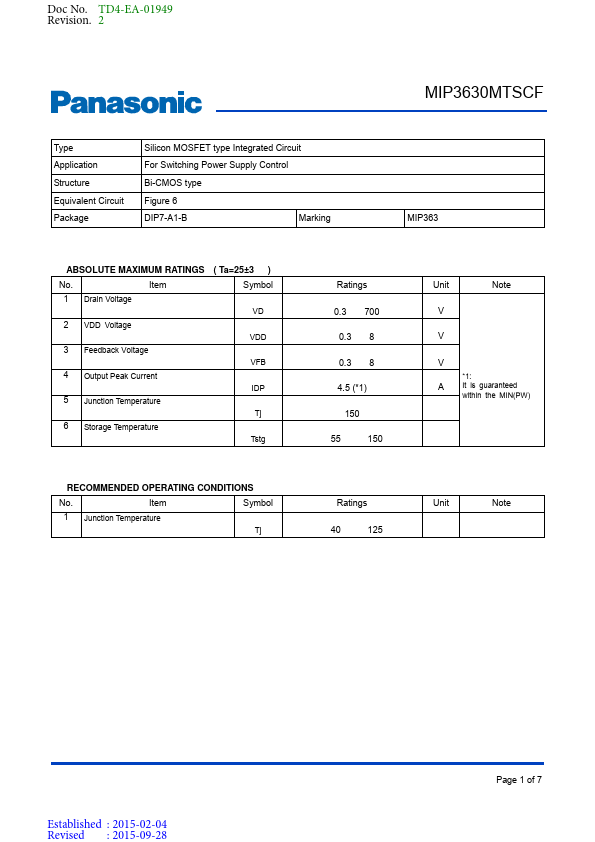

Doc No. TD4-EA-01949 Revision. 2 Product Standards MIP3630MTSCF Type Silicon MOSFET type Integrated Circuit Application For Switching Power Supply Control Structure Bi-CMOS type Equivalent Circuit Figure 6 Package DIP7-A1-B Marking    ̖ɽABSOLUTE MAXIMUM RATINGS No. Item 1 Drain Voltage 2 VDD Voltage 3 Feedback Voltage 4 Output Peak Current 5 Junction Temperature 6 Storage Temperature ( Ta=25±3ˆ) Symbol VD VDD VFB IDP Tj Tstg Ratings ʵ0.3 ʙ 700 ʵ0.3 ʙ 8 ʵ0.3 ʙ 8 4.5 (*1) 150 ʵ55 ʙ ʴ150 MIP363 Unit Note V V V *1: A It is guaranteed within the MIN(PW) ˆ ˆ ̗ɽRECOMMENDED OPERATING CONDITIONS No. Item Symbol 1 Junction Temperature Tj Ratings  ʵ40 ʙ ʴ125 Unit  ˆ Note Established : 2015-02-04 Revised : 2015-09-28 Page 1 of 7 Doc No.
