A-391I-AHB-W
A-391I-AHB-W is 0.39 INCH SINGLE DIGIT DISPLAY manufactured by Para Light Electronics.
- Part of the A-391IAHBW comparator family.
- Part of the A-391IAHBW comparator family.

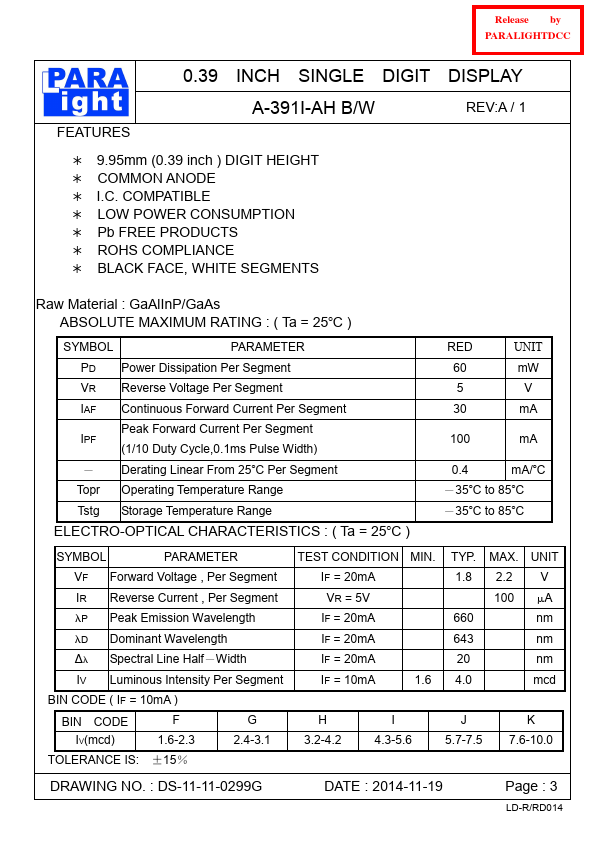

FEATURES
A-391I-AH B/W
REV:A / 1
9.95mm (0.39 inch ) DIGIT HEIGHT MON ANODE I.C. PATIBLE LOW POWER CONSUMPTION Pb FREE PRODUCTS ROHS PLIANCE BLACK FACE, WHITE SEGMENTS
Raw Material : Ga Al In P/Ga As ABSOLUTE MAXIMUM RATING : ( Ta = 25°C )
SYMBOL
PARAMETER
PD Power Dissipation Per Segment
VR Reverse Voltage Per Segment
IAF Continuous Forward Current Per Segment
Peak Forward Current Per Segment IPF
(1/10 Duty Cycle,0.1ms Pulse Width)
－ Derating Linear From 25°C Per Segment
Topr Operating Temperature Range
Tstg Storage Temperature Range
ELECTRO-OPTICAL CHARACTERISTICS : ( Ta = 25°C )
RED 60 5 30
UNIT m W
V m A
100 m A
0.4 m A/°C
－35°C to 85°C
－35°C to 85°C
SYMBOL
PARAMETER
VF Forward Voltage , Per Segment
IR Reverse Current , Per Segment
λP Peak Emission Wavelength
λD Dominant Wavelength
∆λ Spectral Line Half－Width
IV Luminous Intensity Per Segment
BIN CODE ( IF = 10m A )
BIN CODE IV(mcd)
F 1.6-2.3
G 2.4-3.1
TOLERANCE IS: ±15％
TEST CONDITION MIN.
IF = 20m A
VR = 5V
IF = 20m...
